elk 9.2.4 安装部署

本地个人测试使用。

usermod -aG sudo test

注意容器间的网络是否互通，比如elk_default与bridge。
注意在es中创建logstash和kibana的用户，并且注意logstash要使用两个用户，一个logstash_user(有创建索引的权限)，一个logstash_system(保留用户，无创建索引权限)与es通信。
注意ssl证书。
chatgpt不可信。

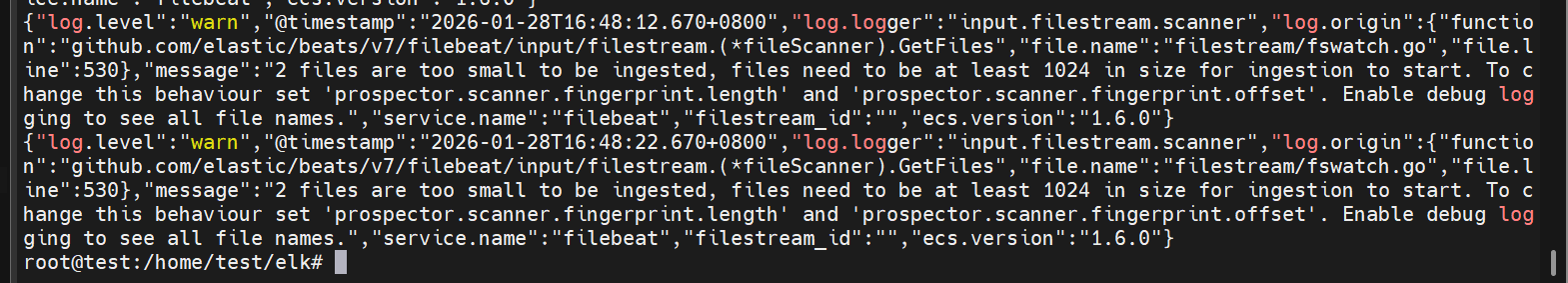

日志至少1024字节，不然filebeat读不到。

ubuntu 24 live server

思路

Elasticsearch + Logstash + Kibana：这种架构，通过Logstash收集日志，Elasticsearch分析日志，然后在Kibana中展示数据。这种架构虽然是官网介绍里的方式，但是在生产中却很少使用。
Elasticsearch + Logstash + filebeat + Kibana：与上一种架构相比，增加了一个filebeat模块。filebeat是一个轻量的日志收集代理，用来部署在客户端，优势是消耗非常少的资源(较logstash)就能够收集到日志。所以在生产中，往往会采取这种架构方式，但是这种架构有一个缺点，当logstash出现故障，会造成日志的丢失。
Elasticsearch + Logstash + filebeat + redis + Kibana：此种架构是上面架构的完善版，通过增加中间件，来避免数据的丢失。当Logstash出现故障，日志还是存在中间件中，当Logstash再次启动，则会读取中间件中积压的日志。

所以，我们此次选择Elasticsearch + Logstash + filebeat + Kibana架构来进行演示。

静态路由

vmware 如果nat ping不通百度，尝试手动设置dns

sudo nano /etc/netplan/01-netcfg.yaml

network:
  version: 2
  renderer: networkd
  ethernets:
    ens33:
      dhcp4: no
      addresses:
        - 192.168.201.134/24
      nameservers:
        addresses: [8.8.8.8, 1.1.1.1]
      routes:
        - to: 0.0.0.0/0
          via: 192.168.201.2
          metric: 100

ctrl+o ，回车保存文件

ctrl+X 退出

运行sudo netplan apply

docker安装

sudo apt remove $(dpkg --get-selections docker.io docker-compose docker-compose-v2 docker-doc podman-docker containerd runc | cut -f1)
# Add Docker's official GPG key:
sudo apt update
sudo apt install ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

# Add the repository to Apt sources:
sudo tee /etc/apt/sources.list.d/docker.sources <

elasticsearch&kibana安装
用官方的镜像来安装多节点集群e&k

test@test:~$ mkdir elk
test@test:~$ cd elk
nano .env
# Password for the 'elastic' user (at least 6 characters)
# 必须包含数字字母，不能包含特殊字符
ELASTIC_PASSWORD=Admin123

# Password for the 'kibana_system' user (at least 6 characters)
KIBANA_PASSWORD=Admin123

# logstash_system
LOGSTASH_PASSWORD=Admin123

# Version of Elastic products
STACK_VERSION=9.2.4

# Set the cluster name
CLUSTER_NAME=docker-cluster

# Set to 'basic' or 'trial' to automatically start the 30-day trial
LICENSE=basic
#LICENSE=trial

# Port to expose Elasticsearch HTTP API to the host
# 暴露给外部主机
ES_PORT=9200
#ES_PORT=127.0.0.1:9200

# Port to expose Kibana to the host
KIBANA_PORT=5601
#KIBANA_PORT=80

# Increase or decrease based on the available host memory (in bytes)
MEM_LIMIT=1073741824

# Project namespace (defaults to the current folder name if not set)
#COMPOSE_PROJECT_NAME=myproject

# KIBANA_ENCRYTION_KEY
# 生成32位随机密钥
# dd if=/dev/urandom bs=32 count=1 | base64
KIBANA_ENCRYTION_KEY=8y8zNLQkmSzJzQNfeBzzD3+CFGAofKAiUHf1PPm0+fU=


nano docker-compose.yml
配置了一个包含三个节点（es01, es02, es03）的 Elasticsearch 集群。这些节点通过 SSL 安全通信，且依赖相互发现来构建集群。Kibana：提供一个 Web 界面来与 Elasticsearch 集群交互。Kibana 配置了与 Elasticsearch 的安全连接。
#新建kibana和logstash用户
version: "2.2"

services:
  setup:
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
    user: "0"
    command: >
      bash -c '
        if [ x${ELASTIC_PASSWORD} == x ]; then
          echo "Set the ELASTIC_PASSWORD environment variable in the .env file";
          exit 1;
        elif [ x${KIBANA_PASSWORD} == x ]; then
          echo "Set the KIBANA_PASSWORD environment variable in the .env file";
          exit 1;
        fi;
        if [ ! -f config/certs/ca.zip ]; then
          echo "Creating CA";
          bin/elasticsearch-certutil ca --silent --pem -out config/certs/ca.zip;
          unzip config/certs/ca.zip -d config/certs;
        fi;
        if [ ! -f config/certs/certs.zip ]; then
          echo "Creating certs";
          echo -ne
          "instances:
"
          "  - name: es01
"
          "    dns:
"
          "      - es01
"
          "      - localhost
"
          "    ip:
"
          "      - 127.0.0.1
"
          "  - name: es02
"
          "    dns:
"
          "      - es02
"
          "      - localhost
"
          "    ip:
"
          "      - 127.0.0.1
"
          "  - name: es03
"
          "    dns:
"
          "      - es03
"
          "      - localhost
"
          "    ip:
"
          "      - 127.0.0.1
"
          > config/certs/instances.yml;
          bin/elasticsearch-certutil cert --silent --pem -out config/certs/certs.zip --in config/certs/instances.yml --ca-cert config/certs/ca/ca.crt --ca-key config/certs/ca/ca.key;
          unzip config/certs/certs.zip -d config/certs;
        fi;
        echo "Setting file permissions"
        chown -R root:root config/certs;
        find . -type d -exec chmod 750 {} ;;
        find . -type f -exec chmod 640 {} ;;
        echo "Waiting for Elasticsearch availability";
        until curl -s --cacert config/certs/ca/ca.crt https://es01:9200 | grep -q "missing authentication credentials"; do sleep 30; done;
        echo "Setting kibana_system password";
        until curl -s -X POST --cacert config/certs/ca/ca.crt -u "elastic:${ELASTIC_PASSWORD}" -H "Content-Type: application/json" https://es01:9200/_security/user/kibana_system/_password -d "{"password":"${KIBANA_PASSWORD}"}" | grep -q "^{}"; do sleep 10; done;

        until curl -s -X POST --cacert config/certs/ca/ca.crt -u "elastic:${ELASTIC_PASSWORD}" -H "Content-Type: application/json" https://es01:9200/_security/user/logstash_system/_password -d "{"password":"${LOGSTASH_PASSWORD}"}" | grep -q "^{}"; do sleep 5; done;

        echo "All done!";
      '

    healthcheck:
      test: ["CMD-SHELL", "[ -f config/certs/es01/es01.crt ]"]
      interval: 1s
      timeout: 5s
      retries: 120

  es01:
    depends_on:
      setup:
        condition: service_healthy
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
      - esdata01:/usr/share/elasticsearch/data
    ports:
      - ${ES_PORT}:9200
    environment:
      - node.name=es01
      - cluster.name=${CLUSTER_NAME}
      - cluster.initial_master_nodes=es01,es02,es03
      - discovery.seed_hosts=es02,es03
      - ELASTIC_PASSWORD=${ELASTIC_PASSWORD}
      - bootstrap.memory_lock=true
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=certs/es01/es01.key
      - xpack.security.http.ssl.certificate=certs/es01/es01.crt
      - xpack.security.http.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.key=certs/es01/es01.key
      - xpack.security.transport.ssl.certificate=certs/es01/es01.crt
      - xpack.security.transport.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.verification_mode=certificate
      - xpack.license.self_generated.type=${LICENSE}
      - xpack.ml.use_auto_machine_memory_percent=true
    mem_limit: ${MEM_LIMIT}
    ulimits:
      memlock:
        soft: -1
        hard: -1
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s --cacert config/certs/ca/ca.crt https://localhost:9200 | grep -q 'missing authentication credentials'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

  es02:
    depends_on:
      - es01
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
      - esdata02:/usr/share/elasticsearch/data
    environment:
      - node.name=es02
      - cluster.name=${CLUSTER_NAME}
      - cluster.initial_master_nodes=es01,es02,es03
      - discovery.seed_hosts=es01,es03
      - ELASTIC_PASSWORD=${ELASTIC_PASSWORD}
      - bootstrap.memory_lock=true
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=certs/es02/es02.key
      - xpack.security.http.ssl.certificate=certs/es02/es02.crt
      - xpack.security.http.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.key=certs/es02/es02.key
      - xpack.security.transport.ssl.certificate=certs/es02/es02.crt
      - xpack.security.transport.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.verification_mode=certificate
      - xpack.license.self_generated.type=${LICENSE}
      - xpack.ml.use_auto_machine_memory_percent=true
    mem_limit: ${MEM_LIMIT}
    ulimits:
      memlock:
        soft: -1
        hard: -1
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s --cacert config/certs/ca/ca.crt https://localhost:9200 | grep -q 'missing authentication credentials'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

  es03:
    depends_on:
      - es02
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
      - esdata03:/usr/share/elasticsearch/data
    environment:
      - node.name=es03
      - cluster.name=${CLUSTER_NAME}
      - cluster.initial_master_nodes=es01,es02,es03
      - discovery.seed_hosts=es01,es02
      - ELASTIC_PASSWORD=${ELASTIC_PASSWORD}
      - bootstrap.memory_lock=true
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=certs/es03/es03.key
      - xpack.security.http.ssl.certificate=certs/es03/es03.crt
      - xpack.security.http.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.key=certs/es03/es03.key
      - xpack.security.transport.ssl.certificate=certs/es03/es03.crt
      - xpack.security.transport.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.verification_mode=certificate
      - xpack.license.self_generated.type=${LICENSE}
      - xpack.ml.use_auto_machine_memory_percent=true
    mem_limit: ${MEM_LIMIT}
    ulimits:
      memlock:
        soft: -1
        hard: -1
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s --cacert config/certs/ca/ca.crt https://localhost:9200 | grep -q 'missing authentication credentials'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

  kibana:
    depends_on:
      es01:
        condition: service_healthy
      es02:
        condition: service_healthy
      es03:
        condition: service_healthy
    image: docker.elastic.co/kibana/kibana:${STACK_VERSION}
    volumes:
      - certs:/usr/share/kibana/config/certs
      - kibanadata:/usr/share/kibana/data
    ports:
      - ${KIBANA_PORT}:5601
    environment:
      - SERVERNAME=kibana
      - ELASTICSEARCH_HOSTS=https://es01:9200
      - ELASTICSEARCH_USERNAME=kibana_system
      - ELASTICSEARCH_PASSWORD=${KIBANA_PASSWORD}
      - ELASTICSEARCH_SSL_CERTIFICATEAUTHORITIES=config/certs/ca/ca.crt
      - I18N_LOCALE=zh-CN
      - KIBANA_ENCRYPTED_SAVED_OBJECTS_ENCRYPTION_KEY=YOUR_GENERATED_ENCRYPTION_KEY=${KIBANA_ENCRYTION_KEY}
    mem_limit: ${MEM_LIMIT}
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s -I http://localhost:5601 | grep -q 'HTTP/1.1 302 Found'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

volumes:
  certs:
    driver: local
  esdata01:
    driver: local
  esdata02:
    driver: local
  esdata03:
    driver: local
  kibanadata:
    driver: local

docker-compose up -d

#寻找第一次启动的fingerprint
docker logs elk_es01_1


docker-compose down
# 停止并删除容器，网络，卷
docker-compose down -v

https://192.168.201.134:9200/
elastic
Admin123

http://192.168.201.134:5601/
elastic
Admin123


logstash安装
Logstash是数据收集处理引擎，支持动态的从各种数据源搜集数据，并对数据进行过滤、分析、丰富、统一格式等操作，然后存储以供后续使用。首先，我们在容器中安装logstash，注意版本号的一致性。

https://www.elastic.co/docs/reference/logstash/docker-config
sodu su
docker pull docker.elastic.co/logstash/logstash:9.2.4

cd /home/test/elk
mkdir -p logstash
sudo chown -R 1000:1000 logstash
chmod -R 777 logstash


docker run --rm -it
  -d
  --name logstash
  -p 9600:9600
  -p 5044:5044
  docker.elastic.co/logstash/logstash:9.2.4
将容器内的文件复制到主机上的./logstash/目录下
docker cp logstash:/usr/share/logstash/config ./logstash/
docker cp logstash:/usr/share/logstash/pipeline ./logstash/

mkdir ./elasticsearch
sudo chown -R 1000:1000 ./elasticsearch
docker ps
# elk_es01_1
docker cp elk_es01_1:/usr/share/elasticsearch/config ./elasticsearch/
docker cp elk_es01_1:/usr/share/elasticsearch/data ./elasticsearch/
docker cp elk_es01_1:/usr/share/elasticsearch/plugins ./elasticsearch/
docker cp elk_es01_1:/usr/share/elasticsearch/logs ./elasticsearch/

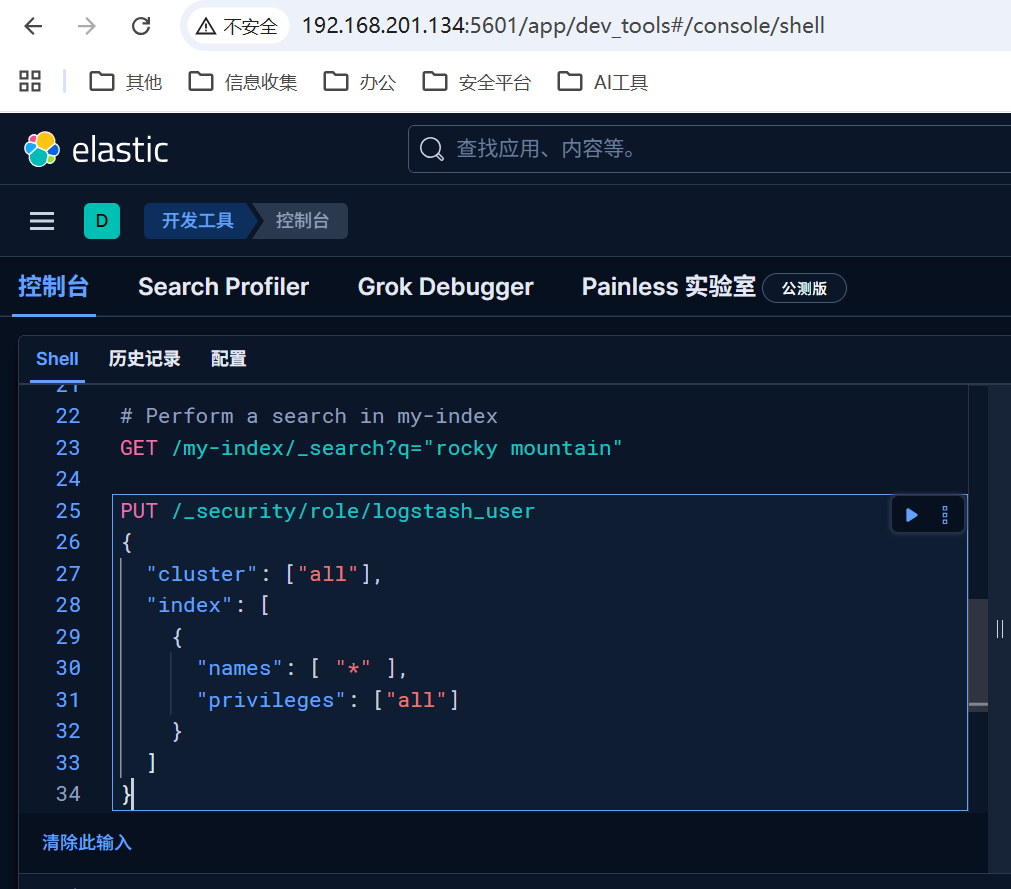

在kibana开发工具-控制台中
#创建角色并分配权限
PUT /_security/role/logstash_manager
{
  "cluster": ["manage_index_templates", "manage", "all"],
  "index": [
    {
      "names": [ "*" ],
      "privileges": ["write", "create_index", "manage"]
    }
  ]
}

# 创建新用户并分配角色
POST /_security/user/logstash_user
{
  "password": "Admin123",
  "roles": ["logstash_manager"],
  "full_name": "Logstash User",
  "email": "logstash_user@example.com"
}


查看es01网络可知es01在elk_default网络上，而logstash通常会在bridge网络上
docker inspect elk_es01_1
 "Networks": {
                "elk_default": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": [
                        "8ef69f588d80",
                        "es01"
                    ],
                    "DriverOpts": null,
                    "GwPriority": 0,
                    "NetworkID": "dff9f597e7a4e23237bd18573fd4ba1d7f02265c0198b0cd65dab4a7e6eae011",
                    "EndpointID": "c678cb95fc2fd40037043b1b4f1ae2ab84321e470b9eae010a929be279481f50",
                    "Gateway": "172.18.0.1",
                    "IPAddress": "172.18.0.3",
                    "MacAddress": "e2:b8:a7:00:fa:ca",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "DNSNames": [
                        "elk_es01_1",
                        "8ef69f588d80",
                        "es01"
                    ]
                }
            }
        },


#查看es01,es02,es03的ip
root@test:/home/test/elk# docker inspect -f '{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}' elk_es01_1
# 172.18.0.3
# 172.18.0.4
# 172.18.0.5

#提取指纹
openssl x509 -in ./logstash/config/certs/ca/ca.crt -noout -fingerprint -sha256
#sha256 Fingerprint=32:A1:A2:24:D2:EA:05:53:A3:40:87:FF:79:42:21:41:B7:5A:56:E9:9E:71:04:9C:4E:33:81:11:54:15:BD:44



nano ./logstash/config/logstash.yml

api.http.host: "0.0.0.0"
xpack.monitoring.enabled: true
xpack.monitoring.elasticsearch.hosts: [ "https://es01:9200" ]
xpack.monitoring.elasticsearch.username: "logstash_system"
xpack.monitoring.elasticsearch.password: "Admin123"
xpack.monitoring.elasticsearch.ssl.certificate_authority: "/usr/share/logstash/config/certs/ca/ca.crt"
#xpack.monitoring.elasticsearch.ssl.ca_trusted_fingerprint: "32A1A224D2EA0553A34087FF79422141B75A56E99E71049C4E3381115415BD44"
xpack.monitoring.allow_legacy_collection: true

nano ./logstash/pipeline/logstash.conf

input {
  beats {
    port => 5044
    ssl_enabled => false
  }
}


filter {
  date {
    match => [ "@timestamp", "yyyy-MM-dd HH:mm:ss Z" ]
  }
  mutate {
    remove_field => ["@version", "agent", "cloud", "host", "input", "log", "tags", "_index", "_source", "ecs", "event"]
  }
}


output {
  elasticsearch {
    hosts => ["https://es01:9200"]
    index => "server-%{+YYYY.MM.dd}"
    ssl_enabled => true
    ssl_verification_mode => "full"
    ssl_certificate_authorities => "/usr/share/logstash/config/certs/ca/ca.crt"
    #ca_trusted_fingerprint => "32A1A224D2EA0553A34087FF79422141B75A56E99E71049C4E3381115415BD44"
    user => "logstash_user"
    password => "Admin123"
  }
}

删除原本的logstash再装，需要指定网络，不然无法与es通信
docker rm -f logstash

# 指定网络
docker run -it
    -d
    --name logstash
    --network elk_default
    -p 9600:9600
    -p 5044:5044
    -v /home/test/elk/logstash/config:/usr/share/logstash/config
    -v /home/test/elk/logstash/pipeline:/usr/share/logstash/pipeline
    docker.elastic.co/logstash/logstash:9.2.4

docker network connect bridge logstash
docker logs -f logstash
docker exec -it  logstash /bin/bash




Filebeat安装
Filebeat是一个轻量级数据收集引擎，相对于Logstash所占用的系统资源来说，Filebeat 所占用的系统资源几乎是微乎及微，主要是为了解决logstash数据丢失的场景。首先，在Docker中安装Filebeat镜像。

mkdir ./log
mkdir ./log/log
mkdir ./log/log/log

docker pull docker.elastic.co/beats/filebeat:9.2.4



docker run --rm -it
    -d
    --name filebeat
    -e TZ=Asia/Shanghai
    docker.elastic.co/beats/filebeat:9.2.4
    filebeat -e  -c /usr/share/filebeat/filebeat.yml
拷贝一下
mkdir ./filebeat
sudo chown -R 1000:1000 ./filebeat
sudo chmod -R 777 /home/test/elk/filebeat
chmod go-w /home/test/elk/filebeat/
chmod go-w /home/test/elk/filebeat/filebeat.yml


docker cp filebeat:/usr/share/filebeat/filebeat.yml /home/test/elk/filebeat/
docker cp filebeat:/usr/share/filebeat/data ./filebeat/
docker cp filebeat:/usr/share/filebeat/logs ./filebeat/
修改一下配置
docker inspect -f '{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}' logstash
# docker里logstash的地址 172.18.0.2

nano ./filebeat/filebeat.yml

filebeat.config:
  modules:
    path: ${path.config}/modules.d/*.yml
    reload.enabled: false

processors:
  - add_cloud_metadata: ~
  - add_docker_metadata: ~

output.logstash:
  enabled: true
  # The Logstash hosts
  hosts: ["172.18.0.2:5044"]

filebeat.inputs:
- type: filestream
  enabled: true
  paths:
    - /usr/share/filebeat/target/*.log
    # 这个路径是需要收集的日志路径，是docker容器中的路径
  scan_frequency: 10s
  exclude_lines: ['HEAD']
  exclude_lines: ['HTTP/1.1']
  multiline.pattern: '^[[:space:]]+(at|.{3})|Exception|捕获异常'
  multiline.negate: false
  multiline.match: after

#output.elasticsearch:
#  hosts: '${ELASTICSEARCH_HOSTS:elasticsearch:9200}'
#  username: '${ELASTICSEARCH_USERNAME:}'
#  password: '${ELASTICSEARCH_PASSWORD:}'

docker rm -f filebeat

docker run -it
    -d
    --name filebeat
    --network elk_default
    -e TZ=Asia/Shanghai
    -v /home/test/elk/log:/usr/share/filebeat/target
    -v /home/test/elk/filebeat/filebeat.yml:/usr/share/filebeat/filebeat.yml
    -v /home/test/elk/filebeat/data:/usr/share/filebeat/data
  -v /home/test/elk/filebeat/logs:/usr/share/filebeat/logs
    docker.elastic.co/beats/filebeat:9.2.4
    filebeat -e  -c /usr/share/filebeat/filebeat.yml

#连接第二个网络
docker network connect bridge filebeat
docker logs logstash  | grep 5044
docker exec -it filebeat /bin/bash
bash-5.1$ filebeat test output

-v /home/test/elk/log:/usr/share/filebeat/target 是需要收集的日志记录，挂载到容器中

日志最少1024字节
nano test.sh
chmod +x ./test.sh
./test.sh

#!/bin/bash

# 设置日志文件路径
LOG_FILE="/home/test/elk/log/999.log"

# 清空现有日志文件
> $LOG_FILE

# 写入报错信息，直到文件大小达到2048字节
ERROR_MESSAGE="2026-01-28 10:01:00 +0000 Exception: 捕获异常: ERROR: Something went wrong! This is an error message. Please check the system configuration and try again.
"

count_t=1
# 使用循环填充日志文件，直到它达到2048字节
while [ $(wc -c <"$LOG_FILE") -lt 2048 ]; do
  echo -e "$ERROR_MESSAGE $count_t"  >> $LOG_FILE
  ((count_t++))  # 正确的自增语法
done

# 输出日志文件的大小
echo "Log file created with size: $(wc -c <"$LOG_FILE") bytes"

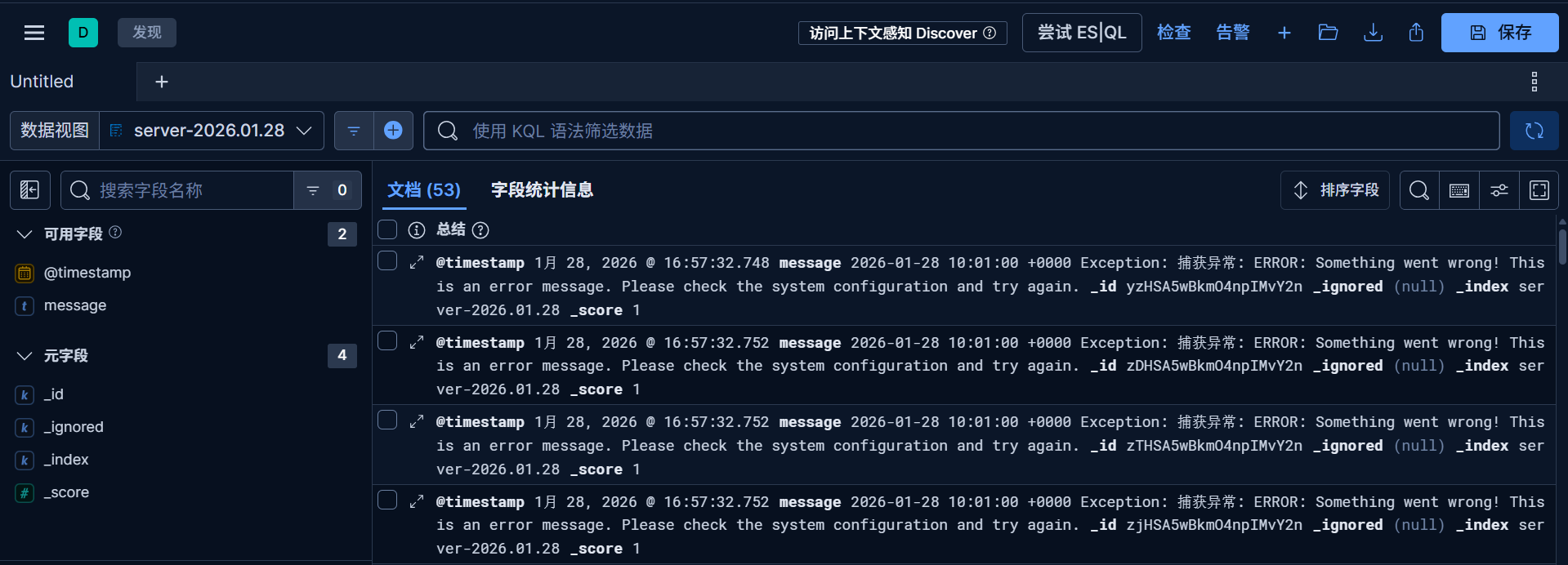

成功发送数据并创建索引


常见报错

docker logs filebeat |grep .log
日志文件最小为1024字节


kibana使用
来到开发工具-控制台

发送请求创建索引

# Create an index
PUT /my-index


# Add a document to my-index
POST /my-index/_doc
{
    "id": "park_rocky-mountain",
    "title": "Rocky Mountain",
    "description": "Bisected north to south by the Continental Divide, this portion of the Rockies has ecosystems varying from over 150 riparian lakes to montane and subalpine forests to treeless alpine tundra."
}


# Perform a search in my-index
GET /my-index/_search?q="rocky mountain"

在主页点击试用样例数据

添加三个样例数据

这样我们就把 Kibana 自带的三个数据集摄入到 Elasticsearch 中。上面的操作把数据加载到 Elasticsearch 中，并分别创建它们的 index patterns 也就是它们的索引模式。

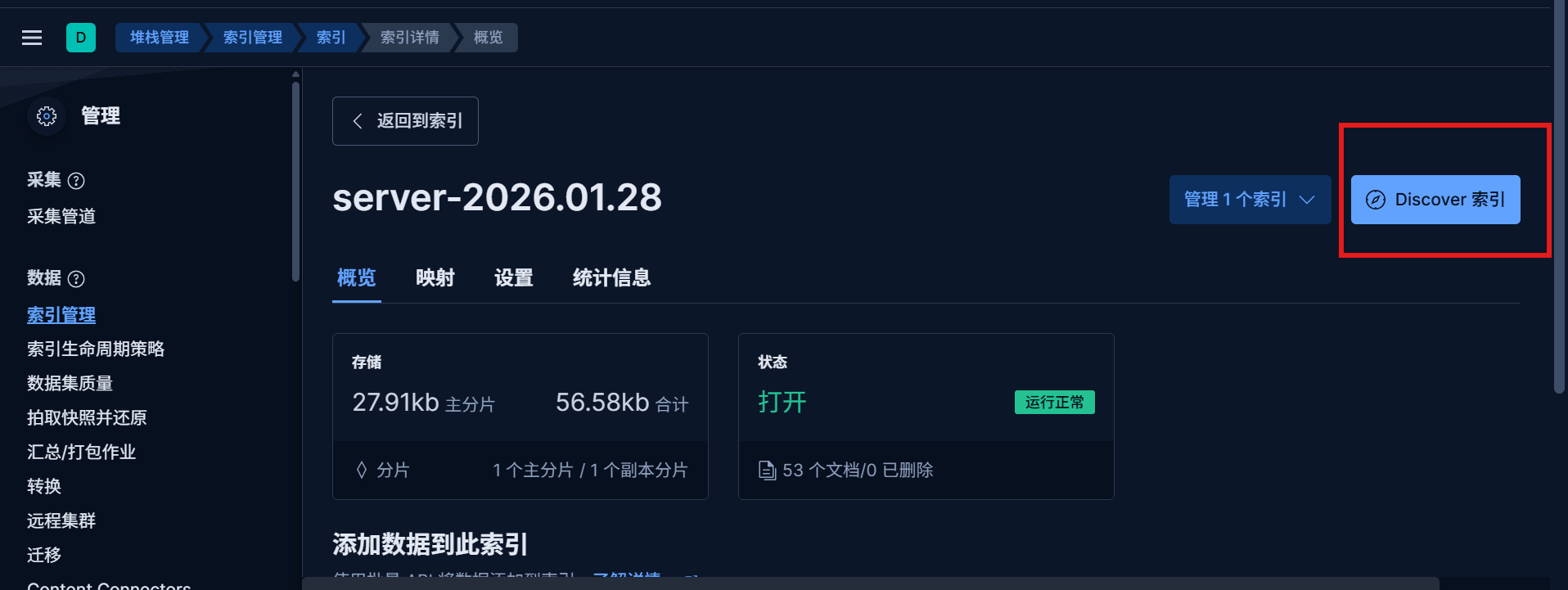

我们可以在 index management查看我们filebeat->logstash->es的数据。



参考
ELK保姆级安装部署 xiangzhihong
https://www.elastic.co/docs/deploy-manage/deploy/self-managed/install-elasticsearch-docker-compose
ELK 9.2.0 安装部署手册 胡桃夹子
Kibana：Kibana 入门 Elastic中国社区官方博客
吊打ElasticSearch和Kibana 北京-宏哥
