SecureCRT使用技巧

2025-06-11 12:00:19 3 阅读

下载

官网
https://www.vandyke.com/cgi-bin/releases.php?product=securecrt

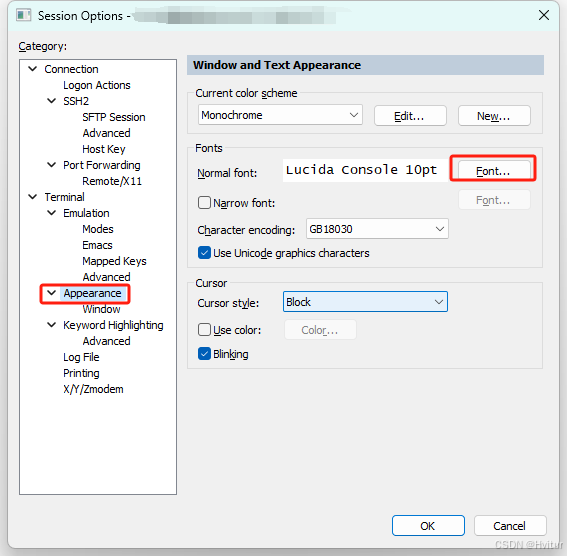

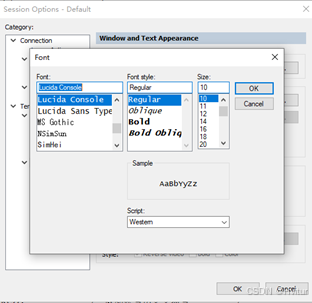

设置字体和颜色

Options->Session Options

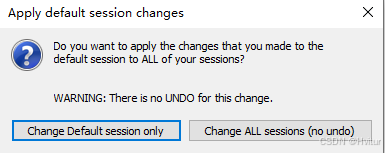

设置之后也会要求选择适用的范围

Change default session only：仅更改默认会话
Change ALL sessions（no undo）：更改所有会话（不撤销）会一次性更改所有的连接，在重启之后生效

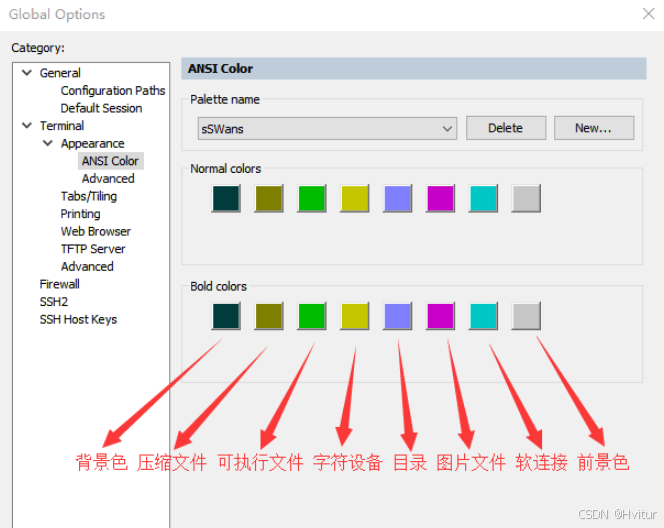

配色方案

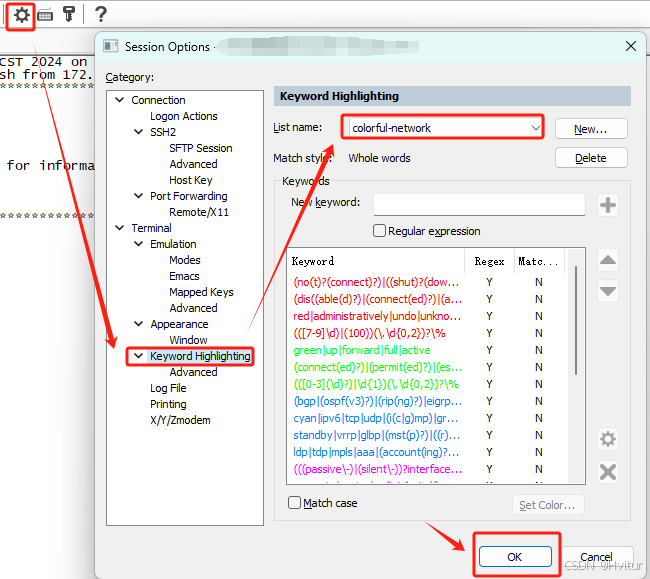

设置关键字高亮

1、查看文件存放路径

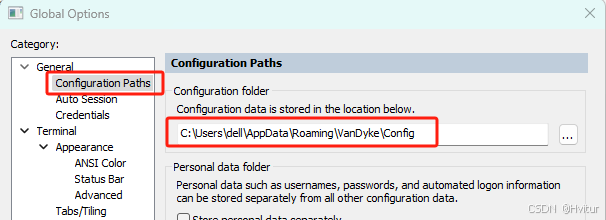

打开CRT左上角：【Options】-【Global Options】-【General】-【Configuration Paths】

2、新建文件夹
例如我这里是：C:UsersdellAppDataRoamingVanDykeConfigKeywords
如果没有，就新建个Keywords文件夹

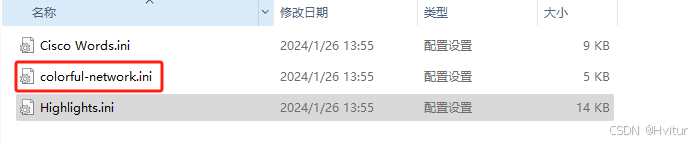

3、把配色文件放到Keywords文件夹中

可以参考下面的示例，改成.ini文件

   D:"Match Case"=00000000
   Z:"Keyword List V2"=00000016
    "(no(t)?(connect)?)|((shut)?(down)?)",000000ff,00000001
    "(dis((able(d)?)|(connect(ed)?)|(allow(ed)?)|(card(ed)?))|(error(s)?))|(fail((ure)|(ed))?)|((city)?[w]{2}m)|(den((y)|(ied)){1})",000000ff,00000001
    "red|administratively|undo|unknown|fault|block|refused|problem|warnings|alerts|critical|delete|inactive|unassigned",000000ff,00000001
    "(([7-9]d)|(100))(.d{0,2})?%",000000ff,00000001
    "green|up|forward|full|active",0000ff00,00000001
    "(connect(ed)?)|(permit(ed)?)|(estab(lish)?(ed)?)|(enable(d)?|(allow(ed)?))",0000ff00,00000001
    "(([0-3](d)?)|d{1})(.d{0,2})?%",0000ff00,00000001
    "(bgp|(ospf(v3)?)|(rip(ng)?)|eigrp|static|odr|unr|(is(-)?is)|pim|direct)(-d*)?",00ff8000,00000001
    "cyan|ipv6|tcp|udp|(i(c|g)mp)|gre|esp|ah|isakmp|(arp(a)?)|dhcp|(http(s)?)|dns|((t)?ftp)|telnet|ssh|www|ntp|radius|tacacs|popd|smtp|ppp|fr(ame(-)?relay)?|hdlc",00ff8000,00000001
    "standby|vrrp|glbp|(mst(p)?)|((r)?stp)|spanning-tree|dot1q|802.1q",00ff8000,00000001
    "ldp|tdp|mpls|aaa|(account(ing)?)|(auth((entication)|(orization)))|nat|bfd|nqa|sla|rtr|vrf|vpn(-instance)?",00ff8000,00000001
    "(((passive-)|(silent-))?interface)|(in|out)((bound)|(put))?",00ff00ff,00000001
    "magenta|router|redistribute|(import(-route)?)|export|network|neighbor|peer|area|acl|(class((ifier)|(-map)))|behavior|policy(-map)?",00ff00ff,00000001
    "access-((list)|(class)|(group))|ip-prefix|prefix-list|(route(-.*)?)|(traffic.*)",00ff00ff,00000001
    "[4-6]d((.d{0,2})?)%",00ff00ff,00000001
    "((fast)?|(gigabit)?)ethernet((d)?d/)*(d)+(.d{1,4})?",000080ff,00000001
    "d{1,3}.d{1,3}.d{1,3}.d{1,3}(/(d){0,2})?",000080ff,00000001
    "([A-Fa-f0-9]{1,4}::?){1,7}[A-Fa-f0-9]{1,4}(/(d){0,3})?",000080ff,00000001
    "([0-9a-fa-f]{4}[.|-][0-9a-fa-f]{4}[.|-][0-9a-fa-f]{4})|([0-9a-fa-f]{2}[.|-]){5}[0-9a-fa-f]{2}",000080ff,00000001
    "d{1,2}.([0-9a-fA-F]{2,4}.){1,11}d{1,2}",000080ff,00000001
    "(orange|ge|fa|fe|(eth((-)?(trunk)?))|null|loopback|tunnel|dialer|bri|serial|atm|pos|(vlan(if)?))(((d)?d/)*(d)+)?",000080ff,00000001
    "((virtual-(template|ppp|access))|(channel-group)|(port-channel)|(ether(-)?channel))(((d)?d/)*(d)+)?",000080ff,00000001
