Docker方式部署OceanBase数据库
提示：文章写完后，目录可以自动生成，如何生成可参考右边的帮助文档
文章目录
- 前言
- 一、Docker方式部署oceanbase
- 二、OceanBase安装步骤
- 1.拉取oceanbase镜像
- 2.启动oceanbase容器
- 3.查看oceanbase初始化的日志信息
- 4.进入oceanbase容器
- 5.启动oceanbase容器
- 6.进入oceanbase容器
- 7.查看集群详情
- 8.连接oceanbase数据库
- 9.修改root密码（默认root密码为空）
- 10.新密码连接
前言
提示：这里可以添加本文要记录的大概内容：
OceanBase是阿里巴巴、蚂蚁金服自主研发的可扩展的分布式关系数据库。
具体介绍可以参考官网
https://www.oceanbase.com/
提示：以下是本篇文章正文内容，下面案例可供参考
一、Docker方式部署oceanbase
OceanBase是阿里巴巴、蚂蚁金服自主研发的可扩展的分布式关系数据库。
二、OceanBase安装步骤
1.拉取oceanbase镜像
代码如下（示例）：
[root@localhost ~]# docker pull quay.io/oceanbase/oceanbase-ce
Using default tag: latest
latest: Pulling from oceanbase/oceanbase-ce
54273d8675f3: Pull complete
4f4fb700ef54: Pull complete
e564f00d9405: Pull complete
e5af5c4b8706: Pull complete
4facaa54b636: Pull complete
40903d073efe: Pull complete
29821a1484a7: Pull complete
7ad97f3e2e5f: Pull complete
f4965e7c3ff4: Pull complete
6bcbbaa7a350: Pull complete
c855931abb7c: Pull complete
3ea130b1a014: Pull complete
543dbe8ed2e5: Pull complete
2dcb3d49ca6c: Pull complete
58a4bd5b99d8: Pull complete
5c9484abca8d: Pull complete
8ce058257b10: Pull complete
62486627ca76: Pull complete
Digest: sha256:13cd5a03f632a2fcd254005c0182d55890e1f783bec2a15e77f5b783a2e3547f
Status: Downloaded newer image for quay.io/oceanbase/oceanbase-ce:latest
quay.io/oceanbase/oceanbase-ce:latest
You have mail in /var/spool/mail/root
2.启动oceanbase容器
代码如下（示例）：
[root@localhost ~]# docker run -p 2881:2881 --name oceanbase-ce -e MINI_MODE=0 -d quay.io/oceanbase/oceanbase-ce
41103400ca56e0447f4fa67ad1ca404acb23dbe4767241d273e1a0bd404135eb
3.查看oceanbase初始化的日志信息
代码如下（示例）：
[root@localhost ~]# docker logs oceanbase-ce
+--------------------------------------------------+
| Cluster List |
+------+-------------------------+-----------------+
| Name | Configuration Path | Status (Cached) |
+------+-------------------------+-----------------+
| demo | /root/.obd/cluster/demo | stopped |
+------+-------------------------+-----------------+
Trace ID: 94fba882-e9b4-11ef-8b1e-0242ac110002
Open ssh connection ok
[WARN] OBD-1007: (172.17.0.2) The recommended number of stack size is unlimited (Current value: 8192)
[WARN] OBD-1017: (172.17.0.2) The value of the "vm.max_map_count" must be within [327600, 1310720] (Current value: 65530, Recommended value: 655360)
[WARN] OBD-2000: (172.17.0.2) not enough memory. (Free: 5G, Need: 6G)
[WARN] OBD-1012: (172.17.0.2) clog and data use the same disk (/)
cluster scenario: express_oltp
Start observer ok
observer program health check ok
Connect to observer ok
Cluster bootstrap ok
obshell start ok
obshell program health check ok
obshell bootstrap ok
Connect to observer ok
Wait for observer init ok
+-----------------------------------------------+
| oceanbase-ce |
+------------+----------+------+-------+--------+
| ip | version | port | zone | status |
+------------+----------+------+-------+--------+
| 172.17.0.2 | 4.2.1.10 | 2881 | zone1 | ACTIVE |
+------------+----------+------+-------+--------+
obclient -h172.17.0.2 -P2881 -uroot -Doceanbase -A
cluster unique id: bf2e78c3-e718-587c-8a8c-bc579b0ce06d-194fd337e8f-0a010204
obcluster running
Trace ID: 9c8cf858-e9b4-11ef-a485-0242ac110002
If you want to view detailed obd logs, please run: obd display-trace 9c8cf858-e9b4-11ef-a485-0242ac110002
Get local repositories ok
Open ssh connection ok
Connect to observer ok
Create tenant test ok
Exec oceanbase-ce-4.2.1.10-110000072024112010.el8-b03c714bf9d03e3424203240514359a9e8b9317a import_time_zone_info.py ok
Exec oceanbase-ce-4.2.1.10-110000072024112010.el8-b03c714bf9d03e3424203240514359a9e8b9317a import_srs_data.py ok
4.进入oceanbase容器
代码如下（示例）：
[root@localhost ~]# docker exec -it oceanbase-ce bash
5.启动oceanbase容器
代码如下（示例）：
[root@localhost ~]# docker run -p 2881:2881 --name oceanbase-ce -e MINI_MODE=0 -d quay.io/oceanbase/oceanbase-ce
41103400ca56e0447f4fa67ad1ca404acb23dbe4767241d273e1a0bd404135eb
6.进入oceanbase容器
代码如下（示例）：
[root@localhost ~]# docker exec -it oceanbase-ce bash

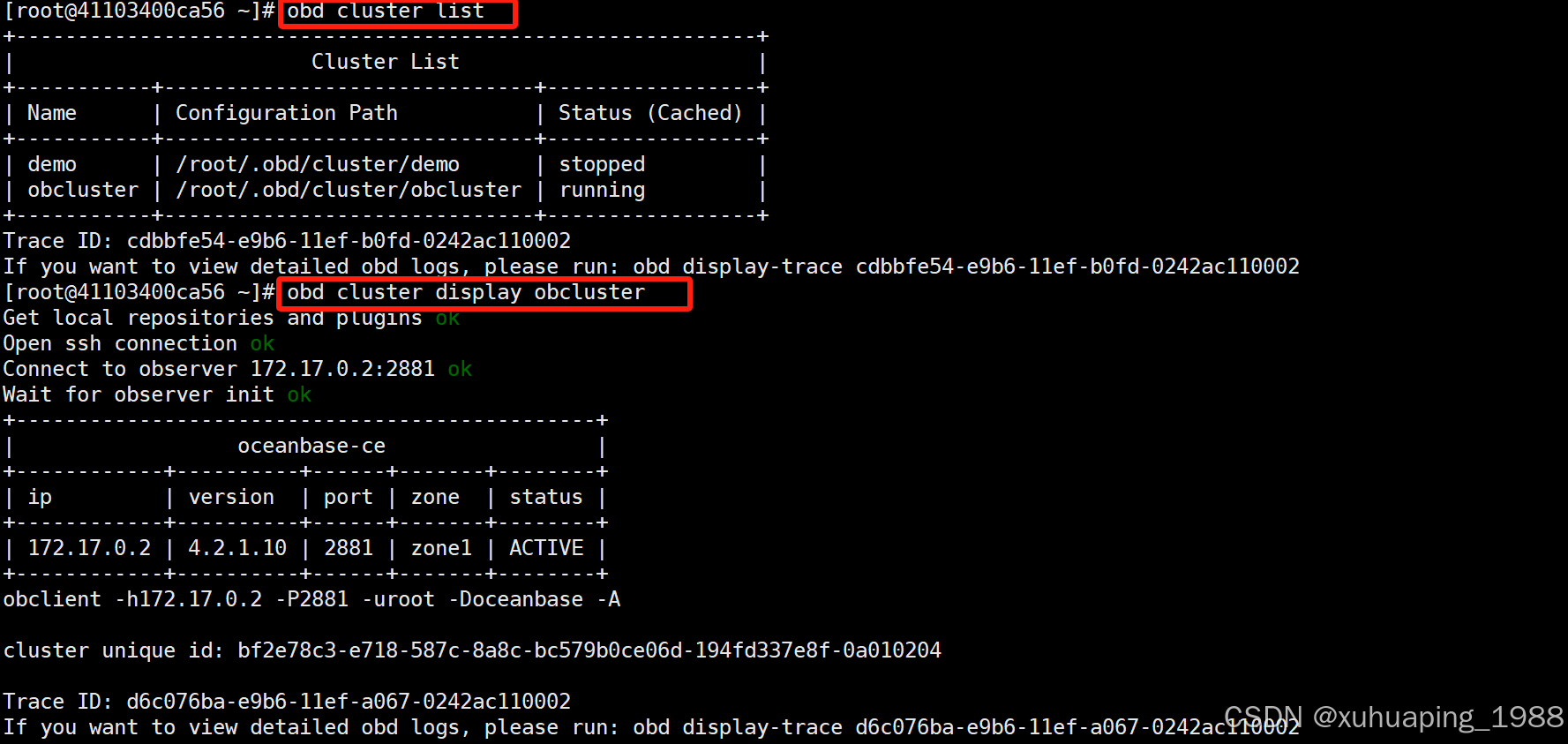

7.查看集群详情
代码如下（示例）：
[root@41103400ca56 ~]# obd cluster list
+------------------------------------------------------------+
| Cluster List |
+-----------+------------------------------+-----------------+
| Name | Configuration Path | Status (Cached) |
+-----------+------------------------------+-----------------+
| demo | /root/.obd/cluster/demo | stopped |
| obcluster | /root/.obd/cluster/obcluster | running |
+-----------+------------------------------+-----------------+
Trace ID: 4bfc8eec-e9b6-11ef-8d62-0242ac110002
If you want to view detailed obd logs, please run: obd display-trace 4bfc8eec-e9b6-11ef-8d62-0242ac110002
[root@41103400ca56 ~]# obd cluster display obcluster
Get local repositories and plugins ok
Open ssh connection ok
Connect to observer 172.17.0.2:2881 ok
Wait for observer init ok
+-----------------------------------------------+
| oceanbase-ce |
+------------+----------+------+-------+--------+
| ip | version | port | zone | status |
+------------+----------+------+-------+--------+
| 172.17.0.2 | 4.2.1.10 | 2881 | zone1 | ACTIVE |
+------------+----------+------+-------+--------+
obclient -h172.17.0.2 -P2881 -uroot -Doceanbase -A
cluster unique id: bf2e78c3-e718-587c-8a8c-bc579b0ce06d-194fd337e8f-0a010204
Trace ID: 5c730850-e9b6-11ef-9d33-0242ac110002
If you want to view detailed obd logs, please run: obd display-trace 5c730850-e9b6-11ef-9d33-0242ac110002
8.连接oceanbase数据库
代码如下（示例）：
[root@localhost ~]# docker exec -it oceanbase-ce obclient -h127.0.0.1 -P2881 -uroot@sys -A
Welcome to the OceanBase. Commands end with ; or g.
Your OceanBase connection id is 3221487677
Server version: OceanBase_CE 4.2.1.10 (r110000072024112010-28c1343085627e79a4f13c29121646bb889cf901) (Built Nov 20 2024 10:11:18)
Copyright (c) 2000, 2018, OceanBase and/or its affiliates. All rights reserved.
Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.
9.修改root密码（默认root密码为空）
代码如下（示例）：
obclient(root@sys)[(none)]> ALTER USER root IDENTIFIED BY '123456';
Query OK, 0 rows affected (0.062 sec)
10.新密码连接
代码如下（示例）：
[root@localhost ~]# docker exec -it oceanbase-ce bash
[root@41103400ca56 ~]# obclient -uroot@sys -h127.1 -P2881 -A -p123456
Welcome to the OceanBase. Commands end with ; or g.
Your OceanBase connection id is 3221487684
Server version: OceanBase_CE 4.2.1.10 (r110000072024112010-28c1343085627e79a4f13c29121646bb889cf901) (Built Nov 20 2024 10:11:18)
Copyright (c) 2000, 2018, OceanBase and/or its affiliates. All rights reserved.
Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.
obclient(root@sys)[(none)]>
