一、前言：为什么我们需要专业的Hosts管理工具？
在日常开发、网络调试或科学上网场景中，Hosts文件修改是每个开发者都绕不开的"必修课"。传统的手动修改方式存在三大痛点：
- 操作风险高：直接修改系统文件可能导致语法错误
- 效率低下：每次修改需要定位到系统目录
- 缺乏管理：版本回溯困难，多人协作不便
本文将完整解析一个基于Python Tkinter开发的Windows Hosts管理工具（附完整源码），它具备：
✅ 可视化编辑
✅ 一键备份/恢复
✅ GitHub加速预设
✅ DNS缓存刷新
✅ 网络配置快速入口
二、工具核心功能全景图
2.1 基础功能模块
| 功能模块 | 技术实现 | 使用场景 |
|---|---|---|
| 可视化编辑 | Tkinter Text组件 | 安全修改Hosts内容 |
| 版本管理 | shutil文件操作 | 配置回滚/多环境切换 |
| 语法校验 | 正则表达式 | 防止配置错误 |
2.2 进阶网络工具
class NetworkToolsManager:
@staticmethod
def flush_dns():
subprocess.run(["ipconfig", "/flushdns"], shell=True)
三、关键技术实现深度解析
3.1 安全文件操作机制
def save_hosts(self):
try:
with open(HOSTS_PATH, "w", encoding="utf-8") as f:
f.write(content)
logging.info(f"成功保存hosts文件")
except PermissionError:
messagebox.showerror("错误", "请以管理员权限运行程序")
关键点分析：
- 强制UTF-8编码避免乱码
- try-catch捕获权限异常
- 操作日志全程记录
3.2 智能备份系统设计
备份策略采用"时间戳+增量"模式：
backups/
├── hosts_20240507_143000.bak
├── hosts_20240507_143500.bak
└── hosts_20240507_144000.bak
核心代码逻辑：
backup_name = f"hosts_{datetime.now().strftime('%Y%m%d_%H%M%S')}.bak"
shutil.copy(HOSTS_PATH, os.path.join(BACKUP_DIR, backup_name))
3.3 界面交互优化技巧
现代化UI实现方案：
- 卡片式布局（CSS风格阴影效果）
self.main_frame = tk.Frame(highlightbackground="#dcdcdc", highlightthickness=1)
- 按钮悬停特效
btn.bind("" , lambda e: btn.config(bg=hover_color))
btn.bind("" , lambda e: btn.config(bg=normal_color))
- 状态栏实时反馈
self.status_bar = tk.Label(text="就绪", anchor=tk.W)

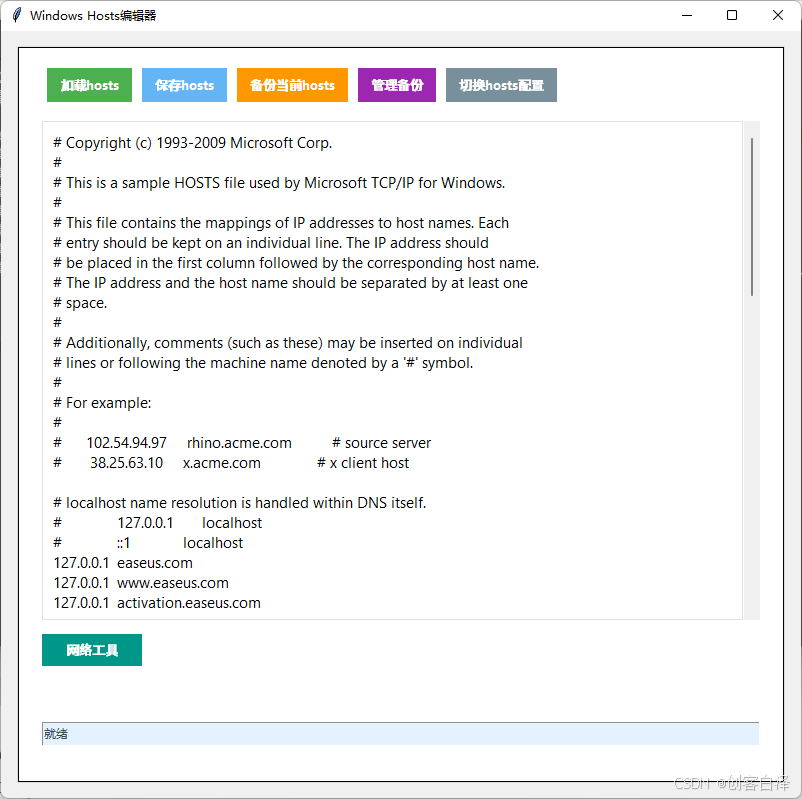

四、实战演示：从安装到高阶使用
4.1 环境搭建步骤
- 安装Python 3.8+
- 安装依赖库：
pip install tkinter shutil logging datetime
- 下载源码（文末提供）
4.2 典型使用场景演示
场景一：快速切换开发环境
- 点击"加载hosts"读取当前配置
- 修改测试环境域名指向
- 保存后自动备份
场景二：GitHub加速
def accelerate_github(self):
github_hosts = """
140.82.112.3 github.com
140.82.112.4 gist.github.com
..."""

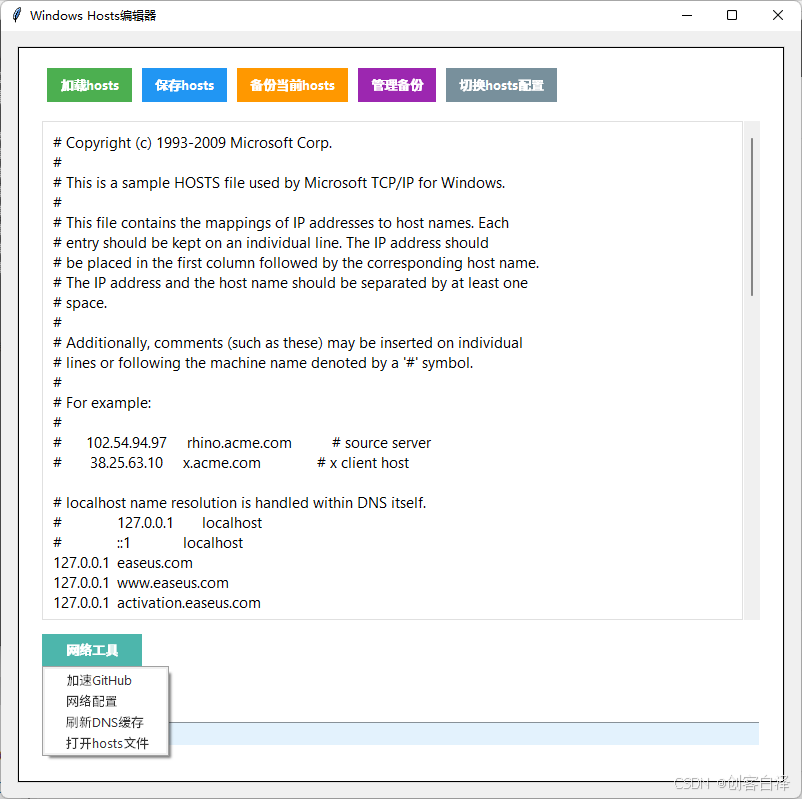

点击网络工具→加速GitHub一键注入最优IP
五、性能优化与异常处理
5.1 大文件处理优化
# 分块读取大文件
with open(HOSTS_PATH, "r") as f:
while chunk := f.read(4096):
self.text.insert(tk.END, chunk)
5.2 全面的错误处理机制
| 错误类型 | 处理方案 | 用户提示 |
|---|---|---|
| 文件不存在 | 自动创建备份目录 | “正在初始化备份目录…” |
| 权限不足 | 捕获PermissionError | “请以管理员身份运行” |
| 编码错误 | 强制UTF-8编码 | “文件编码异常，已自动转换” |
六、工具扩展方向
6.1 企业级功能增强
- 增加多环境Profile管理
- 开发团队协作版本控制
- 添加配置差异对比功能
6.2 跨平台适配方案
# 自适应系统路径
if sys.platform == "win32":
HOSTS_PATH = r"C:WindowsSystem32driversetchosts"
elif sys.platform == "linux":
HOSTS_PATH = "/etc/hosts"
七、结语与资源下载
通过本工具的开发实践，我们不仅解决了Hosts管理的痛点，更展示了Python GUI开发的强大灵活性。工具已开源，欢迎Star和贡献代码！
📌 完整源码下载：
import tkinter as tk
from tkinter import messagebox, filedialog
import os
import shutil
import logging
import datetime
# 日志配置
LOG_DIR = os.path.join(os.path.dirname(__file__), "logs")
if not os.path.exists(LOG_DIR):
os.makedirs(LOG_DIR)
log_filename = os.path.join(LOG_DIR, f"hostsmanager_{datetime.datetime.now().strftime('%Y%m%d_%H%M%S')}.log")
logging.basicConfig(
level=logging.INFO,
format='%(asctime)s - %(levelname)s - %(message)s',
handlers=[
logging.FileHandler(log_filename, encoding='utf-8'),
logging.StreamHandler() # 同时输出到控制台，方便调试
]
)
HOSTS_PATH = r"C:WindowsSystem32driversetchosts"
BACKUP_DIR = os.path.join(os.path.dirname(__file__), "backups")
class NetworkToolsManager:
@staticmethod
def flush_dns():
import subprocess
subprocess.run(["ipconfig", "/flushdns"], shell=True)
class HostsManagerApp:
def __init__(self, root):
self.root = root
self.root.title("Windows Hosts编辑器")
self.root.geometry("800x600") # 增大窗口尺寸
self.root.resizable(True, True) # 允许调整大小
self.root.configure(bg="#f0f0f0") # 使用更柔和的背景色
# 卡片式布局，增加圆角和更细微的阴影
self.main_frame = tk.Frame(root, bg="#ffffff", bd=0, relief="solid", borderwidth=1, highlightbackground="#dcdcdc", highlightthickness=1)
self.main_frame.place(relx=0.02, rely=0.02, relwidth=0.96, relheight=0.96) # 调整布局，减少顶部空白，增加高度
# Hosts内容文本框和滚动条
self.text_frame = tk.Frame(self.main_frame, bg="#ffffff") # 文本框容器
self.text_frame.place(relx=0.03, rely=0.10, relwidth=0.94, relheight=0.68) # 调整文本框位置和高度
self.scrollbar = tk.Scrollbar(self.text_frame, orient="vertical")
self.scrollbar.pack(side="right", fill="y")
self.text = tk.Text(
self.text_frame,
font=("Segoe UI", 11), # 调整字体大小
wrap="none",
bg="#ffffff",
relief="flat",
bd=0,
highlightthickness=1,
highlightbackground="#e0e0e0",
highlightcolor="#64b5f6", # 调整高亮颜色
yscrollcommand=self.scrollbar.set,
padx=10, # 增加内边距
pady=10
)
self.text.pack(side="left", fill="both", expand=True)
self.scrollbar.config(command=self.text.yview)
# 按钮区 - 使用更现代的样式和布局
button_frame = tk.Frame(self.main_frame, bg="#ffffff")
button_frame.place(relx=0.03, rely=0.02, relwidth=0.94, height=45) # 增加按钮区域高度
btn_style = {
"font": ("Segoe UI", 10, "bold"), # 调整字体
"fg": "white",
"bd": 0,
"relief": "flat",
"cursor": "hand2",
"height": 1,
"padx": 10,
"pady": 5
}
# 按钮颜色和悬停效果
colors = {
"load": ("#4CAF50", "#66bb6a"),
"save": ("#2196F3", "#64b5f6"),
"backup": ("#FF9800", "#ffb74d"),
"restore": ("#9C27B0", "#ba68c8"),
"switch": ("#78909C", "#90a4ae"),
"network": ("#009688", "#4db6ac")
}
def create_button(parent, text, command, color_key, width):
btn = tk.Button(
parent,
text=text,
command=command,
bg=colors[color_key][0],
activebackground=colors[color_key][1],
activeforeground="white",
**btn_style
)
btn.bind("" , lambda e, b=btn, c=colors[color_key][1]: b.config(bg=c))
btn.bind("" , lambda e, b=btn, c=colors[color_key][0]: b.config(bg=c))
return btn
self.load_btn = create_button(button_frame, "加载hosts", self.load_hosts, "load", 100)
self.load_btn.pack(side="left", padx=5)
self.save_btn = create_button(button_frame, "保存hosts", self.save_hosts, "save", 100)
self.save_btn.pack(side="left", padx=5)
self.backup_btn = create_button(button_frame, "备份当前hosts", self.backup_hosts, "backup", 120)
self.backup_btn.pack(side="left", padx=5)
self.restore_btn = create_button(button_frame, "管理备份", self.open_backup_window, "restore", 100)
self.restore_btn.pack(side="left", padx=5)
self.switch_btn = create_button(button_frame, "切换hosts配置", self.switch_hosts, "switch", 130)
self.switch_btn.pack(side="left", padx=5)
# 网络工具菜单按钮
self.network_menu_btn = tk.Menubutton(
self.main_frame,
text="网络工具",
bg=colors["network"][0],
activebackground=colors["network"][1],
activeforeground="white",
**btn_style
)
self.network_menu_btn.place(relx=0.03, rely=0.80, width=100, height=32)
self.network_menu = tk.Menu(self.network_menu_btn, tearoff=0, bg="#ffffff", fg="#333333", font=("Segoe UI", 10))
self.network_menu.add_command(label="加速GitHub", command=self.accelerate_github)
self.network_menu.add_command(label="网络配置", command=self.open_network_settings)
self.network_menu.add_command(label="刷新DNS缓存", command=NetworkToolsManager.flush_dns)
self.network_menu.add_command(label="打开hosts文件", command=self.open_hosts_file)
self.network_menu_btn.config(menu=self.network_menu)
self.network_menu_btn.bind(
"" , lambda e: self.network_menu_btn.config(bg=colors["network"][1])
)
self.network_menu_btn.bind(
"" , lambda e: self.network_menu_btn.config(bg=colors["network"][0])
)
# 状态栏
self.status_bar = tk.Label(self.main_frame, text="就绪", bd=1, relief=tk.SUNKEN,
anchor=tk.W, bg="#e3f2fd", fg="#37474f")
self.status_bar.place(relx=0.03, rely=0.92, relwidth=0.94, height=24)
self.load_hosts()
logging.info("应用程序启动")
def open_hosts_file(self):
import subprocess
try:
subprocess.Popen(["notepad.exe", HOSTS_PATH])
logging.info(f"已用系统默认编辑器打开 hosts 文件: {HOSTS_PATH}")
except Exception as e:
logging.exception(f"打开 hosts 文件失败: {HOSTS_PATH}")
messagebox.showerror("错误", f"打开hosts文件失败: {e}")
def load_hosts(self):
try:
with open(HOSTS_PATH, "r", encoding="utf-8") as f:
content = f.read()
self.text.delete(1.0, tk.END)
self.text.insert(tk.END, content)
logging.info(f"成功加载 hosts 文件: {HOSTS_PATH}")
except Exception as e:
logging.exception(f"加载 hosts 文件失败: {HOSTS_PATH}")
messagebox.showerror("错误", f"加载hosts失败: {e}")
def save_hosts(self):
content = self.text.get(1.0, tk.END)
try:
with open(HOSTS_PATH, "w", encoding="utf-8") as f:
f.write(content)
logging.info(f"成功保存 hosts 文件: {HOSTS_PATH}")
messagebox.showinfo("成功", "hosts文件已保存！")
except Exception as e:
logging.exception(f"保存 hosts 文件失败: {HOSTS_PATH}")
messagebox.showerror("错误", f"保存hosts失败: {e}")
def backup_hosts(self):
if not os.path.exists(BACKUP_DIR):
try:
os.makedirs(BACKUP_DIR)
logging.info(f"创建备份目录: {BACKUP_DIR}")
except Exception as e:
logging.exception(f"创建备份目录失败: {BACKUP_DIR}")
messagebox.showerror("错误", f"创建备份目录失败: {e}")
return
backup_name = f"hosts_{datetime.datetime.now().strftime('%Y%m%d_%H%M%S')}.bak"
backup_path = os.path.join(BACKUP_DIR, backup_name)
try:
shutil.copy(HOSTS_PATH, backup_path)
logging.info(f"成功备份 hosts 文件到: {backup_path}")
messagebox.showinfo("成功", f"备份成功: {backup_name}")
except Exception as e:
logging.exception(f"备份 hosts 文件失败: {HOSTS_PATH} -> {backup_path}")
messagebox.showerror("错误", f"备份失败: {e}")
def open_backup_window(self):
backup_window = tk.Toplevel(self.root)
backup_window.title("备份管理")
backup_window.geometry("400x350")
backup_window.resizable(True, True)
backup_window.configure(bg="#f0f0f0")
backup_window.transient(self.root)
backup_window.grab_set()
# 备份列表区域
backup_frame = tk.Frame(backup_window, bg="#ffffff", bd=1, relief="solid", highlightbackground="#dcdcdc", highlightthickness=1)
backup_frame.pack(padx=10, pady=10, fill="both", expand=True)
label_backup = tk.Label(
backup_frame,
text="备份列表:",
font=("Segoe UI", 10, "bold"),
bg="#ffffff",
fg="#555555",
anchor="w"
)
label_backup.pack(side="top", fill="x", padx=5, pady=(5, 2))
listbox_frame = tk.Frame(backup_frame, bg="#ffffff")
listbox_frame.pack(fill="both", expand=True, padx=5, pady=(0, 5))
backup_scrollbar = tk.Scrollbar(listbox_frame, orient="vertical")
backup_scrollbar.pack(side="right", fill="y")
backup_listbox = tk.Listbox(
listbox_frame,
font=("Segoe UI", 10),
bd=0,
highlightthickness=1,
highlightbackground="#e0e0e0",
relief="flat",
bg="#f9f9f9",
yscrollcommand=backup_scrollbar.set,
selectbackground="#64b5f6",
selectforeground="white"
)
backup_listbox.pack(side="left", fill="both", expand=True)
backup_scrollbar.config(command=backup_listbox.yview)
def refresh_list():
backup_listbox.delete(0, tk.END)
if not os.path.exists(BACKUP_DIR):
logging.warning(f"备份目录不存在: {BACKUP_DIR}")
return
try:
files = sorted(os.listdir(BACKUP_DIR), reverse=True)
for fname in files:
if fname.endswith(".bak"):
backup_listbox.insert(tk.END, fname)
logging.info(f"成功加载备份列表从: {BACKUP_DIR}")
except Exception as e:
logging.exception(f"加载备份列表失败: {BACKUP_DIR}")
messagebox.showerror("错误", f"加载备份列表失败: {e}", parent=backup_window)
def restore_selected_backup():
sel = backup_listbox.curselection()
if not sel:
messagebox.showwarning("提示", "请先选择一个备份文件！", parent=backup_window)
return
backup_file = backup_listbox.get(sel[0])
backup_path = os.path.join(BACKUP_DIR, backup_file)
try:
shutil.copy(backup_path, HOSTS_PATH)
self.load_hosts()
logging.info(f"成功从备份还原 hosts 文件: {backup_path} -> {HOSTS_PATH}")
messagebox.showinfo("成功", "还原成功！", parent=backup_window)
backup_window.destroy()
except Exception as e:
logging.exception(f"从备份还原 hosts 文件失败: {backup_path} -> {HOSTS_PATH}")
messagebox.showerror("错误", f"还原失败: {e}", parent=backup_window)
def delete_selected_backup():
sel = backup_listbox.curselection()
if not sel:
messagebox.showwarning("提示", "请先选择一个备份文件！", parent=backup_window)
return
backup_file = backup_listbox.get(sel[0])
backup_path = os.path.join(BACKUP_DIR, backup_file)
if messagebox.askyesno("确认", f"确定要删除备份文件 '{backup_file}' 吗？", parent=backup_window):
try:
os.remove(backup_path)
logging.info(f"成功删除备份文件: {backup_path}")
messagebox.showinfo("成功", "备份文件已删除！", parent=backup_window)
refresh_list()
except Exception as e:
logging.exception(f"删除备份文件失败: {backup_path}")
messagebox.showerror("错误", f"删除失败: {e}", parent=backup_window)
# 按钮区域
button_frame_backup = tk.Frame(backup_window, bg="#f0f0f0")
button_frame_backup.pack(pady=(0, 10), fill="x", padx=10)
restore_button = tk.Button(button_frame_backup, text="还原选中备份", command=restore_selected_backup, bg="#4CAF50", fg="white", relief="flat", font=("Segoe UI", 10, "bold"))
restore_button.pack(side="left", padx=5)
delete_button = tk.Button(button_frame_backup, text="删除选中备份", command=delete_selected_backup, bg="#f44336", fg="white", relief="flat", font=("Segoe UI", 10, "bold"))
delete_button.pack(side="left", padx=5)
refresh_button = tk.Button(button_frame_backup, text="刷新列表", command=refresh_list, bg="#2196F3", fg="white", relief="flat", font=("Segoe UI", 10, "bold"))
refresh_button.pack(side="right", padx=5)
refresh_list()
backup_window.mainloop()
def switch_hosts(self):
file_path = filedialog.askopenfilename(
title="选择hosts配置",
filetypes=[("hosts文件", "*.bak;*.txt;*.hosts;*.*")],
initialdir=BACKUP_DIR,
)
if file_path:
try:
shutil.copy(file_path, HOSTS_PATH)
self.load_hosts()
logging.info(f"成功切换 hosts 文件: {file_path} -> {HOSTS_PATH}")
messagebox.showinfo("成功", "切换成功！")
except Exception as e:
logging.exception(f"切换 hosts 文件失败: {file_path} -> {HOSTS_PATH}")
messagebox.showerror("错误", f"切换失败: {e}")
else:
logging.info("取消切换 hosts 文件")
def set_dns(self):
import subprocess
from tkinter import simpledialog
dns = simpledialog.askstring(
"DNS设置", "请输入新的DNS服务器地址(如8.8.8.8):", parent=self.root
)
if dns:
try:
result = subprocess.check_output(
"wmic nic where (NetEnabled=true) get NetConnectionID",
shell=True,
encoding="gbk",
stderr=subprocess.STDOUT
)
adapters = [
line.strip()
for line in result.splitlines()
if line.strip() and "NetConnectionID" not in line
]
if not adapters:
logging.error("未检测到可用的网络适配器")
messagebox.showerror("错误", "未检测到可用的网络适配器！")
return
adapter = adapters[0]
cmd = f'netsh interface ip set dns name="{adapter}" static {dns}'
logging.info(f"尝试设置 DNS: {cmd}")
subprocess.check_call(cmd, shell=True)
logging.info(f"成功设置 DNS 为 {dns} (适配器: {adapter})")
messagebox.showinfo("成功", f"DNS已设置为: {dns}
(适配器: {adapter})")
except subprocess.CalledProcessError as e:
logging.exception(f"设置 DNS 命令执行失败: {cmd}
输出: {e.output}")
messagebox.showerror("错误", f"设置DNS失败: {e}
请检查是否以管理员权限运行")
except Exception as e:
logging.exception(f"设置 DNS 失败")
messagebox.showerror("错误", f"设置DNS失败: {e}")
else:
logging.info("取消设置 DNS")
def open_network_settings(self):
import subprocess
try:
logging.info("尝试打开网络连接设置")
subprocess.Popen("control.exe ncpa.cpl", shell=True)
except Exception as e:
logging.exception("打开网络连接设置失败")
messagebox.showerror("错误", f"无法打开网络配置页面: {e}")
def accelerate_github(self):
"""一键加速GitHub访问"""
github_hosts = """
# GitHub Start
140.82.112.3 github.com
140.82.112.4 gist.github.com
140.82.113.4 api.github.com
140.82.114.4 assets-cdn.github.com
140.82.112.5 raw.githubusercontent.com
140.82.113.5 user-images.githubusercontent.com
140.82.114.5 favicons.githubusercontent.com
140.82.112.6 avatars.githubusercontent.com
140.82.113.6 avatars0.githubusercontent.com
140.82.114.6 avatars1.githubusercontent.com
140.82.112.7 avatars2.githubusercontent.com
140.82.113.7 avatars3.githubusercontent.com
140.82.114.7 avatars4.githubusercontent.com
140.82.112.8 avatars5.githubusercontent.com
# GitHub End
"""
try:
with open(HOSTS_PATH, "r", encoding="utf-8") as f:
current_content = f.read()
if "# GitHub Start" in current_content:
logging.warning("GitHub hosts 已存在，跳过添加")
messagebox.showwarning("提示", "GitHub加速配置似乎已存在，无需重复添加。")
return
with open(HOSTS_PATH, "a", encoding="utf-8") as f:
f.write("
" + github_hosts)
self.load_hosts()
logging.info("成功应用 GitHub 加速 hosts")
messagebox.showinfo("成功", "GitHub加速已应用！")
except Exception as e:
logging.exception("应用 GitHub 加速 hosts 失败")
messagebox.showerror("错误", f"加速GitHub失败: {e}")
def validate_hosts(self, content):
import re
pattern = r"^(s*$|#.*|# ---.*|(d{1,3}.){3}d{1,3}s+S+)?$"
return all(re.match(pattern, line.strip()) for line in content.split("
") if line.strip())
def main():
root = tk.Tk()
root.protocol('WM_DELETE_WINDOW', root.destroy)
app = HostsManagerApp(root)
root.mainloop()
if __name__ == "__main__":
try:
main()
except Exception as e:
logging.critical("应用程序发生未捕获的严重错误", exc_info=True)
messagebox.showerror("严重错误", f"应用程序遇到严重问题，请查看日志文件获取详细信息:
{log_filename}
错误: {e}")
✍️ 互动提问：
- 你在Hosts管理中还遇到哪些痛点？
- 希望增加哪些新功能？
- 对UI设计有何改进建议？
