基于eNSP的IPv4/IPv6双栈网络规划设计【基于IPv4/IPv6的过渡解决方案设计】

前言及技术/资源下载说明（ **未经允许禁止转发任何内容** ）
- 一、设计topo图与设计要求
- 二、相应地址规划表
- 三、基于MPLS VPN与IPsec VPN的双重保障规划设计(综合实验/大作业)(可不看)
- 四、该网络规划过程
- - Site a
  - - 1、Eth-Trunk
    - 2、VLAN的划分
    - 3、MSTP
    - 4、Vlan-if网关
    - 5、管理VRRP&VRRP6
    - 6、VRRP&VRRP6双活网关
    - 7、DHCP中继
    - 8、无线WLAN
    - 9、无线AC冗余
    - 10、双机热备
    - 11、安全策略
    - 12、OSPF&OSPFv3
    - 13、路由策略
    - 14、OSPF路由发布
    - 15、BGP
    - 16、BGP路由发布
    - 17、6to4隧道
    - 18、分支路由发布
    - 19、4to6隧道
    - 20、NAT44
    - 21、NAT server
    - 22、流量路径
  - Site DMZ
  - - 1、vlan划分
    - 2、OSPF&OSPFv3
    - 3、路由策略
    - 4、DHCP服务
  - Site b
  - - 1、VLAN划分&STP优化
    - 2、DHCP&IPv4接入
    - 3、NAT44
    - 4、6to4隧道
  - Site c
  - - 1、VLAN划分&STP优化
    - 2、DHCP&IPv6接入
    - 3、4to6隧道
  - ISP
  - - 1、ISIS
    - 2、路由策略
    - 3、BGP
    - 4、配对AR BGP互联
    - 5、发布虚拟下一跳路由策略
    - 6、业务路由策略

前言及技术/资源下载说明（未经允许禁止转发任何内容）

可根据以下所提供的设计与实现步骤过程一步一步自行实现（每一条命令都是关键的命令）；但是如果有需要的也可以根据以下地址进行下载完整的topo图和完整的配置进行参考与借鉴，如若拿到topo图可多display查看配置，查看相应的命令，获取配套资源方式如下，相应的内容如下图所示：

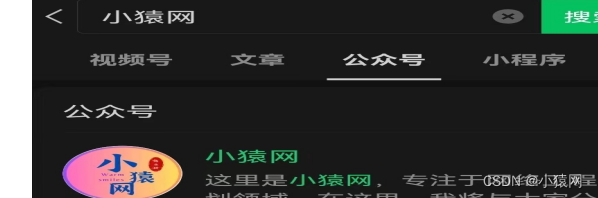

公众号（小猿网），回复“网络规划”即可
注:只是资源为消费资源，如不符合
您的消费观，还请您见谅

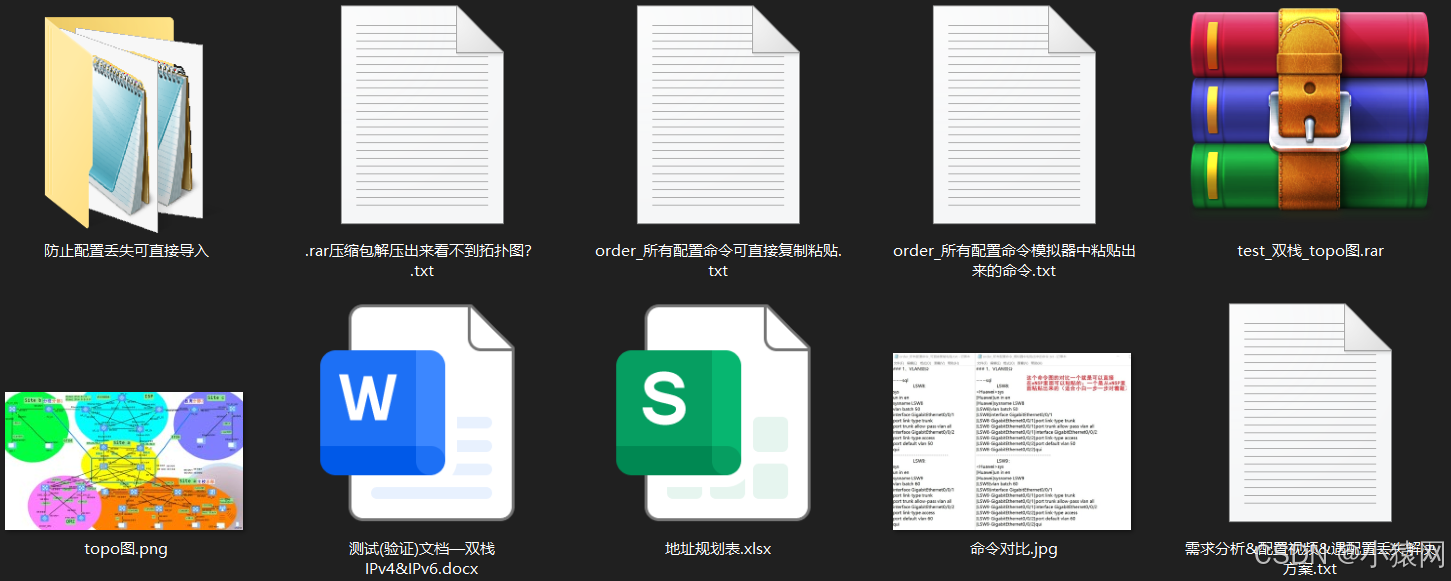

 内容包含：
包含了该中基于eNSP的IPv4/IPv6双栈
网络规划设计的完整的topo图和配置
+来自eNSP模拟器粘贴出来完整的命令
+可直接在eNSP中粘贴的命令+详细的
网络规划地址表+实验的规划要求+一
步一步的测试文档（带视频简单配置测试）

模拟器中防火墙用户名：admin 密码：admin@123

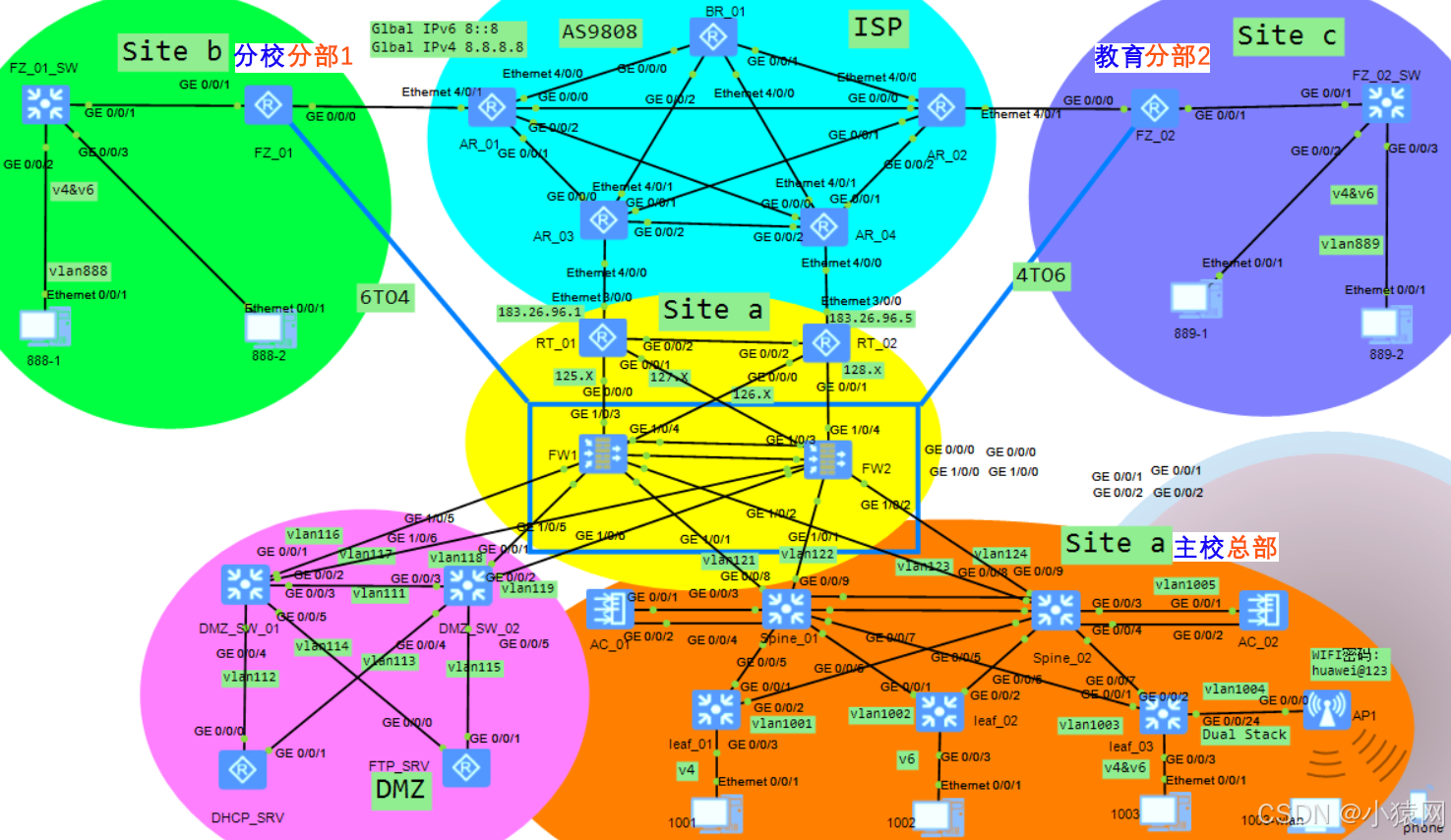

topo图也就是这样子的，相应的地址规划和路由规划大部分都在图中明确的标注了

      该topo网络中用到的技术有VLAN的划分、MSTP、VRRP、VRRP6、DHCP、DHCPv4/DHCPv6中继、无线WLAN、无线双机双链路热备份、防火墙双机热备、安全策略、默认路由、路由引入、ISIS、OSPF、OSPFv3、BGP、BGP4+、6to4隧道、4to6隧道、NAT、NAT server等。
      该实验非常适合于把相应的单个技术学完想把这些技术综合起来的小伙伴，特别适合于想搞IPv6或者IPv4过渡到IPv6这一块的设计图，且对于毕设课设的小伙伴可以进行参考，进行自己的规划与设计。使用场景适用于毕业设计、校园网络规划、企业网络规划、政府网络规划等场合。
      有什么问题可以在平台私信博主，博主看到都会第一时间回复的，最后说明该topo规划最后的作者权归于：BSXY_信息学院_19计科_陈永跃

一、设计topo图与设计要求

设计要求：

完成服务器、防火墙、路由器相应的接口地址的配置
合理规划地址且让相应地址可读性强和容易记忆
采用IPv4/IPv6双栈技术进行网络规划部署
Spine交换机之间、Spine交换机和AC之间配置Eth-Trunk链路捆绑来提高链路的冗余
根据不同的地域划分多个不同的vlan,减小广播域大小，提高网络的可靠性和安全性
配置MSTP+VRRP/VRRP6,同时实现冗余，划分实例，让不同的vlan优先选择相应的交换机，并减少stp震荡
部署VRRP/VRRP6时需引入管理vlan统一管理
所有的有线用户和无线用户均是自动获取地址
Site a的用户通过DHCPv4/v6中继自动获取地址，DHCP_SRV作为为Site a分配地址的服务器，Spine交换机作为中继代理服务器
Site b和Site c的用户通过FZ路由器的DHCPv4/v6服务自动获取地址
Site a的用户有的只能有IPv4地址，有的只能有IPv6地址，有的用户同时拥有IPv4和IPv6地址
Site a和Site c的用户同时拥有IPv4地址和IPv6地址
内网内运行OSPF/OSPFv3路由
防火墙双机热备使用两个心跳线并做链路捆绑提高网络的可靠性
无线双机双链路实现AP1优先加入AC1,AC2作为备份，保证一个AP可由两个AC进行管理提高网络的可靠性
ISP运营商部署BGP/BGP4+模拟
Site a与Site b之间部署6to4隧道，使得两个站点的IPv6能通信
Site a将地址为10.1.11.254通过NAT server映射为223.73.54.100地址使得Site b能通过映射地址访问10.1.11.254
Site a与Site c之间部署4to6隧道，使得两个长点的IPv4能通信
*部署相应的NAT使得Site a、Site b、Site c的用户都能通过IPv4和IPv6地址访问公网（8.8.8.8/8::8）

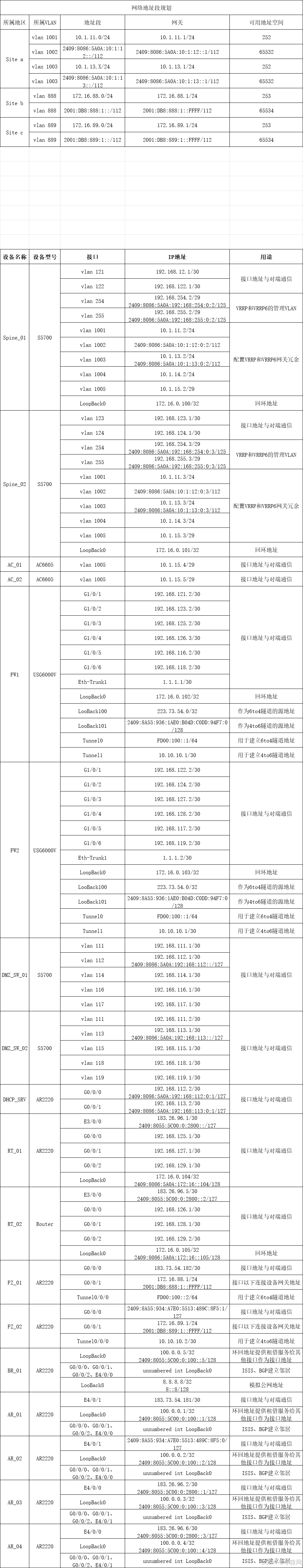

二、相应地址规划表

三、基于MPLS VPN与IPsec VPN的双重保障规划设计(综合实验/大作业)(可不看)

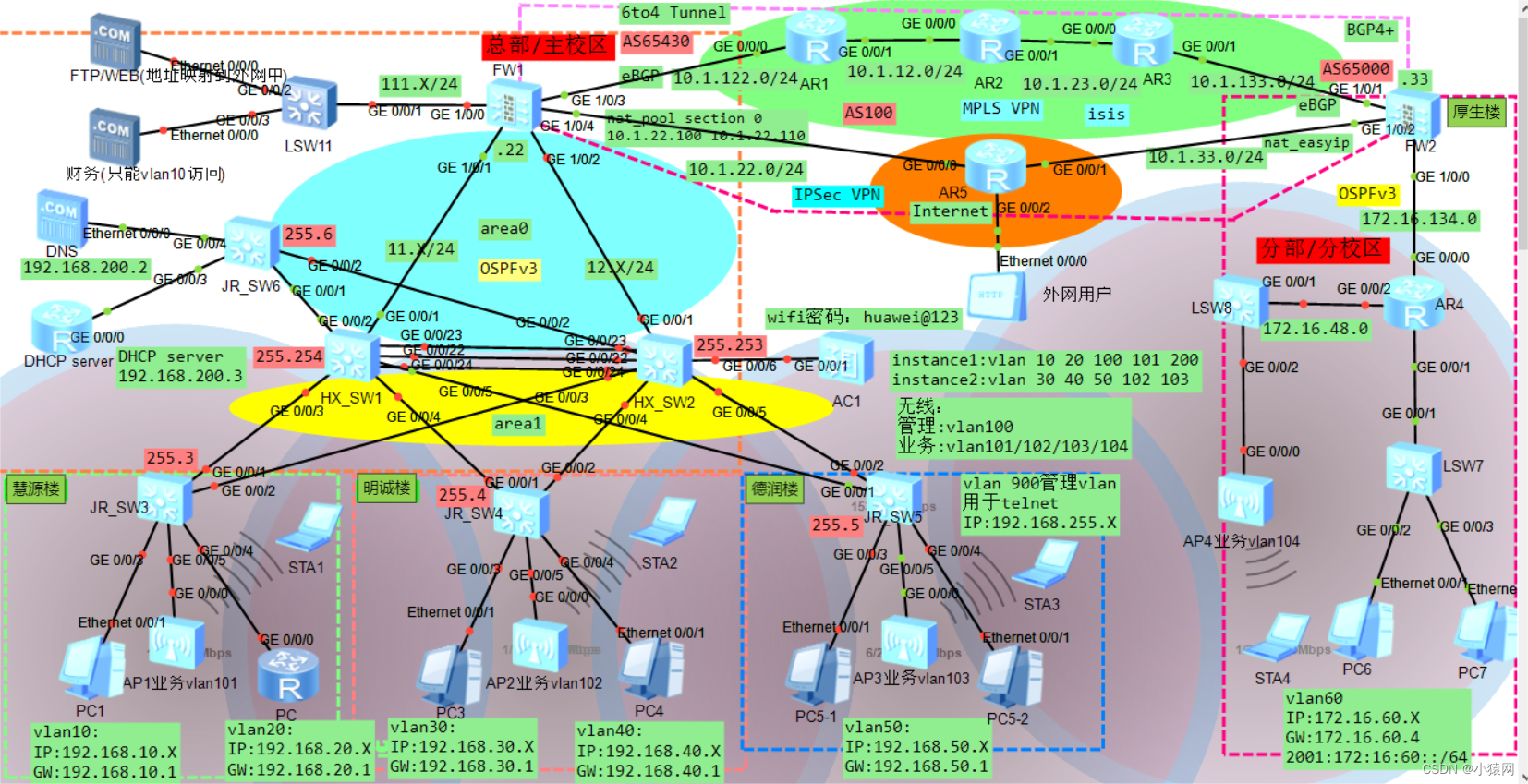

插曲部分：基于MPLS VPN与IPsec VPN的双重保障规划设计(综合实验/大作业) 如下图所示（但是并不在该篇文章中做详细介绍和说明，如查看可点击连接自行查看阅读）：

设计要求：

完成服务器、防火墙、路由器相应的接口地址的配置
慧源楼配置Eth-Trunk链路捆绑来提高链路的冗余
根据不同的地域划分多个不同的vlan,减小广播域大小，提高网络的可靠性和安全性
在明诚楼配置MSTP+VRRP,同时实现冗余，划分实例，让不同的vlan优先选择相应的交换机，并减少stp震荡
明诚楼、慧源楼、德润楼的所有用户通过配置相应的DHCP中继能自动获取地址，且DHCP服务器为DHCPserver
配置相应的ospf，多区域区域0中OSPF激活MD5认证,SW1/SW2采用接口方式配置
区域0内的设备启用BFD快速检测链路故障
分校区用户也需要要自动获取地址，相应服务器为AR4，AR4配置相应的子接口为相应终端分配地址
配置端口安全,且接口能够自动学习MAC地址
配置端口隔离实现PC6,PC7同VLAN内不能互访
分校区/分部的无线用的地址和AP的地址都由SW8来分配
FW2作为PPPoE客户端,AR5作为PPPoE服务端，进行相应的拨号上网
R1,R2,R3部署ISIS Level-2,区域ID 49.0000
部署MPLS VPN,其中R1,R3作为PE设备，R2作为路由放射器
FW1,FW2作为CE端与PE端建立eBGP邻居关系
运营商AS 100,总部/主校区在65430，分支都在AS65000
FW1,FW2之间部署IPSec VPN 实现总部/主校区与分支之间通信
其中总部和分支之间通信优先使用MPLS VPN若MPLS VPN故障使用IPSec VPN实现通信
若FW1中NQA检测10.1.5.5不可达则停止下发缺省到内网
NAT配置总部/主校区用户方位外网用地址池10.1.22.100~10.1.22.110
分支用户访问外网采用EASY-IP实现
外网用户访问内网WEB服务——用100.100.100.100来做相应的地址映射
财务部服务器只能由内网的vlan 10用户访问
配置DHCP Snooping防止DHCP欺骗与非法dhcp服务器的接入
内部的所有交换机都可以被telnet进行远程管理
主校区/总部用户可以通过域名(www.baidu.com)访问外网百度，无线用户也可以
ipv6中对于AS100内互联地址采用link-local地址
R1,R2,R3的lo0地址2001:10:1:X::X/128
激活ISISv6,并保障v4与v6的拓扑分离
SW1 SW2新增Lo0接口地址为2001:192:168:X::X/128
FW1,SW1,SW2部署OSPFv3区域0,其中互联地址采用Link-local地址
分支FW2与AR4部署OSPFv3,互联地址采用link-local地址
FW1,FW2利用MPLS VPN网络建立6to4隧道
对于6to4隧道基础上部署BGP4+，实现总部与分支的IPv6互通

四、该网络规划过程

Site a

1、Eth-Trunk

	Spine_01:
<Huawei>sys
[Huawei]un in en
[Huawei]sys Spine_01
[Spine_01]int eth-trunk 1
[Spine_01-Eth-Trunk1]mode lacp-static
[Spine_01-Eth-Trunk1]lacp timeout fast
[Spine_01-Eth-Trunk1]trunkport g0/0/1
[Spine_01-Eth-Trunk1]trunkport g0/0/2
[Spine_01-Eth-Trunk1]qui
[Spine_01]int eth-trunk 31
[Spine_01-Eth-Trunk31]mode lacp-static
[Spine_01-Eth-Trunk31]lacp timeout fast
[Spine_01-Eth-Trunk31]trunkport g0/0/3
[Spine_01-Eth-Trunk31]trunkport g0/0/4
[Spine_01-Eth-Trunk31]qui
[Spine_01]
-------------------------
	Spine_02:
<Huawei>sys
[Huawei]un in en
[Huawei]sys Spine_02
[Spine_02]int eth-trunk 1
[Spine_02-Eth-Trunk1]mode lacp-static
[Spine_02-Eth-Trunk1]lacp timeout fast
[Spine_02-Eth-Trunk1]trunkport g0/0/1
[Spine_02-Eth-Trunk1]trunkport g0/0/2
[Spine_02-Eth-Trunk1]qui
[Spine_02]int eth-trunk 31
[Spine_02-Eth-Trunk31]mode lacp-static
[Spine_02-Eth-Trunk31]lacp timeout fast
[Spine_02-Eth-Trunk31]trunkport g0/0/3
[Spine_02-Eth-Trunk31]trunkport g0/0/4
[Spine_02-Eth-Trunk31]qui
[Spine_02]

2、VLAN的划分

	Spine_01:
[Spine_01]vlan batch 121 to 122 254 to 255 1001 to 1005
[Spine_01]int eth 1
[Spine_01-Eth-Trunk1]port link-type trunk
[Spine_01-Eth-Trunk1]port trunk allow vlan 254 to 255 1001 to 1005
[Spine_01-Eth-Trunk1]int eth 31
[Spine_01-Eth-Trunk31]port hybrid tagged vlan 1005
[Spine_01-Eth-Trunk31]int g0/0/5
[Spine_01-GigabitEthernet0/0/5]port link-type trunk
[Spine_01-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[Spine_01-GigabitEthernet0/0/5]port trunk allow-pass vlan 1001
[Spine_01-GigabitEthernet0/0/5]int g0/0/6
[Spine_01-GigabitEthernet0/0/6]port link-type trunk
[Spine_01-GigabitEthernet0/0/6]undo port trunk allow-pass vlan 1
[Spine_01-GigabitEthernet0/0/6]port trunk allow-pass vlan 1002
[Spine_01-GigabitEthernet0/0/6]int g0/0/7
[Spine_01-GigabitEthernet0/0/7]port link-type trunk
[Spine_01-GigabitEthernet0/0/7]undo port trunk allow-pass vlan 1
[Spine_01-GigabitEthernet0/0/7]port trunk allow-pass vlan 1003 to 1004
[Spine_01-GigabitEthernet0/0/7]int g0/0/8
[Spine_01-GigabitEthernet0/0/8]port link-type access
[Spine_01-GigabitEthernet0/0/8]port default vlan 121
[Spine_01-GigabitEthernet0/0/8]int g0/0/9
[Spine_01-GigabitEthernet0/0/9]port link-type access
[Spine_01-GigabitEthernet0/0/9]port default vlan 122
[Spine_01-GigabitEthernet0/0/9]qui
[Spine_01]
-------------------------
	Spine_02:
[Spine_02]vlan batch 123 to 124 254 to 255 1001 to 1005
[Spine_02]int eth 1
[Spine_02-Eth-Trunk1]port link-type trunk
[Spine_02-Eth-Trunk1]port trunk allow vlan 254 to 255 1001 to 1005
[Spine_02-Eth-Trunk1]int eth 31
[Spine_02-Eth-Trunk31]port hybrid tagged vlan 1005
[Spine_02-Eth-Trunk31]int g0/0/5
[Spine_02-GigabitEthernet0/0/5]port link-type trunk
[Spine_02-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[Spine_02-GigabitEthernet0/0/5]port trunk allow-pass vlan 1001
[Spine_02-GigabitEthernet0/0/5]int g0/0/6
[Spine_02-GigabitEthernet0/0/6]port link-type trunk
[Spine_02-GigabitEthernet0/0/6]undo port trunk allow-pass vlan 1
[Spine_02-GigabitEthernet0/0/6]port trunk allow-pass vlan 1002
[Spine_02-GigabitEthernet0/0/6]int g0/0/7
[Spine_02-GigabitEthernet0/0/7]port link-type trunk
[Spine_02-GigabitEthernet0/0/7]undo port trunk allow-pass vlan 1
[Spine_02-GigabitEthernet0/0/7]port trunk allow-pass vlan 1003 to 1004
[Spine_02-GigabitEthernet0/0/7]int g0/0/8
[Spine_02-GigabitEthernet0/0/8]port link-type access
[Spine_02-GigabitEthernet0/0/8]port default vlan 123
[Spine_02-GigabitEthernet0/0/8]int g0/0/9
[Spine_02-GigabitEthernet0/0/9]port link-type access
[Spine_02-GigabitEthernet0/0/9]port default vlan 124
[Spine_02-GigabitEthernet0/0/9]qui
[Spine_02]
-------------------------
	leaf_01:
<Huawei>sys
[Huawei]un in en
[Huawei]sys leaf_01
[leaf_01]vlan batch 1001 to 1004
[leaf_01]int g0/0/1
[leaf_01-GigabitEthernet0/0/1]port link-type trunk
[leaf_01-GigabitEthernet0/0/1]undo port trunk allow-pass vlan 1
[leaf_01-GigabitEthernet0/0/1]port trunk allow-pass vlan 1001
[leaf_01-GigabitEthernet0/0/1]int g0/0/2
[leaf_01-GigabitEthernet0/0/2]port link-type trunk
[leaf_01-GigabitEthernet0/0/2]undo port trunk allow-pass vlan 1
[leaf_01-GigabitEthernet0/0/2]port trunk allow-pass vlan 1001
[leaf_01-GigabitEthernet0/0/2]int g0/0/3
[leaf_01-GigabitEthernet0/0/3]port link-type access
[leaf_01-GigabitEthernet0/0/3]port default vlan 1001
[leaf_01-GigabitEthernet0/0/3]qui
[leaf_01]
-------------------------
	leaf_02:
<Huawei>sys
[Huawei]un in en
[Huawei]sys leaf_02
[leaf_02]vlan batch 1001 to 1004
[leaf_02]int g0/0/1
[leaf_02-GigabitEthernet0/0/1]port link-type trunk
[leaf_02-GigabitEthernet0/0/1]undo port trunk allow-pass vlan 1
[leaf_02-GigabitEthernet0/0/1]port trunk allow-pass vlan 1002
[leaf_02-GigabitEthernet0/0/1]int g0/0/2
[leaf_02-GigabitEthernet0/0/2]port link-type trunk
[leaf_02-GigabitEthernet0/0/2]undo port trunk allow-pass vlan 1
[leaf_02-GigabitEthernet0/0/2]port trunk allow-pass vlan 1002
[leaf_02-GigabitEthernet0/0/2]int g0/0/3
[leaf_02-GigabitEthernet0/0/3]port link-type access
[leaf_02-GigabitEthernet0/0/3]port default vlan 1002
[leaf_02-GigabitEthernet0/0/3]qui
[leaf_02]
-------------------------
	leaf_03:
<Huawei>sys
[Huawei]un in en
Info: Information center is disabled.
[Huawei]sys leaf_03
[leaf_03]vlan batch 1001 to 1004
[leaf_03]int g0/0/1
[leaf_03-GigabitEthernet0/0/1]port link-type trunk
[leaf_03-GigabitEthernet0/0/1]undo port trunk allow-pass vlan 1
[leaf_03-GigabitEthernet0/0/1]port trunk allow-pass vlan 1003 to 1004
[leaf_03-GigabitEthernet0/0/1]int g0/0/2
[leaf_03-GigabitEthernet0/0/2]port link-type trunk
[leaf_03-GigabitEthernet0/0/2]undo port trunk allow-pass vlan 1
[leaf_03-GigabitEthernet0/0/2]port trunk allow-pass vlan 1003 to 1004
[leaf_03-GigabitEthernet0/0/2]int g0/0/3
[leaf_03-GigabitEthernet0/0/3]port link-type access
[leaf_03-GigabitEthernet0/0/3]port default vlan 1003
[leaf_03-GigabitEthernet0/0/3]int g0/0/4
[leaf_03-GigabitEthernet0/0/4]interface GigabitEthernet0/0/24
[leaf_03-GigabitEthernet0/0/24]port link-type trunk
[leaf_03-GigabitEthernet0/0/24]port trunk pvid vlan 1004
[leaf_03-GigabitEthernet0/0/24]undo port trunk allow-pass vlan 1
[leaf_03-GigabitEthernet0/0/24]port trunk allow-pass vlan 1003 to 1004
[leaf_03-GigabitEthernet0/0/24]qui
[leaf_03]

3、MSTP

	Spine_01:
[Spine_01]stp region-configuration
[Spine_01-mst-region]region-name MSTP_Domain
[Spine_01-mst-region]revision-level 10
[Spine_01-mst-region]instance 11 vlan 1001
[Spine_01-mst-region]instance 12 vlan 1002
[Spine_01-mst-region]instance 13 vlan 1003
[Spine_01-mst-region]instance 14 vlan 1004
[Spine_01-mst-region]active region-configuration
[Spine_01-mst-region]qui
[Spine_01]stp instance 0 root primary
[Spine_01]stp instance 11 root primary
[Spine_01]stp instance 12 root primary
[Spine_01]stp instance 13 root secondary
[Spine_01]stp instance 14 root secondary
[Spine_01]stp bpdu-protection
[Spine_01]stp tc-protection
[Spine_01]port group g0/0/5 to g0/0/7
[Spine_01-port-group]stp root-protection
[Spine_01-GigabitEthernet0/0/5]stp root-protection
[Spine_01-GigabitEthernet0/0/6]stp root-protection
[Spine_01-GigabitEthernet0/0/7]stp root-protection
[Spine_01-port-group]qui
[Spine_01]
-------------------------
	Spine_02:
[Spine_02]stp region-configuration
[Spine_02-mst-region]region-name MSTP_Domain
[Spine_02-mst-region]revision-level 10
[Spine_02-mst-region]instance 11 vlan 1001
[Spine_02-mst-region]instance 12 vlan 1002
[Spine_02-mst-region]instance 13 vlan 1003
[Spine_02-mst-region]instance 14 vlan 1004
[Spine_02-mst-region]active region-configuration
[Spine_02-mst-region]qui
[Spine_02]stp instance 0 root secondary
[Spine_02]stp instance 11 root secondary
[Spine_02]stp instance 12 root secondary
[Spine_02]stp instance 13 root primary
[Spine_02]stp instance 14 root primary
[Spine_02]stp bpdu-protection
[Spine_02]stp tc-protection
[Spine_02]port group g0/0/5 to g0/0/7
[Spine_02-port-group]stp root-protection
[Spine_02-GigabitEthernet0/0/5]stp root-protection
[Spine_02-GigabitEthernet0/0/6]stp root-protection
[Spine_02-GigabitEthernet0/0/7]stp root-protection
[Spine_02-port-group]qui
[Spine_02]
-------------------------
	leaf_01:
[leaf_01]stp region-configuration
[leaf_01-mst-region]region-name MSTP_Domain
[leaf_01-mst-region]revision-level 10
[leaf_01-mst-region]instance 11 vlan 1001
[leaf_01-mst-region]instance 12 vlan 1002
[leaf_01-mst-region]instance 13 vlan 1003
[leaf_01-mst-region]instance 14 vlan 1004
[leaf_01-mst-region]active region-configuration
[leaf_01-mst-region]qui
[leaf_01]stp bpdu-protection
[leaf_01]stp tc-protection
[leaf_01]int g0/0/3
[leaf_01-GigabitEthernet0/0/3]stp bpdu-filter enable
[leaf_01-GigabitEthernet0/0/3]stp edged-port enable
[leaf_01-GigabitEthernet0/0/3]qui
[leaf_01]
-------------------------
	leaf_02:
[leaf_02]stp region-configuration
[leaf_02-mst-region]region-name MSTP_Domain
[leaf_02-mst-region]revision-level 10
[leaf_02-mst-region]instance 11 vlan 1001
[leaf_02-mst-region]instance 12 vlan 1002
[leaf_02-mst-region]instance 13 vlan 1003
[leaf_02-mst-region]instance 14 vlan 1004
[leaf_02-mst-region]active region-configuration
[leaf_02-mst-region]qui
[leaf_02]stp bpdu-protection
[leaf_02]stp tc-protection
[leaf_02]int g0/0/3
[leaf_02-GigabitEthernet0/0/3]stp bpdu-filter enable
[leaf_02-GigabitEthernet0/0/3]stp edged-port enable
[leaf_02-GigabitEthernet0/0/3]qui
[leaf_02]
-------------------------
	leaf_03:
[leaf_03]stp region-configuration
[leaf_03-mst-region]region-name MSTP_Domain
[leaf_03-mst-region]revision-level 10
[leaf_03-mst-region]instance 11 vlan 1001
[leaf_03-mst-region]instance 12 vlan 1002
[leaf_03-mst-region]instance 13 vlan 1003
[leaf_03-mst-region]instance 14 vlan 1004
[leaf_03-mst-region]active region-configuration
[leaf_03-mst-region]qui
[leaf_03]stp bpdu-protection
[leaf_03]stp tc-protection
[leaf_03]port group g0/0/3 g0/0/24
[leaf_03-port-group]stp bpdu-filter enable
[leaf_03-GigabitEthernet0/0/3]stp bpdu-filter enable
[leaf_03-GigabitEthernet0/0/24]stp bpdu-filter enable
[leaf_03-port-group]stp edged-port enable
[leaf_03-GigabitEthernet0/0/3]stp edged-port enable
[leaf_03-GigabitEthernet0/0/24]stp edged-port enable
[leaf_03-port-group]qui
[leaf_03]

4、Vlan-if网关

	Spine_01:
[Spine_01]ipv6
[Spine_01]int vlan 1001
[Spine_01-Vlanif1001]ip address 10.1.11.2 255.255.255.0
[Spine_01-Vlanif1001]int vlan 1002
[Spine_01-Vlanif1002]ipv6 enable
[Spine_01-Vlanif1002]ipv6 address 2409:8086:5A0A:10:1:12:0:2/112
[Spine_01-Vlanif1002]ipv6 address auto link-local
[Spine_01-Vlanif1002]int vlan 1003
[Spine_01-Vlanif1003]ipv6 enable
[Spine_01-Vlanif1003]ip address 10.1.13.2 255.255.255.0
[Spine_01-Vlanif1003]ipv6 address 2409:8086:5A0A:10:1:13:0:2/112
[Spine_01-Vlanif1003]ipv6 address auto link-local
[Spine_01-Vlanif1003]int vlan 1004
[Spine_01-Vlanif1004]ip address 10.1.14.2 255.255.255.0
[Spine_01-Vlanif1004]int vlan 1005
[Spine_01-Vlanif1005]ip address 10.1.15.2 255.255.255.248
[Spine_01-Vlanif1005]qui
[Spine_01]
-------------------------
	Spine_02:
[Spine_02]ipv6
[Spine_02]int vlan 1001
[Spine_02-Vlanif1001]ip address 10.1.11.3 255.255.255.0
[Spine_02-Vlanif1001]int vlan 1002
[Spine_02-Vlanif1002]ipv6 enable
[Spine_02-Vlanif1002]ipv6 address 2409:8086:5A0A:10:1:12:0:3/112
[Spine_02-Vlanif1002]ipv6 address auto link-local
[Spine_02-Vlanif1002]int vlan 1003
[Spine_02-Vlanif1003]ipv6 enable
[Spine_02-Vlanif1003]ip address 10.1.13.3 255.255.255.0
[Spine_02-Vlanif1003]ipv6 address 2409:8086:5A0A:10:1:13:0:3/112
[Spine_02-Vlanif1003]ipv6 address auto link-local
[Spine_02-Vlanif1003]int vlan 1004
[Spine_02-Vlanif1004]ip address 10.1.14.3 255.255.255.0
[Spine_02-Vlanif1004]int vlan 1005
[Spine_02-Vlanif1005]ip address 10.1.15.3 255.255.255.248
[Spine_02-Vlanif1005]qui
[Spine_02]

5、管理VRRP&VRRP6

这一部分要不我就先不放在文章中，
配置的设备主要是Spine的VRRP和VRRP6
用vlan254和vlan255作为管理vlan
	vlan254
		Spine_01管理VRRP主使用
		Spine_02管理VRRP备使用
	vlan255
		Spine_02管理VRRP主使用
		Spine_01管理VRRP备使用

这一部分在文章中省了，但是如果是
自己确实是小白没法自己配置出来那
可能就没有办法了，下载资源的话需要
收取一些费用，那里的order命令是没有省略的
一条一条一步一步的命令都是有的，也都是全的。
公众号（小猿网），回复“网络规划”即可
注:只是资源为消费资源，如不符合
您的消费观，还请您见谅

6、VRRP&VRRP6双活网关

	Spine_01:
[Spine_01]int vlan 1001
[Spine_01-Vlanif1001]vrrp vrid 1 virtual-ip 10.1.11.1
[Spine_01-Vlanif1001]vrrp vrid 1 track admin-vrrp interface Vlanif254 vrid 254 unflowdown
[Spine_01-Vlanif1001]int vlan 1002
[Spine_01-Vlanif1002]vrrp6 vrid 2 virtual-ip FE80:8086:5A0A:10:1:12:0:1 link-local
[Spine_01-Vlanif1002]vrrp6 vrid 2 virtual-ip 2409:8086:5A0A:10:1:12:0:1
[Spine_01-Vlanif1002]vrrp6 vrid 2 track admin-vrrp6 interface Vlanif254 vrid 255 unflowdown
[Spine_01-Vlanif1002]int vlan 1003
[Spine_01-Vlanif1003]vrrp vrid 1 virtual-ip 10.1.13.1
[Spine_01-Vlanif1003]vrrp6 vrid 2 virtual-ip FE80:8086:5A0A:10:1:13:0:1 link-local
[Spine_01-Vlanif1003]vrrp6 vrid 2 virtual-ip 2409:8086:5A0A:10:1:13:0:1
[Spine_01-Vlanif1003]int vlan 1004
[Spine_01-Vlanif1004]vrrp vrid 1 virtual-ip 10.1.14.1
[Spine_01-Vlanif1004]vrrp vrid 1 track admin-vrrp interface Vlanif255 vrid 254 unflowdown
[Spine_01-Vlanif1004]int vlan 1005
[Spine_01-Vlanif1005]vrrp vrid 1 virtual-ip 10.1.15.1
[Spine_01-Vlanif1005]vrrp vrid 1 track admin-vrrp interface Vlanif254 vrid 254 unflowdown
[Spine_01-Vlanif1005]qui
[Spine_01]
-------------------------
	Spine_02:
[Spine_02]int vlan 1001
[Spine_02-Vlanif1001]vrrp vrid 1 virtual-ip 10.1.11.1
[Spine_02-Vlanif1001]vrrp vrid 1 track admin-vrrp interface Vlanif254 vrid 254 unflowdown
[Spine_02-Vlanif1001]int vlan 1002
[Spine_02-Vlanif1002]vrrp6 vrid 2 virtual-ip FE80:8086:5A0A:10:1:12:0:1 link-local
[Spine_02-Vlanif1002]vrrp6 vrid 2 virtual-ip 2409:8086:5A0A:10:1:12:0:1
[Spine_02-Vlanif1002]vrrp6 vrid 2 track admin-vrrp6 interface Vlanif254 vrid 255 unflowdown
[Spine_02-Vlanif1002]int vlan 1003
[Spine_02-Vlanif1003]vrrp vrid 1 virtual-ip 10.1.13.1
[Spine_02-Vlanif1003]vrrp vrid 1 priority 120
[Spine_02-Vlanif1003]vrrp6 vrid 2 virtual-ip FE80:8086:5A0A:10:1:13:0:1 link-local
[Spine_02-Vlanif1003]vrrp6 vrid 2 virtual-ip 2409:8086:5A0A:10:1:13:0:1
[Spine_02-Vlanif1003]vrrp6 vrid 2 priority 120
[Spine_02-Vlanif1003]int vlan 1004
[Spine_02-Vlanif1004]vrrp vrid 1 virtual-ip 10.1.14.1
[Spine_02-Vlanif1004]vrrp vrid 1 track admin-vrrp interface Vlanif255 vrid 254 unflowdown
[Spine_02-Vlanif1004]int vlan 1005
[Spine_02-Vlanif1005]vrrp vrid 1 virtual-ip 10.1.15.1
[Spine_02-Vlanif1005]vrrp vrid 1 track admin-vrrp interface Vlanif254 vrid 254 unflowdown
[Spine_02-Vlanif1005]qui
[Spine_02]

7、DHCP中继

	Spine_01:
[Spine_01]dhcp enable
[Spine_01]dhcp server group dhcp_srv
[Spine_01-dhcp-server-group-dhcp_srv]dhcp-server 192.168.112.2
[Spine_01-dhcp-server-group-dhcp_srv]dhcp-server 192.168.113.2
[Spine_01-dhcp-server-group-dhcp_srv]int vlan 1001
[Spine_01-Vlanif1001]dhcp select relay
[Spine_01-Vlanif1001]dhcp relay server-select dhcp_srv
[Spine_01-Vlanif1001]int vlan 1002
[Spine_01-Vlanif1002]undo ipv6 nd ra halt
[Spine_01-Vlanif1002]ipv6 nd autoconfig managed-address-flag
[Spine_01-Vlanif1002]ipv6 nd autoconfig other-flag
[Spine_01-Vlanif1002]dhcpv6 relay destination 2409:8086:5A0A:192:168:112:0:1
[Spine_01-Vlanif1002]int vlan 1003
[Spine_01-Vlanif1003]undo ipv6 nd ra halt
[Spine_01-Vlanif1003]ipv6 nd autoconfig managed-address-flag
[Spine_01-Vlanif1003]ipv6 nd autoconfig other-flag
[Spine_01-Vlanif1003]dhcp select relay
[Spine_01-Vlanif1003]dhcp relay server-select dhcp_srv
[Spine_01-Vlanif1003]dhcpv6 relay destination 2409:8086:5A0A:192:168:113:0:1
[Spine_01-Vlanif1003]int vlan 1004
[Spine_01-Vlanif1004]dhcp select relay
[Spine_01-Vlanif1004]dhcp relay server-select dhcp_srv
[Spine_01-Vlanif1004]qui
[Spine_01]
-------------------------
	Spine_02:
[Spine_02]dhcp enable
[Spine_02]dhcp server group dhcp_srv
[Spine_02-dhcp-server-group-dhcp_srv]dhcp-server 192.168.112.2
[Spine_02-dhcp-server-group-dhcp_srv]dhcp-server 192.168.113.2
[Spine_02-dhcp-server-group-dhcp_srv]int vlan 1001
[Spine_02-Vlanif1001]dhcp select relay
[Spine_02-Vlanif1001]dhcp relay server-select dhcp_srv
[Spine_02-Vlanif1001]int vlan 1002
[Spine_02-Vlanif1002]undo ipv6 nd ra halt
[Spine_02-Vlanif1002]ipv6 nd autoconfig managed-address-flag
[Spine_02-Vlanif1002]ipv6 nd autoconfig other-flag
[Spine_02-Vlanif1002]dhcpv6 relay destination 2409:8086:5A0A:192:168:112:0:1
[Spine_02-Vlanif1002]int vlan 1003
[Spine_02-Vlanif1003]undo ipv6 nd ra halt
[Spine_02-Vlanif1003]ipv6 nd autoconfig managed-address-flag
[Spine_02-Vlanif1003]ipv6 nd autoconfig other-flag
[Spine_02-Vlanif1003]dhcp select relay
[Spine_02-Vlanif1003]dhcp relay server-select dhcp_srv
[Spine_02-Vlanif1003]dhcpv6 relay destination 2409:8086:5A0A:192:168:113:0:1
[Spine_02-Vlanif1003]int vlan 1004
[Spine_02-Vlanif1004]dhcp select relay
[Spine_02-Vlanif1004]dhcp relay server-select dhcp_srv
[Spine_02-Vlanif1004]qui
[Spine_02]

8、无线WLAN

	AC_01:
<AC6605>sys
[AC6605]un in en
[AC6605]sysname AC_01
[AC_01]vlan 1005
[AC_01-vlan1005]int vlan 1005
[AC_01-Vlanif1005]ip add 10.1.15.4 255.255.255.248
[AC_01-Vlanif1005]qui
[AC_01]int eth 3
[AC_01-Eth-Trunk3]port hybrid tagged vlan 1005
[AC_01-Eth-Trunk3]mode lacp-static
[AC_01-Eth-Trunk3]lacp timeout fast
[AC_01-Eth-Trunk3]trunkport g0/0/1
[AC_01-Eth-Trunk3]trunkport g0/0/2
[AC_01-Eth-Trunk3]qui
[AC_01]ip route-static 0.0.0.0 0.0.0.0 10.1.15.1
[AC_01]capwap source interface vlanif1005
[AC_01]wlan
[AC_01-wlan-view]ssid-profile name SSID_PRO
[AC_01-wlan-ssid-prof-SSID_PRO]ssid huawei
[AC_01-wlan-ssid-prof-SSID_PRO]qui
[AC_01-wlan-view]security-profile name SEC_PRO
[AC_01-wlan-sec-prof-SEC_PRO]security wpa2 psk pass-phrase huawei@123 aes
[AC_01-wlan-sec-prof-SEC_PRO]qui
[AC_01-wlan-view]ap-system-profile name AP1_PRO
[AC_01-wlan-ap-system-prof-AP1_PRO]primary-access ip-address 10.1.15.4
[AC_01-wlan-ap-system-prof-AP1_PRO]backup-access ip-address 10.1.15.5
[AC_01-wlan-ap-system-prof-AP1_PRO]qui
[AC_01-wlan-view]vap-profile name VAP1_PRO
[AC_01-wlan-vap-prof-VAP1_PRO]ssid-profile SSID_PRO
[AC_01-wlan-vap-prof-VAP1_PRO]security-profile SEC_PRO
[AC_01-wlan-vap-prof-VAP1_PRO]service-vlan vlan-id 1003
[AC_01-wlan-vap-prof-VAP1_PRO]qui
[AC_01-wlan-view]ap-id 1 ap-mac 00e0-fcae-1390
[AC_01-wlan-ap-1]qui
[AC_01-wlan-view]ap-id 1
[AC_01-wlan-ap-1]ap-name AREA_1
[AC_01-wlan-ap-1]ap-system-profile AP1_PRO
[AC_01-wlan-ap-1]vap-profile VAP1_PRO wlan 1 radio 0
[AC_01-wlan-ap-1]vap-profile VAP1_PRO wlan 1 radio 1
[AC_01-wlan-ap-1]qui
[AC_01-wlan-view]qui
[AC_01]
----------------------------------
	AC_02:
<AC6605>sys
[AC6605]un in en
[AC6605]sysname AC_02
[AC_02]vlan 1005
[AC_02-vlan1005]int vlan 1005
[AC_02-Vlanif1005]ip add 10.1.15.5 255.255.255.248
[AC_02-Vlanif1005]qui
[AC_02]int eth 3
[AC_02-Eth-Trunk3]port hybrid tagged vlan 1005
[AC_02-Eth-Trunk3]mode lacp-static
[AC_02-Eth-Trunk3]lacp timeout fast
[AC_02-Eth-Trunk3]trunkport g0/0/1
[AC_02-Eth-Trunk3]trunkport g0/0/2
[AC_02-Eth-Trunk3]qui
[AC_02]ip route-static 0.0.0.0 0.0.0.0 10.1.15.1
[AC_02]capwap source interface vlanif1005
[AC_02]wlan
[AC_02-wlan-view]ssid-profile name SSID_PRO
[AC_02-wlan-ssid-prof-SSID_PRO]ssid huawei
[AC_02-wlan-ssid-prof-SSID_PRO]qui
[AC_02-wlan-view]security-profile name SEC_PRO
[AC_02-wlan-sec-prof-SEC_PRO]security wpa2 psk pass-phrase huawei@123 aes
[AC_02-wlan-sec-prof-SEC_PRO]qui
[AC_02-wlan-view]ap-system-profile name AP1_PRO
[AC_02-wlan-ap-system-prof-AP1_PRO]primary-access ip-address 10.1.15.4
[AC_02-wlan-ap-system-prof-AP1_PRO]backup-access ip-address 10.1.15.5
[AC_02-wlan-ap-system-prof-AP1_PRO]qui
[AC_02-wlan-view]vap-profile name VAP1_PRO
[AC_02-wlan-vap-prof-VAP1_PRO]ssid-profile SSID_PRO
[AC_02-wlan-vap-prof-VAP1_PRO]security-profile SEC_PRO
[AC_02-wlan-vap-prof-VAP1_PRO]service-vlan vlan-id 1003
[AC_02-wlan-vap-prof-VAP1_PRO]qui
[AC_02-wlan-view]ap-id 1 ap-mac 00e0-fcae-1390
[AC_02-wlan-ap-1]qui
[AC_02-wlan-view]ap-id 1
[AC_02-wlan-ap-1]ap-name AREA_1
[AC_02-wlan-ap-1]ap-system-profile AP1_PRO
[AC_02-wlan-ap-1]vap-profile VAP1_PRO wlan 1 radio 0
[AC_02-wlan-ap-1]vap-profile VAP1_PRO wlan 1 radio 1
[AC_02-wlan-ap-1]qui
[AC_02-wlan-view]qui
[AC_02]

9、无线AC冗余

	AC1:
[AC_01]hsb-service 0
[AC_01-hsb-service-0]service-ip-port local-ip 10.1.15.4 peer-ip 10.1.15.5 local-data-port 10240 peer-data-port 10240
[AC_01-hsb-service-0]qui
[AC_01]hsb-service-type ap hsb-service 0
[AC_01]wlan
[AC_01-wlan-view]ac protect enable
Warning: This operation maybe cause AP reset, continue?[Y/N]:y
----------------------------------
AC2和AC1类似我就在文章里面不写了
这一部分在文章中省了，但是如果是
自己确实是小白没法自己配置出来那
可能就没有办法了，下载资源的话需要
收取一些费用，那里的order命令是没有省略的
一条一条一步一步的命令都是有的，也都是全的。
公众号（小猿网），回复“网络规划”即可
注:只是资源为消费资源，如不符合
您的消费观，还请您见谅

10、双机热备

admin
Admin@123
y
Admin@123
admin@123
admin@123

	FW1:
<USG6000V1>sys
[USG6000V1]un in en
[USG6000V1]sys FW1
[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet1/0/1
[FW1-zone-trust]add interface GigabitEthernet1/0/2
[FW1-zone-trust]undo add interface GigabitEthernet0/0/0
[FW1-zone-trust]qui
[FW1]firewall zone untrust
[FW1-zone-untrust]add interface GigabitEthernet1/0/3
[FW1-zone-untrust]add interface GigabitEthernet1/0/4
[FW1-zone-untrust]qui
[FW1]firewall zone dmz
[FW1-zone-dmz]add interface GigabitEthernet1/0/5
[FW1-zone-dmz]add interface GigabitEthernet1/0/6
[FW1-zone-dmz]qui
[FW1]int g0/0/0
[FW1-GigabitEthernet0/0/0]undo ip binding vpn-instance default
[FW1-GigabitEthernet0/0/0]undo alias
[FW1-GigabitEthernet0/0/0]qui
[FW1]int eth 1
[FW1-Eth-Trunk1]mode lacp-static
[FW1-Eth-Trunk1]lacp timeout fast
[FW1-Eth-Trunk1]trunkport g0/0/0
[FW1-Eth-Trunk1]trunkport g1/0/0
[FW1-Eth-Trunk1]qui
[FW1]firewall zone dmz
[FW1-zone-dmz]add interface Eth-Trunk1
[FW1-zone-dmz]qui
[FW1]ipv6
[FW1]int eth 1
[FW1-Eth-Trunk1]ip add 1.1.1.1 30
[FW1-Eth-Trunk1]int g1/0/1
[FW1-GigabitEthernet1/0/1]ipv6 enable
[FW1-GigabitEthernet1/0/1]ip add 192.168.121.2 30
[FW1-GigabitEthernet1/0/1]ipv6 address auto link-local
[FW1-GigabitEthernet1/0/1]int g1/0/2
[FW1-GigabitEthernet1/0/2]ipv6 enable
[FW1-GigabitEthernet1/0/2]ip add 192.168.123.2 30
[FW1-GigabitEthernet1/0/2]ipv6 address auto link-local
[FW1-GigabitEthernet1/0/2]int g1/0/3
[FW1-GigabitEthernet1/0/3]ipv6 enable
[FW1-GigabitEthernet1/0/3]ip add 192.168.125.2 30
[FW1-GigabitEthernet1/0/3]ipv6 address auto link-local
[FW1-GigabitEthernet1/0/3]int g1/0/4
[FW1-GigabitEthernet1/0/4]ipv6 enable
[FW1-GigabitEthernet1/0/4]ip add 192.168.126.2 30
[FW1-GigabitEthernet1/0/4]ipv6 address auto link-local
[FW1-GigabitEthernet1/0/4]int g1/0/5
[FW1-GigabitEthernet1/0/5]ipv6 enable
[FW1-GigabitEthernet1/0/5]ip add 192.168.116.2 30
[FW1-GigabitEthernet1/0/5]ipv6 address auto link-local
[FW1-GigabitEthernet1/0/5]int g1/0/6
[FW1-GigabitEthernet1/0/6]ipv6 enable
[FW1-GigabitEthernet1/0/6]ip add 192.168.118.2 30
[FW1-GigabitEthernet1/0/6]ipv6 address auto link-local
[FW1-GigabitEthernet1/0/6]int loo0
[FW1-LoopBack0]ip add 172.16.0.102 32
[FW1-LoopBack0]int loo100
[FW1-LoopBack100]ip add 223.73.54.0 32
[FW1-LoopBack100]int loo101
[FW1-LoopBack101]ipv6 enable
[FW1-LoopBack101]ipv6 address 2409:8A55:936:1AE0:B04D:C0DD:94F7:0/128
[FW1-LoopBack101]qui
[FW1]hrp interface Eth-Trunk1 remote 1.1.1.2
[FW1]hrp mirror session enable
[FW1]hrp nat resource primary-group
[FW1]hrp standby config enable
[FW1]undo hrp track trunk-member enable
[FW1]hrp track interface GigabitEthernet1/0/1
[FW1]hrp track interface GigabitEthernet1/0/2
[FW1]hrp track interface GigabitEthernet1/0/3
[FW1]hrp track interface GigabitEthernet1/0/4
[FW1]hrp track interface GigabitEthernet1/0/5
[FW1]hrp track interface GigabitEthernet1/0/6
[FW1]hrp enable
HRP_S[FW1]
----------------------------------
	FW2:
<USG6000V1>sys
[USG6000V1]un in en
[USG6000V1]sys FW2
[FW2]firewall zone trust
[FW2-zone-trust]add interface GigabitEthernet1/0/1
[FW2-zone-trust]add interface GigabitEthernet1/0/2
[FW2-zone-trust]undo add interface GigabitEthernet0/0/0
[FW2-zone-trust]qui
[FW2]firewall zone untrust
[FW2-zone-untrust]add interface GigabitEthernet1/0/3
[FW2-zone-untrust]add interface GigabitEthernet1/0/4
[FW2-zone-untrust]qui
[FW2]firewall zone dmz
[FW2-zone-dmz]add interface GigabitEthernet1/0/5
[FW2-zone-dmz]add interface GigabitEthernet1/0/6
[FW2-zone-dmz]qui
[FW2]int g0/0/0
[FW2-GigabitEthernet0/0/0]undo ip binding vpn-instance default
[FW2-GigabitEthernet0/0/0]undo alias
[FW2-GigabitEthernet0/0/0]qui
[FW2]int eth 1
[FW2-Eth-Trunk1]mode lacp-static
[FW2-Eth-Trunk1]lacp timeout fast
[FW2-Eth-Trunk1]trunkport g0/0/0
[FW2-Eth-Trunk1]trunkport g1/0/0
[FW2-Eth-Trunk1]qui
[FW2]firewall zone dmz
[FW2-zone-dmz]add interface Eth-Trunk1
[FW2-zone-dmz]qui
[FW2]ipv6
[FW2]int eth 1
[FW2-Eth-Trunk1]ip add 1.1.1.2 30
[FW2-Eth-Trunk1]int g1/0/1
[FW2-GigabitEthernet1/0/1]ipv6 enable
[FW2-GigabitEthernet1/0/1]ip add 192.168.122.2 30
[FW2-GigabitEthernet1/0/1]ipv6 address auto link-local
[FW2-GigabitEthernet1/0/1]int g1/0/2
[FW2-GigabitEthernet1/0/2]ipv6 enable
[FW2-GigabitEthernet1/0/2]ip add 192.168.124.2 30
[FW2-GigabitEthernet1/0/2]ipv6 address auto link-local
[FW2-GigabitEthernet1/0/2]int g1/0/3
[FW2-GigabitEthernet1/0/3]ipv6 enable
[FW2-GigabitEthernet1/0/3]ip add 192.168.127.2 30
[FW2-GigabitEthernet1/0/3]ipv6 address auto link-local
[FW2-GigabitEthernet1/0/3]int g1/0/4
[FW2-GigabitEthernet1/0/4]ipv6 enable
[FW2-GigabitEthernet1/0/4]ip add 192.168.128.2 30
[FW2-GigabitEthernet1/0/4]ipv6 address auto link-local
[FW2-GigabitEthernet1/0/4]int g1/0/5
[FW2-GigabitEthernet1/0/5]ipv6 enable
[FW2-GigabitEthernet1/0/5]ip add 192.168.117.2 30
[FW2-GigabitEthernet1/0/5]ipv6 address auto link-local
[FW2-GigabitEthernet1/0/5]int g1/0/6
[FW2-GigabitEthernet1/0/6]ipv6 enable
[FW2-GigabitEthernet1/0/6]ip add 192.168.119.2 30
[FW2-GigabitEthernet1/0/6]ipv6 address auto link-local
[FW2-GigabitEthernet1/0/6]int loo0
[FW2-LoopBack0]ip add 172.16.0.103 32
[FW2-LoopBack0]int loo100
[FW2-LoopBack100]ip add 223.73.54.0 32
[FW2-LoopBack100]int loo101
[FW2-LoopBack101]ipv6 enable
[FW2-LoopBack101]ipv6 address 2409:8A55:936:1AE0:B04D:C0DD:94F7:0/128
[FW2-LoopBack101]qui
[FW2]hrp standby-device
[FW2]hrp interface Eth-Trunk1 remote 1.1.1.1
[FW2]hrp mirror session enable
[FW2]hrp nat resource secondary-group
[FW2]hrp standby config enable
[FW2]undo hrp track trunk-member enable
[FW2]hrp track interface GigabitEthernet1/0/1
[FW2]hrp track interface GigabitEthernet1/0/2
[FW2]hrp track interface GigabitEthernet1/0/3
[FW2]hrp track interface GigabitEthernet1/0/4
[FW2]hrp track interface GigabitEthernet1/0/5
[FW2]hrp track interface GigabitEthernet1/0/6
[FW2]hrp enable
HRP_S[FW2]

11、安全策略

	FW1(FW2一样的，双机热备自动同步至FW2):
HRP_M[FW1]security-policy (+B)
HRP_M[FW1-policy-security] rule name ospf (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-zone local (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-zone trust (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-zone untrust (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-zone local (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-zone trust (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address 192.168.121.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address 192.168.122.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address 192.168.123.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address 192.168.124.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address 192.168.125.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address 192.168.126.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address 192.168.127.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address 192.168.128.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  source-address FE80:: 10 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address 192.168.121.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address 192.168.122.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address 192.168.123.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address 192.168.124.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address 192.168.125.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address 192.168.126.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address 192.168.127.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address 192.168.128.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-ospf]  destination-address FE80:: 10 (+B)
HRP_M[FW1-policy-security-rule-ospf]  service ospf (+B)
HRP_M[FW1-policy-security-rule-ospf]  action permit (+B)
HRP_M[FW1-policy-security-rule-ospf] rule name bfd (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-zone local (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-zone trust (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-zone untrust (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-zone local (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-zone trust (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address 192.168.121.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address 192.168.122.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address 192.168.123.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address 192.168.124.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address 192.168.125.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address 192.168.126.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address 192.168.127.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address 192.168.128.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  source-address FE80:: 10 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address 192.168.121.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address 192.168.122.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address 192.168.123.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address 192.168.124.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address 192.168.125.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address 192.168.126.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address 192.168.127.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address 192.168.128.0 mask 255.255.255.252 (+B)
HRP_M[FW1-policy-security-rule-bfd]  destination-address FE80:: 10 (+B)
HRP_M[FW1-policy-security-rule-bfd]  service protocol udp destination-port 3784 (+B)
HRP_M[FW1-policy-security-rule-bfd]  action permit (+B)
HRP_M[FW1-policy-security-rule-bfd] rule name dhcp_srv (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  source-zone trust (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-zone dmz (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-address 192.168.112.2 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-address 192.168.113.2 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-address 2409:8086:5A0A:192:168:112:0:1 128 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-address 2409:8086:5A0A:192:168:113:0:1 128 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service icmp (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service icmpv6 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service protocol udp destination-port 546 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service protocol udp destination-port 547 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service protocol udp destination-port 67 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service protocol udp destination-port 68 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  action permit (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv] rule name dhcp_srv (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  source-zone trust (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-zone dmz (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-address 192.168.112.2 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-address 192.168.113.2 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-address 2409:8086:5A0A:192:168:112:0:1 128 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  destination-address 2409:8086:5A0A:192:168:113:0:1 128 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service icmp (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service icmpv6 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service protocol udp destination-port 546 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service protocol udp destination-port 547 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service protocol udp destination-port 67 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  service protocol udp destination-port 68 (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]  action permit (+B)
HRP_M[FW1-policy-security-rule-dhcp_srv]qui
HRP_M[FW1-policy-security]qui
HRP_M[FW1]

12、OSPF&OSPFv3

这一部分要不我就先不放在文章中，
配置的设备主要是Spine_01/Spine_02/
FW1/FW2/RT_01/RT_02的OSPF/OSPFv3的配置

这一部分在文章中省了，但是如果是
自己确实是小白没法自己配置出来那
可能就没有办法了，下载资源的话需要
收取一些费用，那里的order命令是没有省略的
一条一条一步一步的命令都是有的，也都是全的。
公众号（小猿网），回复“网络规划”即可
注:只是资源为消费资源，如不符合
您的消费观，还请您见谅

13、路由策略

这一部分要不我就先不放在文章中，
配置的设备主要是Spine_01/Spine_02/
FW1/FW2的路由策略的配置，把下面的
路由引入到上面即可

这一部分在文章中省了，但是如果是
自己确实是小白没法自己配置出来那
可能就没有办法了，下载资源的话需要
收取一些费用，那里的order命令是没有省略的
一条一条一步一步的命令都是有的，也都是全的。
注:只是资源为消费资源，如不符合
您的消费观，还请您见谅

14、OSPF路由发布

	FW1:
HRP_M[FW1]ip route-static 223.73.54.0 255.255.255.0 NULL0
HRP_M[FW1]ipv6 route-static 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 112 NULL0
HRP_M[FW1]
-------------------------------------
	FW2:
HRP_S[FW2]ip route-static 223.73.54.0 255.255.255.0 NULL0
HRP_S[FW2]ipv6 route-static 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 112 NULL0
HRP_S[FW2]

15、BGP

	RT_01:
[RT_01]bgp 65001
[RT_01-bgp] router-id 183.26.96.1
[RT_01-bgp] peer 172.16.0.105 as-number 65001
[RT_01-bgp] peer 172.16.0.105 connect-interface LoopBack0
[RT_01-bgp] peer 172.16.0.105 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[RT_01-bgp] peer 172.16.0.105 bfd enable
[RT_01-bgp] peer 183.26.96.2 as-number 9808
[RT_01-bgp] peer 183.26.96.2 connect-interface Ethernet3/0/0
[RT_01-bgp] peer 183.26.96.2 password cipher huawei@123
[RT_01-bgp] peer 183.26.96.2 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[RT_01-bgp] peer 183.26.96.2 bfd enable
[RT_01-bgp] peer 2409:8055:5C00:0:2800::1 as-number 9808
[RT_01-bgp] peer 2409:8055:5C00:0:2800::1 connect-interface Ethernet3/0/0
[RT_01-bgp] peer 2409:8055:5C00:0:2800::1 password cipher huawei@123
[RT_01-bgp] peer 2409:8086:5A0A:172:16::105 as-number 65001
[RT_01-bgp] peer 2409:8086:5A0A:172:16::105 connect-interface LoopBack0
[RT_01-bgp] ipv4-family unicast
[RT_01-bgp-af-ipv4]  peer 172.16.0.105 enable
[RT_01-bgp-af-ipv4]  peer 172.16.0.105 next-hop-local
[RT_01-bgp-af-ipv4]  peer 183.26.96.2 enable
[RT_01-bgp-af-ipv4] ipv6-family unicast
[RT_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800::1 enable
[RT_01-bgp-af-ipv6]  peer 2409:8086:5A0A:172:16::105 enable
[RT_01-bgp-af-ipv6]  peer 2409:8086:5A0A:172:16::105 next-hop-local
[RT_01-bgp-af-ipv6] qui
[RT_01-bgp]qui
[RT_01]
-------------------------------------
	RT_02:
[RT_02]bgp 65001
[RT_02-bgp] router-id 183.26.96.5
[RT_02-bgp] peer 172.16.0.104 as-number 65001
[RT_02-bgp] peer 172.16.0.104 connect-interface LoopBack0
[RT_02-bgp] peer 172.16.0.104 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[RT_02-bgp] peer 172.16.0.104 bfd enable
[RT_02-bgp] peer 183.26.96.6 as-number 9808
[RT_02-bgp] peer 183.26.96.6 connect-interface Ethernet3/0/0
[RT_02-bgp] peer 183.26.96.6 password cipher huawei@123
[RT_02-bgp] peer 183.26.96.6 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[RT_02-bgp] peer 183.26.96.6 bfd enable
[RT_02-bgp] peer 2409:8055:5C00:0:2800::3 as-number 9808
[RT_02-bgp] peer 2409:8055:5C00:0:2800::3 connect-interface Ethernet3/0/0
[RT_02-bgp] peer 2409:8055:5C00:0:2800::3 password cipher huawei@123
[RT_02-bgp] peer 2409:8086:5A0A:172:16::104 as-number 65001
[RT_02-bgp] peer 2409:8086:5A0A:172:16::104 connect-interface LoopBack0
[RT_02-bgp] ipv4-family unicast
[RT_02-bgp-af-ipv4]  peer 172.16.0.104 enable
[RT_02-bgp-af-ipv4]  peer 172.16.0.104 next-hop-local
[RT_02-bgp-af-ipv4]  peer 183.26.96.6 enable
[RT_02-bgp-af-ipv4] ipv6-family unicast
[RT_02-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800::3 enable
[RT_02-bgp-af-ipv6]  peer 2409:8086:5A0A:172:16::104 enable
[RT_02-bgp-af-ipv6]  peer 2409:8086:5A0A:172:16::104 next-hop-local
[RT_02-bgp-af-ipv6]qui
[RT_02-bgp]qui
[RT_02]

16、BGP路由发布

	RT_01:
[RT_01]bgp 65001
[RT_01-bgp]ipv4-family unicast
[RT_01-bgp-af-ipv4]network 223.73.54.0
[RT_01-bgp-af-ipv4]qui
[RT_01-bgp]ipv6-family unicast
[RT_01-bgp-af-ipv6]network 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 112
[RT_01-bgp-af-ipv6]network 2409:8086:5A0A:10:1:12:: 112
[RT_01-bgp-af-ipv6]network 2409:8086:5A0A:10:1:13:: 112
[RT_01-bgp-af-ipv6]qui
[RT_01-bgp]qui
[RT_01]
-------------------------------------
	RT_02:
[RT_02]bgp 65001
[RT_02-bgp]ipv4-family unicast
[RT_02-bgp-af-ipv4]network 223.73.54.0
[RT_02-bgp-af-ipv4]qui
[RT_02-bgp]ipv6-family unicast
[RT_02-bgp-af-ipv6]network 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 112
[RT_02-bgp-af-ipv6]network 2409:8086:5A0A:10:1:12:: 112
[RT_02-bgp-af-ipv6]network 2409:8086:5A0A:10:1:13:: 112
[RT_02-bgp-af-ipv6]qui
[RT_02-bgp]qui
[RT_02]

17、6to4隧道

	FW1:
HRP_M[FW1]interface Tunnel0 (+B)
HRP_M[FW1-Tunnel0] description 6TO4
HRP_M[FW1-Tunnel0] ipv6 enable (+B)
HRP_M[FW1-Tunnel0] ipv6 address FD00:100::1/64
HRP_M[FW1-Tunnel0] ipv6 address auto link-local (+B)
HRP_M[FW1-Tunnel0] tunnel-protocol ipv6-ipv4
HRP_M[FW1-Tunnel0] source LoopBack100
HRP_M[FW1-Tunnel0] destination 183.73.54.182
HRP_M[FW1-Tunnel0] undo service-manage enable (+B)
HRP_M[FW1-Tunnel0]qui
HRP_M[FW1]ipv6 route-static 2001:DB8:888:1:: 112 Tunnel0
HRP_M[FW1]firewall zone name FZ_01
HRP_M[FW1-zone-FZ_01] set priority 45 (+B)
HRP_M[FW1-zone-FZ_01] add interface Tunnel0 (+B)
HRP_M[FW1-zone-FZ_01]qui
HRP_M[FW1]security-policy (+B)
HRP_M[FW1-policy-security] rule name 6_to_4_tunnel (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  source-zone local (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  source-zone untrust (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  destination-zone local (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  source-address 183.73.54.182 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  source-address 223.73.54.0 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  destination-address 183.73.54.182 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  destination-address 223.73.54.0 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel]  action permit (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel] rule name 6_to_4_tunnel_ip (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  source-zone FZ_01 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  source-zone local (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  destination-zone FZ_01 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  destination-zone local (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  source-address FD00:100::1 128 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  source-address FD00:100::2 128 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  destination-address FD00:100::1 128 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  destination-address FD00:100::2 128 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip]  action permit (+B)
HRP_M[FW1-policy-security-rule-6_to_4_tunnel_ip] rule name 6_to_4_service_in (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_in]  source-zone FZ_01 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_in]  destination-zone trust (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_in]  source-address 2001:DB8:888:1:: 112 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_in]  destination-address 2409:8086:5A0A:10:1:12:: 112 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_in]  destination-address 2409:8086:5A0A:10:1:13:: 112 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_in]  action permit (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_in] rule name 6_to_4_service_out (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_out]  source-zone trust (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_out]  destination-zone FZ_01 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_out]  source-address 2409:8086:5A0A:10:1:12:: 112 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_out]  source-address 2409:8086:5A0A:10:1:13:: 112 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_out]  destination-address 2001:DB8:888:1:: 112 (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_out]  action permit (+B)
HRP_M[FW1-policy-security-rule-6_to_4_service_out] rule name fz_01_to_untrust_out (+B)
HRP_M[FW1-policy-security-rule-fz_01_to_untrust_out]  source-zone FZ_01 (+B)
HRP_M[FW1-policy-security-rule-fz_01_to_untrust_out]  destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-fz_01_to_untrust_out]  source-address 2001:DB8:888:1:: 112 (+B)
HRP_M[FW1-policy-security-rule-fz_01_to_untrust_out]  action permit (+B)
HRP_M[FW1-policy-security-rule-fz_01_to_untrust_out]qui
HRP_M[FW1-policy-security]qui
HRP_M[FW1]
-------------------------------------
	FW2:
HRP_S[FW2]interface Tunnel0 (+B)
HRP_S[FW2-Tunnel0] description 6TO4
HRP_S[FW2-Tunnel0] ipv6 enable (+B)
HRP_S[FW2-Tunnel0] ipv6 address FD00:100::1/64
HRP_S[FW2-Tunnel0] ipv6 address auto link-local (+B)
HRP_S[FW2-Tunnel0] tunnel-protocol ipv6-ipv4
HRP_S[FW2-Tunnel0] source LoopBack100
HRP_S[FW2-Tunnel0] destination 183.73.54.182
HRP_S[FW2-Tunnel0] undo service-manage enable (+B)
HRP_S[FW2-Tunnel0]qui
HRP_S[FW2]ipv6 route-static 2001:DB8:888:1:: 112 Tunnel0
HRP_S[FW2]firewall zone name FZ_01
HRP_S[FW2-zone-FZ_01] set priority 45 (+B)
HRP_S[FW2-zone-FZ_01] add interface Tunnel0 (+B)
HRP_S[FW2-zone-FZ_01]qui
HRP_S[FW2]security-policy (+B)
HRP_S[FW2-policy-security] rule name 6_to_4_tunnel (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  source-zone local (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  source-zone untrust (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  destination-zone local (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  destination-zone untrust (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  source-address 183.73.54.182 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  source-address 223.73.54.0 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  destination-address 183.73.54.182 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  destination-address 223.73.54.0 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel]  action permit (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel] rule name 6_to_4_tunnel_ip (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  source-zone FZ_01 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  source-zone local (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  destination-zone FZ_01 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  destination-zone local (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  source-address FD00:100::1 128 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  source-address FD00:100::2 128 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  destination-address FD00:100::1 128 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  destination-address FD00:100::2 128 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip]  action permit (+B)
HRP_S[FW2-policy-security-rule-6_to_4_tunnel_ip] rule name 6_to_4_service_in (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_in]  source-zone FZ_01 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_in]  destination-zone trust (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_in]  source-address 2001:DB8:888:1:: 112 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_in]  destination-address 2409:8086:5A0A:10:1:12:: 112 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_in]  destination-address 2409:8086:5A0A:10:1:13:: 112 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_in]  action permit (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_in] rule name 6_to_4_service_out (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_out]  source-zone trust (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_out]  destination-zone FZ_01 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_out]  source-address 2409:8086:5A0A:10:1:12:: 112 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_out]  source-address 2409:8086:5A0A:10:1:13:: 112 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_out]  destination-address 2001:DB8:888:1:: 112 (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_out]  action permit (+B)
HRP_S[FW2-policy-security-rule-6_to_4_service_out] rule name fz_01_to_untrust_out (+B)
HRP_S[FW2-policy-security-rule-fz_01_to_untrust_out]  source-zone FZ_01 (+B)
HRP_S[FW2-policy-security-rule-fz_01_to_untrust_out]  destination-zone untrust (+B)
HRP_S[FW2-policy-security-rule-fz_01_to_untrust_out]  source-address 2001:DB8:888:1:: 112 (+B)
HRP_S[FW2-policy-security-rule-fz_01_to_untrust_out]  action permit (+B)
HRP_S[FW2-policy-security-rule-fz_01_to_untrust_out]qui
HRP_S[FW2-policy-security]qui
HRP_S[FW2]

18、分支路由发布

	FW1:
HRP_M[FW1]ip ipv6-prefix tic_static_to_ospfv3_100 index 20 permit 2001:DB8:888:1:: 112
HRP_M[FW1]
-------------------------------------
	FW2:
HRP_S[FW2]ip ipv6-prefix tic_static_to_ospfv3_100 index 20 permit 2001:DB8:888:1:: 112
HRP_S[FW2]
-------------------------------------
	RT_01:
[RT_01]bgp 65001
[RT_01-bgp] ipv6-family unicast
[RT_01-bgp-af-ipv6]  network 2001:DB8:888:1:: 112
[RT_01-bgp-af-ipv6]  qui
[RT_01-bgp]
-------------------------------------
	RT_02:
[RT_02]bgp 65001
[RT_02-bgp] ipv6-family unicast
[RT_02-bgp-af-ipv6]  network 2001:DB8:888:1:: 112
[RT_02-bgp-af-ipv6]  qui
[RT_02-bgp]

19、4to6隧道

	FW1:
HRP_M[FW1]interface Tunnel1 (+B)
HRP_M[FW1-Tunnel1] description 4TO6
HRP_M[FW1-Tunnel1] ip address 10.10.10.1 255.255.255.252
HRP_M[FW1-Tunnel1] tunnel-protocol ipv4-ipv6
HRP_M[FW1-Tunnel1] source 2409:8A55:936:1AE0:B04D:C0DD:94F7:0
HRP_M[FW1-Tunnel1] destination 2409:8A55:934:A7E0:5513:489C:8F5:1
HRP_M[FW1-Tunnel1] undo service-manage enable (+B)
HRP_M[FW1-Tunnel1]qui
HRP_M[FW1]ip route-static 172.16.89.0 255.255.255.0 Tunnel1
HRP_M[FW1]firewall zone name FZ_02
HRP_M[FW1-zone-FZ_02] set priority 46 (+B)
HRP_M[FW1-zone-FZ_02] add interface Tunnel1 (+B)
HRP_M[FW1-zone-FZ_02]qui
HRP_M[FW1]security-policy (+B)
HRP_M[FW1-policy-security] rule name 4_to_6_tunnel (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  source-zone local (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  source-zone untrust (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  destination-zone local (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  source-address 2409:8A55:934:A7E0:5513:489C:8F5:1 128 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  source-address 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 128 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  destination-address 2409:8A55:934:A7E0:5513:489C:8F5:1 128 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  destination-address 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 128 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel]  action permit (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel] rule name 4_to_6_tunnel_ip (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  source-zone FZ_02 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  source-zone local (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  destination-zone FZ_02 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  destination-zone local (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  source-address 10.10.10.1 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  source-address 10.10.10.2 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  destination-address 10.10.10.1 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  destination-address 10.10.10.2 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip]  action permit (+B)
HRP_M[FW1-policy-security-rule-4_to_6_tunnel_ip] rule name 4_to_6_service_in (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_in]  source-zone FZ_02 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_in]  destination-zone trust (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_in]  source-address 172.16.89.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_in]  destination-address 10.1.11.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_in]  destination-address 10.1.13.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_in]  action permit (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_in] rule name 4_to_6_service_out (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_out]  source-zone trust (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_out]  destination-zone FZ_02 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_out]  source-address 10.1.11.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_out]  source-address 10.1.13.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_out]  destination-address 172.16.89.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_out]  action permit (+B)
HRP_M[FW1-policy-security-rule-4_to_6_service_out] qui
HRP_M[FW1-policy-security]qui
HRP_M[FW1]
--------------------------------------
 	FW2:
HRP_S[FW2]interface Tunnel1 (+B)
HRP_S[FW2-Tunnel1] description 4TO6
HRP_S[FW2-Tunnel1] ip address 10.10.10.1 255.255.255.252
HRP_S[FW2-Tunnel1] tunnel-protocol ipv4-ipv6
HRP_S[FW2-Tunnel1] source 2409:8A55:936:1AE0:B04D:C0DD:94F7:0
HRP_S[FW2-Tunnel1] destination 2409:8A55:934:A7E0:5513:489C:8F5:1
HRP_S[FW2-Tunnel1] undo service-manage enable (+B)
HRP_S[FW2-Tunnel1]qui
HRP_S[FW2]ip route-static 172.16.89.0 255.255.255.0 Tunnel1
HRP_S[FW2]firewall zone name FZ_02
HRP_S[FW2-zone-FZ_02] set priority 46 (+B)
HRP_S[FW2-zone-FZ_02] add interface Tunnel1 (+B)
HRP_S[FW2-zone-FZ_02]qui
HRP_S[FW2]security-policy (+B)
HRP_S[FW2-policy-security] rule name 4_to_6_tunnel (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  source-zone local (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  source-zone untrust (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  destination-zone local (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  destination-zone untrust (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  source-address 2409:8A55:934:A7E0:5513:489C:8F5:1 128 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  source-address 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 128 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  destination-address 2409:8A55:934:A7E0:5513:489C:8F5:1 128 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  destination-address 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 128 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel]  action permit (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel] rule name 4_to_6_tunnel_ip (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  source-zone FZ_02 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  source-zone local (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  destination-zone FZ_02 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  destination-zone local (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  source-address 10.10.10.1 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  source-address 10.10.10.2 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  destination-address 10.10.10.1 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  destination-address 10.10.10.2 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip]  action permit (+B)
HRP_S[FW2-policy-security-rule-4_to_6_tunnel_ip] rule name 4_to_6_service_in (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_in]  source-zone FZ_02 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_in]  destination-zone trust (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_in]  source-address 172.16.89.0 ma
sk 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_in]  destination-address 10.1.11.0
 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_in]  destination-address 10.1.13.0
 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_in]  action permit (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_in] rule name 4_to_6_service_out (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_out]  source-zone trust (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_out]  destination-zone FZ_02 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_out]  source-address 10.1.11.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_out]  source-address 10.1.13.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_out]  destination-address 172.16.89.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_out]  action permit (+B)
HRP_S[FW2-policy-security-rule-4_to_6_service_out] qui
HRP_S[FW2-policy-security]qui
HRP_S[FW2]

20、NAT44

	FW1:
HRP_M[FW1]nat address-group snat44 0
HRP_M[FW1-address-group-snat44] mode pat (+B)
HRP_M[FW1-address-group-snat44] section 0 223.73.54.128 223.73.54.140
HRP_M[FW1-address-group-snat44]qui
HRP_M[FW1]nat-policy (+B)
HRP_M[FW1-policy-nat] rule name snat44 (+B)
HRP_M[FW1-policy-nat-rule-snat44]  source-zone FZ_02 (+B)
HRP_M[FW1-policy-nat-rule-snat44]  source-zone trust (+B)
HRP_M[FW1-policy-nat-rule-snat44]  destination-zone untrust (+B)
HRP_M[FW1-policy-nat-rule-snat44]  source-address 10.1.11.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-nat-rule-snat44]  source-address 10.1.13.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-nat-rule-snat44]  source-address 172.16.89.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-nat-rule-snat44]  action source-nat address-group snat44 (+B)
HRP_M[FW1-policy-nat-rule-snat44]qui
HRP_M[FW1-policy-nat]qui
HRP_M[FW1]security-policy (+B)
HRP_M[FW1-policy-security] rule name fz_02_to_untrust_out (+B)
HRP_M[FW1-policy-security-rule-fz_02_to_untrust_out]  source-zone FZ_02 (+B)
HRP_M[FW1-policy-security-rule-fz_02_to_untrust_out]  destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-fz_02_to_untrust_out]  source-address 172.16.89.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-fz_02_to_untrust_out]  action permit (+B)
HRP_M[FW1-policy-security-rule-fz_02_to_untrust_out] rule name trust_to_untrust_out (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust_out]  source-zone trust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust_out]  destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust_out]  source-address 10.1.11.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust_out]  source-address 10.1.13.0 mask 255.255.255.0 (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust_out]  source-address 2409:8086:5A0A:10:1:12:: 112 (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust_out]  source-address 2409:8086:5A0A:10:1:13:: 112 (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust_out]  action permit (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust_out]qui
HRP_M[FW1-policy-security]qui
HRP_M[FW1]
--------------------------------------
 	FW2:
HRP_S[FW2]nat address-group snat44 0
HRP_S[FW2-address-group-snat44] mode pat (+B)
HRP_S[FW2-address-group-snat44] section 0 223.73.54.128 223.73.54.140
HRP_S[FW2-address-group-snat44]qui
HRP_S[FW2]nat-policy (+B)
HRP_S[FW2-policy-nat] rule name snat44 (+B)
HRP_S[FW2-policy-nat-rule-snat44]  source-zone FZ_02 (+B)
HRP_S[FW2-policy-nat-rule-snat44]  source-zone trust (+B)
HRP_S[FW2-policy-nat-rule-snat44]  destination-zone untrust (+B)
HRP_S[FW2-policy-nat-rule-snat44]  source-address 10.1.11.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-nat-rule-snat44]  source-address 10.1.13.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-nat-rule-snat44]  source-address 172.16.89.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-nat-rule-snat44]  action source-nat address-group snat44 (+B)
HRP_S[FW2-policy-nat-rule-snat44]qui
HRP_S[FW2-policy-nat]qui
HRP_S[FW2]security-policy (+B)
HRP_S[FW2-policy-security] rule name fz_02_to_untrust_out (+B)
HRP_S[FW2-policy-security-rule-fz_02_to_untrust_out]  source-zone FZ_02 (+B)
HRP_S[FW2-policy-security-rule-fz_02_to_untrust_out]  destination-zone untrust (+B)
HRP_S[FW2-policy-security-rule-fz_02_to_untrust_out]  source-address 172.16.89.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-fz_02_to_untrust_out]  action permit (+B)
HRP_S[FW2-policy-security-rule-fz_02_to_untrust_out] rule name trust_to_untrust_out (+B)
HRP_S[FW2-policy-security-rule-trust_to_untrust_out]  source-zone trust (+B)
HRP_S[FW2-policy-security-rule-trust_to_untrust_out]  destination-zone untrust (+B)
HRP_S[FW2-policy-security-rule-trust_to_untrust_out]  source-address 10.1.11.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-trust_to_untrust_out]  source-address 10.1.13.0 mask 255.255.255.0 (+B)
HRP_S[FW2-policy-security-rule-trust_to_untrust_out]  source-address 2409:8086:5A0A:10:1:12:: 112 (+B)
HRP_S[FW2-policy-security-rule-trust_to_untrust_out]  source-address 2409:8086:5A0A:10:1:13:: 112 (+B)
HRP_S[FW2-policy-security-rule-trust_to_untrust_out]  action permit (+B)
HRP_S[FW2-policy-security-rule-trust_to_untrust_out]qui
HRP_S[FW2-policy-security]qui
HRP_S[FW2]

21、NAT server

	FW1:
HRP_M[FW1]nat server 0 global 223.73.54.100 inside 10.1.11.254 no-reverse
HRP_M[FW1]security-policy (+B)
HRP_M[FW1-policy-security] rule name Untrust_to_Trust_dnat (+B)
HRP_M[FW1-policy-security-rule-Untrust_to_Trust_dnat]  source-zone untrust (+B)
HRP_M[FW1-policy-security-rule-Untrust_to_Trust_dnat]  destination-zone trust (+B)
HRP_M[FW1-policy-security-rule-Untrust_to_Trust_dnat]  destination-address 10.1.11.254 mask 255.255.255.255 (+B)
HRP_M[FW1-policy-security-rule-Untrust_to_Trust_dnat]  action permit (+B)
HRP_M[FW1-policy-security-rule-Untrust_to_Trust_dnat]qui
HRP_M[FW1-policy-security]qui
HRP_M[FW1]
--------------------------------------
	FW2:
HRP_S[FW2]nat server 0 global 223.73.54.100 inside 10.1.11.254 no-reverse
HRP_S[FW2]security-policy (+B)
HRP_S[FW2-policy-security] rule name Untrust_to_Trust_dnat (+B)
HRP_S[FW2-policy-security-rule-Untrust_to_Trust_dnat]  source-zone untrust (+B)
HRP_S[FW2-policy-security-rule-Untrust_to_Trust_dnat]  destination-zone trust (+B)
HRP_S[FW2-policy-security-rule-Untrust_to_Trust_dnat]  destination-address 10.1.11.254 mask 255.255.255.255 (+B)
HRP_S[FW2-policy-security-rule-Untrust_to_Trust_dnat]  action permit (+B)
HRP_S[FW2-policy-security-rule-Untrust_to_Trust_dnat]qui
HRP_S[FW2-policy-security]qui
HRP_S[FW2]

22、流量路径

Site a访问DMZ
PC>Spine_01_or_Spine_02>FW1_or_FW2>DMZ_SW_or_DMZ_02
Site a访问Site b v6
PC>Spine_01_or_Spine_02>FW1_or_FW2>FZ1>FZ_01_SW>PC
Site a访问Site c v4
PC>Spine_01_or_Spine_02>FW1_or_FW2>FZ2>FZ_02_SW>PC

Site DMZ

1、vlan划分

	DMZ_SW_01:
<Huawei>sys
[Huawei]un in en
[Huawei]sys DMZ_SW_01
[DMZ_SW_01]vlan batch 111 to 112 114 116 to 117
[DMZ_SW_01]int g0/0/1
[DMZ_SW_01-GigabitEthernet0/0/1] port link-type access
[DMZ_SW_01-GigabitEthernet0/0/1] port default vlan 116
[DMZ_SW_01-GigabitEthernet0/0/1]int g0/0/2
[DMZ_SW_01-GigabitEthernet0/0/2] port link-type access
[DMZ_SW_01-GigabitEthernet0/0/2] port default vlan 117
[DMZ_SW_01-GigabitEthernet0/0/2]int g0/0/3
[DMZ_SW_01-GigabitEthernet0/0/3] port link-type access
[DMZ_SW_01-GigabitEthernet0/0/3] port default vlan 111
[DMZ_SW_01-GigabitEthernet0/0/3]int g0/0/4
[DMZ_SW_01-GigabitEthernet0/0/4] port link-type access
[DMZ_SW_01-GigabitEthernet0/0/4] port default vlan 112
[DMZ_SW_01-GigabitEthernet0/0/4]int g0/0/5
[DMZ_SW_01-GigabitEthernet0/0/5] port link-type access
[DMZ_SW_01-GigabitEthernet0/0/5] port default vlan 114
[DMZ_SW_01-GigabitEthernet0/0/5]qui
[DMZ_SW_01]
--------------------------------------
	DMZ_SW_02:
<Huawei>sys
[Huawei]un in en
[Huawei]sys DMZ_SW_02
[DMZ_SW_02]vlan batch 111 113 115 118 to 119
[DMZ_SW_02]int g0/0/1
[DMZ_SW_02-GigabitEthernet0/0/1] port link-type access
[DMZ_SW_02-GigabitEthernet0/0/1] port default vlan 118
[DMZ_SW_02-GigabitEthernet0/0/1]int g0/0/2
[DMZ_SW_02-GigabitEthernet0/0/2] port link-type access
[DMZ_SW_02-GigabitEthernet0/0/2] port default vlan 119
[DMZ_SW_02-GigabitEthernet0/0/2]int g0/0/3
[DMZ_SW_02-GigabitEthernet0/0/3] port link-type access
[DMZ_SW_02-GigabitEthernet0/0/3] port default vlan 111
[DMZ_SW_02-GigabitEthernet0/0/3]int g0/0/4
[DMZ_SW_02-GigabitEthernet0/0/4] port link-type access
[DMZ_SW_02-GigabitEthernet0/0/4] port default vlan 113
[DMZ_SW_02-GigabitEthernet0/0/4]int g0/0/5
[DMZ_SW_02-GigabitEthernet0/0/5] port link-type access
[DMZ_SW_02-GigabitEthernet0/0/5] port default vlan 115
[DMZ_SW_02-GigabitEthernet0/0/5]qui
[DMZ_SW_02]

2、OSPF&OSPFv3

	DMZ_SW_01:
[DMZ_SW_01]ipv6
[DMZ_SW_01]int vlan 112
[DMZ_SW_01-Vlanif112] ipv6 enable
[DMZ_SW_01-Vlanif112] ip address 192.168.112.1 255.255.255.252
[DMZ_SW_01-Vlanif112] ipv6 address 2409:8086:5A0A:192:168:112::/127
[DMZ_SW_01-Vlanif112] ipv6 address auto link-local
[DMZ_SW_01-Vlanif112]int vlan 114
[DMZ_SW_01-Vlanif114] ipv6 enable
[DMZ_SW_01-Vlanif114] ip address 192.168.114.1 255.255.255.252
[DMZ_SW_01-Vlanif114] ipv6 address auto link-local
[DMZ_SW_01-Vlanif114]qui
[DMZ_SW_01]bfd
[DMZ_SW_01-bfd]qui
[DMZ_SW_01]ospf 10 router-id 172.16.0.98
[DMZ_SW_01-ospf-10] bfd all-interfaces enable
[DMZ_SW_01-ospf-10] bfd all-interfaces min-tx-interval 300 min-rx-interval 300 detect 4
[DMZ_SW_01-ospf-10] spf-schedule-interval intelligent-timer 1000 50 50
[DMZ_SW_01-ospf-10] lsa-originate-interval intelligent-timer 1000 50 50
[DMZ_SW_01-ospf-10] lsa-arrival-interval intelligent-timer 1000 50 50
[DMZ_SW_01-ospf-10] stub-router on-startup 600
[DMZ_SW_01-ospf-10] area 0.0.0.0
[DMZ_SW_01-ospf-10-area-0.0.0.0]qui
[DMZ_SW_01-ospf-10]qui
[DMZ_SW_01]ospfv3 10
[DMZ_SW_01-ospfv3-10] router-id 172.16.0.98
[DMZ_SW_01-ospfv3-10] spf-schedule-interval 50 50
[DMZ_SW_01-ospfv3-10] stub-router on-startup 600
[DMZ_SW_01-ospfv3-10]qui
[DMZ_SW_01]int vlan 111
[DMZ_SW_01-Vlanif111] ipv6 enable
[DMZ_SW_01-Vlanif111] ip address 192.168.111.1 255.255.255.252
[DMZ_SW_01-Vlanif111] ipv6 address auto link-local
[DMZ_SW_01-Vlanif111] ospfv3 10 area 0.0.0.0
[DMZ_SW_01-Vlanif111] ospfv3 network-type p2p
[DMZ_SW_01-Vlanif111] ospf network-type p2p
[DMZ_SW_01-Vlanif111] ospf enable 10 area 0.0.0.0
[DMZ_SW_01-Vlanif111]int vlan 116
[DMZ_SW_01-Vlanif116] ipv6 enable
[DMZ_SW_01-Vlanif116] ip address 192.168.116.1 255.255.255.252
[DMZ_SW_01-Vlanif116] ipv6 address auto link-local
[DMZ_SW_01-Vlanif116] ospfv3 10 area 0.0.0.0
[DMZ_SW_01-Vlanif116] ospfv3 network-type p2p
[DMZ_SW_01-Vlanif116] ospf network-type p2p
[DMZ_SW_01-Vlanif116] ospf enable 10 area 0.0.0.0
[DMZ_SW_01-Vlanif116]int vlan 117
[DMZ_SW_01-Vlanif117] ipv6 enable
[DMZ_SW_01-Vlanif117] ip address 192.168.117.1 255.255.255.252
[DMZ_SW_01-Vlanif117] ipv6 address auto link-local
[DMZ_SW_01-Vlanif117] ospfv3 10 area 0.0.0.0
[DMZ_SW_01-Vlanif117] ospfv3 network-type p2p
[DMZ_SW_01-Vlanif117] ospf network-type p2p
[DMZ_SW_01-Vlanif117] ospf enable 10 area 0.0.0.0
[DMZ_SW_01-Vlanif117]qui
[DMZ_SW_01]ip route-static 172.16.0.96 255.255.255.255 192.168.112.2
[DMZ_SW_01]ip route-static 172.16.0.97 255.255.255.255 192.168.114.2
[DMZ_SW_01]
--------------------------------------
	DMZ_SW_02:
[DMZ_SW_02]ipv6
[DMZ_SW_02]int vlan 113
[DMZ_SW_02-Vlanif113] ipv6 enable
[DMZ_SW_02-Vlanif113] ip address 192.168.113.1 255.255.255.252
[DMZ_SW_02-Vlanif113] ipv6 address 2409:8086:5A0A:192:168:113::/127
[DMZ_SW_02-Vlanif113] ipv6 address auto link-local
[DMZ_SW_02-Vlanif113]int vlan 115
[DMZ_SW_02-Vlanif115] ipv6 enable
[DMZ_SW_02-Vlanif115] ip address 192.168.115.1 255.255.255.252
[DMZ_SW_02-Vlanif115] ipv6 address auto link-local
[DMZ_SW_02-Vlanif115]qui
[DMZ_SW_02]bfd
[DMZ_SW_02-bfd]qui
[DMZ_SW_02]ospf 10 router-id 172.16.0.99
[DMZ_SW_02-ospf-10] bfd all-interfaces enable
[DMZ_SW_02-ospf-10] bfd all-interfaces min-tx-interval 300 min-rx-interval 300 detect 4
[DMZ_SW_02-ospf-10] spf-schedule-interval intelligent-timer 1000 50 50
[DMZ_SW_02-ospf-10] lsa-originate-interval intelligent-timer 1000 50 50
[DMZ_SW_02-ospf-10] lsa-arrival-interval intelligent-timer 1000 50 50
[DMZ_SW_02-ospf-10] stub-router on-startup 600
[DMZ_SW_02-ospf-10] area 0.0.0.0
[DMZ_SW_02-ospf-10-area-0.0.0.0]qui
[DMZ_SW_02-ospf-10]qui
[DMZ_SW_02]ospfv3 10
[DMZ_SW_02-ospfv3-10] router-id 172.16.0.99
[DMZ_SW_02-ospfv3-10] spf-schedule-interval 50 50
[DMZ_SW_02-ospfv3-10] stub-router on-startup 600
[DMZ_SW_02-ospfv3-10]qui
[DMZ_SW_02]int vlan 111
[DMZ_SW_02-Vlanif111] ipv6 enable
[DMZ_SW_02-Vlanif111] ip address 192.168.111.2 255.255.255.252
[DMZ_SW_02-Vlanif111] ipv6 address auto link-local
[DMZ_SW_02-Vlanif111] ospfv3 10 area 0.0.0.0
[DMZ_SW_02-Vlanif111] ospfv3 network-type p2p
[DMZ_SW_02-Vlanif111] ospf network-type p2p
[DMZ_SW_02-Vlanif111] ospf enable 10 area 0.0.0.0
[DMZ_SW_02-Vlanif111]int vlan 118
[DMZ_SW_02-Vlanif118] ipv6 enable
[DMZ_SW_02-Vlanif118] ip address 192.168.118.1 255.255.255.252
[DMZ_SW_02-Vlanif118] ipv6 address auto link-local
[DMZ_SW_02-Vlanif118] ospfv3 10 area 0.0.0.0
[DMZ_SW_02-Vlanif118] ospfv3 network-type p2p
[DMZ_SW_02-Vlanif118] ospf network-type p2p
[DMZ_SW_02-Vlanif118] ospf enable 10 area 0.0.0.0
[DMZ_SW_02-Vlanif118]int vlan 119
[DMZ_SW_02-Vlanif119] ipv6 enable
[DMZ_SW_02-Vlanif119] ip address 192.168.119.1 255.255.255.252
[DMZ_SW_02-Vlanif119] ipv6 address auto link-local
[DMZ_SW_02-Vlanif119] ospfv3 10 area 0.0.0.0
[DMZ_SW_02-Vlanif119] ospfv3 network-type p2p
[DMZ_SW_02-Vlanif119] ospf network-type p2p
[DMZ_SW_02-Vlanif119] ospf enable 10 area 0.0.0.0
[DMZ_SW_02-Vlanif119]qui
[DMZ_SW_02]ip route-static 172.16.0.96 255.255.255.255 192.168.113.2
[DMZ_SW_02]ip route-static 172.16.0.97 255.255.255.255 192.168.115.2
[DMZ_SW_02]

3、路由策略

	DMZ_SW_01:
[DMZ_SW_01]ip ip-prefix tic_static_to_ospfv2_10 index 10 permit 172.16.0.96 32
[DMZ_SW_01]ip ip-prefix tic_static_to_ospfv2_10 index 20 permit 172.16.0.97 32
[DMZ_SW_01]ip ip-prefix tic_direct_to_ospfv2_10 index 10 permit 192.168.112.0 30
[DMZ_SW_01]ip ipv6-prefix tic_dir_to_ospf10 index 10 permit 2409:8086:5A0A:192:168:112:: 127
[DMZ_SW_01]route-policy tic_static_to_ospfv2_10 permit node 10
[DMZ_SW_01-route-policy] if-match ip-prefix tic_static_to_ospfv2_10
[DMZ_SW_01-route-policy]qui
[DMZ_SW_01]route-policy tic_static_to_ospfv2_10 deny node 999
[DMZ_SW_01-route-policy]qui
[DMZ_SW_01]route-policy tic_direct_to_ospfv3_10 permit node 10
[DMZ_SW_01-route-policy] if-match ipv6 address prefix-list tic_dir_to_ospf10
[DMZ_SW_01-route-policy]qui
[DMZ_SW_01]route-policy tic_direct_to_ospfv3_10 deny node 999
[DMZ_SW_01-route-policy]qui
[DMZ_SW_01]route-policy tic_direct_to_ospfv2_10 permit node 10
[DMZ_SW_01-route-policy] if-match ip-prefix tic_direct_to_ospfv2_10
[DMZ_SW_01-route-policy]qui
[DMZ_SW_01]route-policy tic_direct_to_ospfv2_10 deny node 999
[DMZ_SW_01-route-policy]qui
[DMZ_SW_01]ospf 10
[DMZ_SW_01-ospf-10] import-route direct route-policy tic_direct_to_ospfv2_10
[DMZ_SW_01-ospf-10] import-route static route-policy tic_static_to_ospfv2_10
[DMZ_SW_01-ospf-10]qui
[DMZ_SW_01]ospfv3 10
[DMZ_SW_01-ospfv3-10] import-route direct route-policy tic_direct_to_ospfv3_10
[DMZ_SW_01-ospfv3-10]qui
[DMZ_SW_01]
--------------------------------------
	DMZ_SW_02:
[DMZ_SW_02]ip ip-prefix tic_static_to_ospfv2_10 index 10 permit 172.16.0.96 32
[DMZ_SW_02]ip ip-prefix tic_static_to_ospfv2_10 index 20 permit 172.16.0.97 32
[DMZ_SW_02]ip ip-prefix tic_direct_to_ospfv2_10 index 10 permit 192.168.113.0 30
[DMZ_SW_02]ip ipv6-prefix tic_dir_to_ospf10 index 10 permit 2409:8086:5A0A:192:168:113:: 127
[DMZ_SW_02]route-policy tic_static_to_ospfv2_10 permit node 10
[DMZ_SW_02-route-policy] if-match ip-prefix tic_static_to_ospfv2_10
[DMZ_SW_02-route-policy]qui
[DMZ_SW_02]route-policy tic_static_to_ospfv2_10 deny node 999
[DMZ_SW_02-route-policy]qui
[DMZ_SW_02]route-policy tic_direct_to_ospfv3_10 permit node 10
[DMZ_SW_02-route-policy] if-match ipv6 address prefix-list tic_dir_to_ospf10
[DMZ_SW_02-route-policy]qui
[DMZ_SW_02]route-policy tic_direct_to_ospfv3_10 deny node 999
[DMZ_SW_02-route-policy]qui
[DMZ_SW_02]route-policy tic_direct_to_ospfv2_10 permit node 10
[DMZ_SW_02-route-policy] if-match ip-prefix tic_direct_to_ospfv2_10
[DMZ_SW_02-route-policy]qui
[DMZ_SW_02]route-policy tic_direct_to_ospfv2_10 deny node 999
[DMZ_SW_02-route-policy]qui
[DMZ_SW_02]ospf 10
[DMZ_SW_02-ospf-10] import-route direct route-policy tic_direct_to_ospfv2_10
[DMZ_SW_02-ospf-10] import-route static route-policy tic_static_to_ospfv2_10
[DMZ_SW_02-ospf-10]qui
[DMZ_SW_02]ospfv3 10
[DMZ_SW_02-ospfv3-10] import-route direct route-policy tic_direct_to_ospfv3_10
[DMZ_SW_02-ospfv3-10]qui
[DMZ_SW_02]

4、DHCP服务

	DHCP_SRV:
<Huawei>sys
[Huawei]un in en
[Huawei]sys DHCP_SRV
[DHCP_SRV]ipv6
[DHCP_SRV]dhcp enable
[DHCP_SRV]ip pool vlan1001_pool
[DHCP_SRV-ip-pool-vlan1001_pool] gateway-list 10.1.11.1
[DHCP_SRV-ip-pool-vlan1001_pool] network 10.1.11.0 mask 255.255.255.0
[DHCP_SRV-ip-pool-vlan1001_pool] excluded-ip-address 10.1.11.2 10.1.11.3
[DHCP_SRV-ip-pool-vlan1001_pool] lease day 2 hour 0 minute 0
[DHCP_SRV-ip-pool-vlan1001_pool] dns-list 119.29.29.29
[DHCP_SRV-ip-pool-vlan1001_pool]qui
[DHCP_SRV]ip pool vlan1003_pool
[DHCP_SRV-ip-pool-vlan1003_pool] gateway-list 10.1.13.1
[DHCP_SRV-ip-pool-vlan1003_pool] network 10.1.13.0 mask 255.255.255.0
[DHCP_SRV-ip-pool-vlan1003_pool] excluded-ip-address 10.1.13.2 10.1.13.3
[DHCP_SRV-ip-pool-vlan1003_pool] lease day 2 hour 0 minute 0
[DHCP_SRV-ip-pool-vlan1003_pool] dns-list 119.29.29.29
[DHCP_SRV-ip-pool-vlan1003_pool]qui
[DHCP_SRV]ip pool vlan1004_pool
[DHCP_SRV-ip-pool-vlan1004_pool] gateway-list 10.1.14.1
[DHCP_SRV-ip-pool-vlan1004_pool] network 10.1.14.0 mask 255.255.255.0
[DHCP_SRV-ip-pool-vlan1004_pool] excluded-ip-address 10.1.14.2 10.1.14.3
[DHCP_SRV-ip-pool-vlan1004_pool] lease day 2 hour 0 minute 0
[DHCP_SRV-ip-pool-vlan1004_pool] dns-list 119.29.29.29
[DHCP_SRV-ip-pool-vlan1004_pool] option 43 sub-option 2 ip-address 10.1.15.4 10.1.15.5
[DHCP_SRV-ip-pool-vlan1004_pool]qui
[DHCP_SRV]dhcpv6 pool vlan1002_pool
[DHCP_SRV-dhcpv6-pool-vlan1002_pool] address prefix 2409:8086:5A0A:10:1:12::/112
[DHCP_SRV-dhcpv6-pool-vlan1002_pool] excluded-address 2409:8086:5A0A:10:1:12:0:1 to 2409:8086:5A0A:10:1:12:0:3
[DHCP_SRV-dhcpv6-pool-vlan1002_pool] dns-server 119:29:29::29
[DHCP_SRV-dhcpv6-pool-vlan1002_pool]qui
[DHCP_SRV]dhcpv6 pool vlan1003_pool
[DHCP_SRV-dhcpv6-pool-vlan1003_pool] address prefix 2409:8086:5A0A:10:1:13::/112
[DHCP_SRV-dhcpv6-pool-vlan1003_pool] excluded-address 2409:8086:5A0A:10:1:13:0:1
 to 2409:8086:5A0A:10:1:13:0:3
[DHCP_SRV-dhcpv6-pool-vlan1003_pool] dns-server 119:29:29::29
[DHCP_SRV-dhcpv6-pool-vlan1003_pool]qui
[DHCP_SRV]int g0/0/0
[DHCP_SRV-GigabitEthernet0/0/0] ipv6 enable
[DHCP_SRV-GigabitEthernet0/0/0] ip address 192.168.112.2 255.255.255.252
[DHCP_SRV-GigabitEthernet0/0/0] ipv6 address 2409:8086:5A0A:192:168:112:0:1/127
[DHCP_SRV-GigabitEthernet0/0/0] ipv6 address auto link-local
[DHCP_SRV-GigabitEthernet0/0/0] dhcp select global
[DHCP_SRV-GigabitEthernet0/0/0] dhcpv6 server vlan1002_pool
[DHCP_SRV-GigabitEthernet0/0/0]int g0/0/1
[DHCP_SRV-GigabitEthernet0/0/1] ipv6 enable
[DHCP_SRV-GigabitEthernet0/0/1] ip address 192.168.113.2 255.255.255.252
[DHCP_SRV-GigabitEthernet0/0/1] ipv6 address 2409:8086:5A0A:192:168:113:0:1/127
[DHCP_SRV-GigabitEthernet0/0/1] ipv6 address auto link-local
[DHCP_SRV-GigabitEthernet0/0/1] dhcp select global
[DHCP_SRV-GigabitEthernet0/0/1] dhcpv6 server vlan1003_pool
[DHCP_SRV-GigabitEthernet0/0/1]qui
[DHCP_SRV]ip route-static 0.0.0.0 0.0.0.0 192.168.112.1
[DHCP_SRV]ip route-static 0.0.0.0 0.0.0.0 192.168.113.1
[DHCP_SRV]ipv6 route-static :: 0 2409:8086:5A0A:192:168:112::
[DHCP_SRV]ipv6 route-static :: 0 2409:8086:5A0A:192:168:113::
[DHCP_SRV]

Site b

1、VLAN划分&STP优化

	FZ_01_SW:
<Huawei>
<Huawei>sys
[Huawei]un in en
[Huawei]sys FZ_01_SW
[FZ_01_SW]vlan batch 888
[FZ_01_SW]port group g0/0/1 to g0/0/3
[FZ_01_SW-port-group]port link-type access
[FZ_01_SW-GigabitEthernet0/0/1]port link-type access
[FZ_01_SW-GigabitEthernet0/0/2]port link-type access
[FZ_01_SW-GigabitEthernet0/0/3]port link-type access
[FZ_01_SW-port-group]port default vlan 888
[FZ_01_SW-GigabitEthernet0/0/1]port default vlan 888
[FZ_01_SW-GigabitEthernet0/0/2]port default vlan 888
[FZ_01_SW-GigabitEthernet0/0/3]port default vlan 888
[FZ_01_SW-port-group]stp bpdu-filter enable
[FZ_01_SW-GigabitEthernet0/0/1]stp bpdu-filter enable
[FZ_01_SW-GigabitEthernet0/0/2]stp bpdu-filter enable
[FZ_01_SW-GigabitEthernet0/0/3]stp bpdu-filter enable
[FZ_01_SW-port-group]stp edged-port enable
[FZ_01_SW-GigabitEthernet0/0/1]stp edged-port enable
[FZ_01_SW-GigabitEthernet0/0/2]stp edged-port enable
[FZ_01_SW-GigabitEthernet0/0/3]stp edged-port enable
[FZ_01_SW-port-group]qui
[FZ_01_SW]stp bpdu-protection
[FZ_01_SW]stp tc-protection
[FZ_01_SW]

2、DHCP&IPv4接入

	FZ_01:
<Huawei>sys
[Huawei]un in en
[Huawei]sys FZ_01
[FZ_01]ipv6
[FZ_01]int g0/0/0
[FZ_01-GigabitEthernet0/0/0]ip address 183.73.54.182 255.255.255.252
[FZ_01-GigabitEthernet0/0/0]int g0/0/1
[FZ_01-GigabitEthernet0/0/1]ipv6 enable
[FZ_01-GigabitEthernet0/0/1]ip address 172.16.88.1 255.255.255.0
[FZ_01-GigabitEthernet0/0/1]ipv6 address 2001:DB8:888:1::FFFF/112
[FZ_01-GigabitEthernet0/0/1]ipv6 address auto link-local
[FZ_01-GigabitEthernet0/0/1]qui
[FZ_01]dhcp enable
[FZ_01]dhcpv6 pool vlan888_pool
[FZ_01-dhcpv6-pool-vlan888_pool] address prefix 2001:DB8:888:1::/112
[FZ_01-dhcpv6-pool-vlan888_pool] excluded-address 2001:DB8:888:1::FFFF
[FZ_01-dhcpv6-pool-vlan888_pool] dns-server 119:29:29::29
[FZ_01-dhcpv6-pool-vlan888_pool]qui
[FZ_01]interface GigabitEthernet0/0/1
[FZ_01-GigabitEthernet0/0/1] undo ipv6 nd ra halt
[FZ_01-GigabitEthernet0/0/1] ipv6 nd autoconfig managed-address-flag
[FZ_01-GigabitEthernet0/0/1] ipv6 nd autoconfig other-flag
[FZ_01-GigabitEthernet0/0/1] dhcp select interface
[FZ_01-GigabitEthernet0/0/1] dhcpv6 server vlan888_pool
[FZ_01-GigabitEthernet0/0/1]qui
[FZ_01]

3、NAT44

	FZ_01:
[FZ_01]acl number 2000
[FZ_01-acl-basic-2000]rule 5 permit source 172.16.88.0 0.0.0.255
[FZ_01-acl-basic-2000]qui
[FZ_01]int g0/0/0
[FZ_01-GigabitEthernet0/0/0]nat outbound 2000
[FZ_01-GigabitEthernet0/0/0]qui
[FZ_01]

4、6to4隧道

	FZ_01:
[FZ_01]int t0/0/0
[FZ_01-Tunnel0/0/0] ipv6 enable
[FZ_01-Tunnel0/0/0] ipv6 address FD00:100::2/64
[FZ_01-Tunnel0/0/0] ipv6 address auto link-local
[FZ_01-Tunnel0/0/0] tunnel-protocol ipv6-ipv4
[FZ_01-Tunnel0/0/0] source GigabitEthernet0/0/0
[FZ_01-Tunnel0/0/0] destination 223.73.54.0
[FZ_01-Tunnel0/0/0]qui
[FZ_01]ipv6 route-static :: 0 Tunnel0/0/0
[FZ_01]

Site c

1、VLAN划分&STP优化

	FZ_02_SW:
<Huawei>sys
[Huawei]un in en
[Huawei]sys FZ_01_SW
[FZ_01_SW]vlan batch 889
[FZ_01_SW]port group g0/0/1 to g0/0/3
[FZ_01_SW-port-group]port link-type access
[FZ_01_SW-GigabitEthernet0/0/1]port link-type access
[FZ_01_SW-GigabitEthernet0/0/2]port link-type access
[FZ_01_SW-GigabitEthernet0/0/3]port link-type access
[FZ_01_SW-port-group]port default vlan 889
[FZ_01_SW-GigabitEthernet0/0/1]port default vlan 889
[FZ_01_SW-GigabitEthernet0/0/2]port default vlan 889
[FZ_01_SW-GigabitEthernet0/0/3]port default vlan 889
[FZ_01_SW-port-group]stp bpdu-filter enable
[FZ_01_SW-GigabitEthernet0/0/1]stp bpdu-filter enable
[FZ_01_SW-GigabitEthernet0/0/2]stp bpdu-filter enable
[FZ_01_SW-GigabitEthernet0/0/3]stp bpdu-filter enable
[FZ_01_SW-port-group]stp edged-port enable
[FZ_01_SW-GigabitEthernet0/0/1]stp edged-port enable
[FZ_01_SW-GigabitEthernet0/0/2]stp edged-port enable
[FZ_01_SW-GigabitEthernet0/0/3]stp edged-port enable
[FZ_01_SW-port-group]qui
[FZ_01_SW]stp bpdu-protection
[FZ_01_SW]stp tc-protection
[FZ_01_SW]

2、DHCP&IPv6接入

	FZ_02:
<Huawei>sys
[Huawei]un in en
[Huawei]sys FZ_02
[FZ_02]ipv6
[FZ_02]int g0/0/0
[FZ_02-GigabitEthernet0/0/0]ipv6 enable
[FZ_02-GigabitEthernet0/0/0]ipv6 address 2409:8A55:934:A7E0:5513:489C:8F5:1/127
[FZ_02-GigabitEthernet0/0/0]int g0/0/1
[FZ_02-GigabitEthernet0/0/1]ipv6 enable
[FZ_02-GigabitEthernet0/0/1]ip address 172.16.89.1 255.255.255.0
[FZ_02-GigabitEthernet0/0/1]ipv6 address 2001:DB8:889:1::FFFF/112
[FZ_02-GigabitEthernet0/0/1]ipv6 address auto link-local
[FZ_02-GigabitEthernet0/0/1]qui
[FZ_02]dhcp enable
[FZ_02]dhcpv6 pool vlan889_pool
[FZ_02-dhcpv6-pool-vlan889_pool] address prefix 2001:DB8:889:1::/112
[FZ_02-dhcpv6-pool-vlan889_pool] excluded-address 2001:DB8:889:1::FFFF
[FZ_02-dhcpv6-pool-vlan889_pool] dns-server 119:29:29::29
[FZ_02-dhcpv6-pool-vlan889_pool]qui
[FZ_02]int g0/0/1
[FZ_02-GigabitEthernet0/0/1] ipv6 enable
[FZ_02-GigabitEthernet0/0/1] undo ipv6 nd ra halt
[FZ_02-GigabitEthernet0/0/1] ipv6 nd autoconfig managed-address-flag
[FZ_02-GigabitEthernet0/0/1] ipv6 nd autoconfig other-flag
[FZ_02-GigabitEthernet0/0/1] dhcp select interface
[FZ_02-GigabitEthernet0/0/1] dhcpv6 server vlan889_pool
[FZ_02-GigabitEthernet0/0/1]qui
[FZ_02]ipv6 route-static :: 0 2409:8A55:934:A7E0:5513:489C:8F5:0
[FZ_02]

3、4to6隧道

	FZ_02:
[FZ_02]int t0/0/0
[FZ_02-Tunnel0/0/0] ip address 10.10.10.2 255.255.255.252
[FZ_02-Tunnel0/0/0] tunnel-protocol ipv4-ipv6
[FZ_02-Tunnel0/0/0] source GigabitEthernet0/0/0
[FZ_02-Tunnel0/0/0] destination 2409:8A55:936:1AE0:B04D:C0DD:94F7:0
[FZ_02-Tunnel0/0/0]qui
[FZ_02]ip route-static 0.0.0.0 0.0.0.0 Tunnel0/0/0
[FZ_02]

ISP

1、ISIS

	AR_01:
<Huawei>sys
[Huawei]un in en
[Huawei]sys AR_01
[AR_01]ipv6
[AR_01]int loo0
[AR_01-LoopBack0] ipv6 enable
[AR_01-LoopBack0] ip address 100.0.0.1 255.255.255.255
[AR_01-LoopBack0] ipv6 address 2409:8055:5C00:0:100::1/128
[AR_01-LoopBack0] ipv6 address auto link-local
[AR_01-LoopBack0]int e4/0/0
[AR_01-Ethernet4/0/0] ipv6 enable
[AR_01-Ethernet4/0/0] ip address unnumbered interface LoopBack0
[AR_01-Ethernet4/0/0] ipv6 address auto link-local
[AR_01-Ethernet4/0/0]int e4/0/1
[AR_01-Ethernet4/0/1] ip address 183.73.54.181 255.255.255.252
[AR_01-Ethernet4/0/1]int g0/0/0
[AR_01-GigabitEthernet0/0/0] ipv6 enable
[AR_01-GigabitEthernet0/0/0] ip address unnumbered interface LoopBack0
[AR_01-GigabitEthernet0/0/0] ipv6 address auto link-local
[AR_01-GigabitEthernet0/0/0]int g0/0/1
[AR_01-GigabitEthernet0/0/1] ipv6 enable
[AR_01-GigabitEthernet0/0/1] ip address unnumbered interface LoopBack0
[AR_01-GigabitEthernet0/0/1] ipv6 address auto link-local
[AR_01-GigabitEthernet0/0/1]int g0/0/2
[AR_01-GigabitEthernet0/0/2] ipv6 enable
[AR_01-GigabitEthernet0/0/2] ip address unnumbered interface LoopBack0
[AR_01-GigabitEthernet0/0/2] ipv6 address auto link-local
[AR_01-GigabitEthernet0/0/2]qui
[AR_01]bfd
[AR_01-bfd]qui
[AR_01]isis 10
[AR_01-isis-10] is-level level-2
[AR_01-isis-10] cost-style wide
[AR_01-isis-10] timer lsp-generation 1 50 50 level-2
[AR_01-isis-10] flash-flood 15 level-2
[AR_01-isis-10] bfd all-interfaces enable
[AR_01-isis-10] bfd all-interfaces min-tx-interval 300 min-rx-interval 300 detect 4 frr-binding
[AR_01-isis-10] network-entity 49.0000.0000.0001.00
[AR_01-isis-10] lsp-fragments-extend mode-2 level-2
[AR_01-isis-10] virtual-system 5000.0000.0000
[AR_01-isis-10] timer spf 1 50 50
[AR_01-isis-10] set-overload on-startup
[AR_01-isis-10] frr
[AR_01-isis-10-frr]  loop-free-alternate level-2
[AR_01-isis-10-frr] ipv6 enable topology standard
[AR_01-isis-10]qui
[AR_01]int loo0
[AR_01-LoopBack0] isis enable 10
[AR_01-LoopBack0] isis ipv6 enable 10
[AR_01-LoopBack0]int e4/0/0
[AR_01-Ethernet4/0/0] isis enable 10
[AR_01-Ethernet4/0/0] isis ipv6 enable 10
[AR_01-Ethernet4/0/0] isis circuit-type p2p
[AR_01-Ethernet4/0/0]int g0/0/0
[AR_01-GigabitEthernet0/0/0] isis enable 10
[AR_01-GigabitEthernet0/0/0] isis ipv6 enable 10
[AR_01-GigabitEthernet0/0/0] isis circuit-type p2p
[AR_01-GigabitEthernet0/0/0]int g0/0/1
[AR_01-GigabitEthernet0/0/1] isis enable 10
[AR_01-GigabitEthernet0/0/1] isis ipv6 enable 10
[AR_01-GigabitEthernet0/0/1] isis circuit-type p2p
[AR_01-GigabitEthernet0/0/1]int g0/0/2
[AR_01-GigabitEthernet0/0/2] isis enable 10
[AR_01-GigabitEthernet0/0/2] isis ipv6 enable 10
[AR_01-GigabitEthernet0/0/2] isis circuit-type p2p
[AR_01-GigabitEthernet0/0/2]qui
[AR_01]
--------------------------------------
	AR_02:
<Huawei>sys
[Huawei]un in en
[Huawei]sys AR_02
[AR_02]ipv6
[AR_02]int loo0
[AR_02-LoopBack0] ipv6 enable
[AR_02-LoopBack0] ip address 100.0.0.2 255.255.255.255
[AR_02-LoopBack0] ipv6 address 2409:8055:5C00:0:100::2/128
[AR_02-LoopBack0] ipv6 address auto link-local
[AR_02-LoopBack0]int e4/0/0
[AR_02-Ethernet4/0/0] ipv6 enable
[AR_02-Ethernet4/0/0] ip address unnumbered interface LoopBack0
[AR_02-Ethernet4/0/0] ipv6 address auto link-local
[AR_02-Ethernet4/0/0]int e4/0/1
[AR_02-Ethernet4/0/1] ipv6 enable
[AR_02-Ethernet4/0/1] ipv6 address 2409:8A55:934:A7E0:5513:489C:8F5:0/127
[AR_02-Ethernet4/0/1]int g0/0/0
[AR_02-GigabitEthernet0/0/0] ipv6 enable
[AR_02-GigabitEthernet0/0/0] ip address unnumbered interface LoopBack0
[AR_02-GigabitEthernet0/0/0] ipv6 address auto link-local
[AR_02-GigabitEthernet0/0/0]int g0/0/1
[AR_02-GigabitEthernet0/0/1] ipv6 enable
[AR_02-GigabitEthernet0/0/1] ip address unnumbered interface LoopBack0
[AR_02-GigabitEthernet0/0/1] ipv6 address auto link-local
[AR_02-GigabitEthernet0/0/1]int g0/0/2
[AR_02-GigabitEthernet0/0/2] ipv6 enable
[AR_02-GigabitEthernet0/0/2] ip address unnumbered interface LoopBack0
[AR_02-GigabitEthernet0/0/2] ipv6 address auto link-local
[AR_02-GigabitEthernet0/0/2]qui
[AR_02]bfd
[AR_02-bfd]qui
[AR_02]isis 10
[AR_02-isis-10] is-level level-2
[AR_02-isis-10] cost-style wide
[AR_02-isis-10] timer lsp-generation 1 50 50 level-2
[AR_02-isis-10] flash-flood 15 level-2
[AR_02-isis-10] bfd all-interfaces enable
[AR_02-isis-10] bfd all-interfaces min-tx-interval 300 min-rx-interval 300 detect 4 frr-binding
[AR_02-isis-10] network-entity 49.0000.0000.0002.00
[AR_02-isis-10] lsp-fragments-extend mode-2 level-2
[AR_02-isis-10] virtual-system 5100.0000.0000
[AR_02-isis-10] timer spf 1 50 50
[AR_02-isis-10] set-overload on-startup
[AR_02-isis-10] frr
[AR_02-isis-10-frr]  loop-free-alternate level-2
[AR_02-isis-10-frr] ipv6 enable topology standard
[AR_02-isis-10]qui
[AR_02]int loo0
[AR_02-LoopBack0] isis enable 10
[AR_02-LoopBack0] isis ipv6 enable 10
[AR_02-LoopBack0]int e4/0/0
[AR_02-Ethernet4/0/0] isis enable 10
[AR_02-Ethernet4/0/0] isis ipv6 enable 10
[AR_02-Ethernet4/0/0] isis circuit-type p2p
[AR_02-Ethernet4/0/0]int g0/0/0
[AR_02-GigabitEthernet0/0/0] isis enable 10
[AR_02-GigabitEthernet0/0/0] isis ipv6 enable 10
[AR_02-GigabitEthernet0/0/0] isis circuit-type p2p
[AR_02-GigabitEthernet0/0/0]int g0/0/1
[AR_02-GigabitEthernet0/0/1] isis enable 10
[AR_02-GigabitEthernet0/0/1] isis ipv6 enable 10
[AR_02-GigabitEthernet0/0/1] isis circuit-type p2p
[AR_02-GigabitEthernet0/0/1]int g0/0/2
[AR_02-GigabitEthernet0/0/2] isis enable 10
[AR_02-GigabitEthernet0/0/2] isis ipv6 enable 10
[AR_02-GigabitEthernet0/0/2] isis circuit-type p2p
[AR_02-GigabitEthernet0/0/2]qui
[AR_02]
--------------------------------------
	AR_03:
<Huawei>sys
[Huawei]un in en
[Huawei]sys AR_03
[AR_03]ipv6
[AR_03]int loo0
[AR_03-LoopBack0] ipv6 enable
[AR_03-LoopBack0] ip address 100.0.0.3 255.255.255.255
[AR_03-LoopBack0] ipv6 address 2409:8055:5C00:0:100::3/128
[AR_03-LoopBack0] ipv6 address auto link-local
[AR_03-LoopBack0]int e4/0/0
[AR_03-Ethernet4/0/0] ipv6 enable
[AR_03-Ethernet4/0/0] ip address 183.26.96.2 255.255.255.252
[AR_03-Ethernet4/0/0] ipv6 address 2409:8055:5C00:0:2800::1/127
[AR_03-Ethernet4/0/0] ipv6 address auto link-local
[AR_03-Ethernet4/0/0]int e4/0/1
[AR_03-Ethernet4/0/1] ipv6 enable
[AR_03-Ethernet4/0/1] ip address unnumbered interface LoopBack0
[AR_03-Ethernet4/0/1] ipv6 address auto link-local
[AR_03-Ethernet4/0/1]int g0/0/0
[AR_03-GigabitEthernet0/0/0] ipv6 enable
[AR_03-GigabitEthernet0/0/0] ip address unnumbered interface LoopBack0
[AR_03-GigabitEthernet0/0/0] ipv6 address auto link-local
[AR_03-GigabitEthernet0/0/0]int g0/0/1
[AR_03-GigabitEthernet0/0/1] ipv6 enable
[AR_03-GigabitEthernet0/0/1] ip address unnumbered interface LoopBack0
[AR_03-GigabitEthernet0/0/1] ipv6 address auto link-local
[AR_03-GigabitEthernet0/0/1]int g0/0/2
[AR_03-GigabitEthernet0/0/2] ipv6 enable
[AR_03-GigabitEthernet0/0/2] ip address unnumbered interface LoopBack0
[AR_03-GigabitEthernet0/0/2] ipv6 address auto link-local
[AR_03-GigabitEthernet0/0/2]qui
[AR_03]bfd
[AR_03-bfd]qui
[AR_03]isis 10
[AR_03-isis-10] is-level level-2
[AR_03-isis-10] cost-style wide
[AR_03-isis-10] timer lsp-generation 1 50 50 level-2
[AR_03-isis-10] flash-flood 15 level-2
[AR_03-isis-10] bfd all-interfaces enable
[AR_03-isis-10] bfd all-interfaces min-tx-interval 300 min-rx-interval 300 detect 4 frr-binding
[AR_03-isis-10] network-entity 49.0000.0000.0003.00
[AR_03-isis-10] lsp-fragments-extend mode-2 level-2
[AR_03-isis-10] virtual-system 5200.0000.0000
[AR_03-isis-10] timer spf 1 50 50
[AR_03-isis-10] set-overload on-startup
[AR_03-isis-10] frr
[AR_03-isis-10-frr]  loop-free-alternate level-2
[AR_03-isis-10-frr] ipv6 enable topology standard
[AR_03-isis-10]qui
[AR_03]int loo0
[AR_03-LoopBack0] isis enable 10
[AR_03-LoopBack0] isis ipv6 enable 10
[AR_03-LoopBack0]int e4/0/1
[AR_03-Ethernet4/0/1] isis enable 10
[AR_03-Ethernet4/0/1] isis ipv6 enable 10
[AR_03-Ethernet4/0/1] isis circuit-type p2p
[AR_03-Ethernet4/0/1]int g0/0/0
[AR_03-GigabitEthernet0/0/0] isis enable 10
[AR_03-GigabitEthernet0/0/0] isis ipv6 enable 10
[AR_03-GigabitEthernet0/0/0] isis circuit-type p2p
[AR_03-GigabitEthernet0/0/0]int g0/0/1
[AR_03-GigabitEthernet0/0/1] isis enable 10
[AR_03-GigabitEthernet0/0/1] isis ipv6 enable 10
[AR_03-GigabitEthernet0/0/1] isis circuit-type p2p
[AR_03-GigabitEthernet0/0/1]int g0/0/2
[AR_03-GigabitEthernet0/0/2] isis enable 10
[AR_03-GigabitEthernet0/0/2] isis ipv6 enable 10
[AR_03-GigabitEthernet0/0/2] isis circuit-type p2p
[AR_03-GigabitEthernet0/0/2]qui
[AR_03]
--------------------------------------
	AR_04:
<Huawei>sys
[Huawei]un in en
[Huawei]sys AR_04
[AR_04]ipv6
[AR_04]int loo0
[AR_04-LoopBack0] ipv6 enable
[AR_04-LoopBack0] ip address 100.0.0.4 255.255.255.255
[AR_04-LoopBack0] ipv6 address 2409:8055:5C00:0:100::4/128
[AR_04-LoopBack0] ipv6 address auto link-local
[AR_04-LoopBack0]int e4/0/0
[AR_04-Ethernet4/0/0] ipv6 enable
[AR_04-Ethernet4/0/0] ip address 183.26.96.6 255.255.255.252
[AR_04-Ethernet4/0/0] ipv6 address 2409:8055:5C00:0:2800::3/127
[AR_04-Ethernet4/0/0] ipv6 address auto link-local
[AR_04-Ethernet4/0/0]int e4/0/1
[AR_04-Ethernet4/0/1] ipv6 enable
[AR_04-Ethernet4/0/1] ip address unnumbered interface LoopBack0
[AR_04-Ethernet4/0/1] ipv6 address auto link-local
[AR_04-Ethernet4/0/1]int g0/0/0
[AR_04-GigabitEthernet0/0/0] ipv6 enable
[AR_04-GigabitEthernet0/0/0] ip address unnumbered interface LoopBack0
[AR_04-GigabitEthernet0/0/0] ipv6 address auto link-local
[AR_04-GigabitEthernet0/0/0]int g0/0/1
[AR_04-GigabitEthernet0/0/1] ipv6 enable
[AR_04-GigabitEthernet0/0/1] ip address unnumbered interface LoopBack0
[AR_04-GigabitEthernet0/0/1] ipv6 address auto link-local
[AR_04-GigabitEthernet0/0/1]int g0/0/2
[AR_04-GigabitEthernet0/0/2] ipv6 enable
[AR_04-GigabitEthernet0/0/2] ip address unnumbered interface LoopBack0
[AR_04-GigabitEthernet0/0/2] ipv6 address auto link-local
[AR_04-GigabitEthernet0/0/2]qui
[AR_04]bfd
[AR_04-bfd]qui
[AR_04]isis 10
[AR_04-isis-10] is-level level-2
[AR_04-isis-10] cost-style wide
[AR_04-isis-10] timer lsp-generation 1 50 50 level-2
[AR_04-isis-10] flash-flood 15 level-2
[AR_04-isis-10] bfd all-interfaces enable
[AR_04-isis-10] bfd all-interfaces min-tx-interval 300 min-rx-interval 300 detect 4 frr-binding
[AR_04-isis-10] network-entity 49.0000.0000.0004.00
[AR_04-isis-10] lsp-fragments-extend mode-2 level-2
[AR_04-isis-10] virtual-system 5300.0000.0000
[AR_04-isis-10] timer spf 1 50 50
[AR_04-isis-10] set-overload on-startup
[AR_04-isis-10] frr
[AR_04-isis-10-frr]  loop-free-alternate level-2
[AR_04-isis-10-frr] ipv6 enable topology standard
[AR_04-isis-10]qui
[AR_04]int loo0
[AR_04-LoopBack0] isis enable 10
[AR_04-LoopBack0] isis ipv6 enable 10
[AR_04-LoopBack0]int e4/0/1
[AR_04-Ethernet4/0/1] isis enable 10
[AR_04-Ethernet4/0/1] isis ipv6 enable 10
[AR_04-Ethernet4/0/1] isis circuit-type p2p
[AR_04-Ethernet4/0/1]int g0/0/0
[AR_04-GigabitEthernet0/0/0] isis enable 10
[AR_04-GigabitEthernet0/0/0] isis ipv6 enable 10
[AR_04-GigabitEthernet0/0/0] isis circuit-type p2p
[AR_04-GigabitEthernet0/0/0]int g0/0/1
[AR_04-GigabitEthernet0/0/1] isis enable 10
[AR_04-GigabitEthernet0/0/1] isis ipv6 enable 10
[AR_04-GigabitEthernet0/0/1] isis circuit-type p2p
[AR_04-GigabitEthernet0/0/1]int g0/0/2
[AR_04-GigabitEthernet0/0/2] isis enable 10
[AR_04-GigabitEthernet0/0/2] isis ipv6 enable 10
[AR_04-GigabitEthernet0/0/2] isis circuit-type p2p
[AR_04-GigabitEthernet0/0/2]qui
[AR_04]

2、路由策略

	AR_03:
[AR_03]ip route-static 192.168.0.34 255.255.255.255 NULL0 preference 1 tag 192168034
[AR_03]ipv6 route-static 2409:8055:5C00:0:192:168:0:34 128 NULL0 preference 1 tag 192168034
[AR_03]route-policy tic_static_vhp_to_isis permit node 10
[AR_03-route-policy]if-match tag 192168034
[AR_03-route-policy]qui
[AR_03]route-policy tic_static_vhp_to_isis deny node 999
[AR_03-route-policy]qui
[AR_03]isis 10
[AR_03-isis-10] import-route static route-policy tic_static_vhp_to_isis
[AR_03-isis-10] ipv6 import-route static route-policy tic_static_vhp_to_isis
[AR_03-isis-10]qui
[AR_03]
--------------------------------------
	AR_04:
[AR_04]ip route-static 192.168.0.34 255.255.255.255 NULL0 preference 1 tag 192168034
[AR_04]ipv6 route-static 2409:8055:5C00:0:192:168:0:34 128 NULL0 preference 1 tag 192168034
[AR_04]route-policy tic_static_vhp_to_isis permit node 10
[AR_04-route-policy] if-match tag 192168034
[AR_04-route-policy]qui
[AR_04]route-policy tic_static_vhp_to_isis deny node 999
[AR_04-route-policy]qui
[AR_04]isis 10
[AR_04-isis-10] import-route static route-policy tic_static_vhp_to_isis
[AR_04-isis-10] ipv6 import-route static route-policy tic_static_vhp_to_isis
[AR_04-isis-10]qui
[AR_04]

3、BGP

	AR_01:
[AR_01]bgp 9808
[AR_01-bgp] router-id 221.179.3.1
[AR_01-bgp] peer 100.0.0.5 as-number 9808
[AR_01-bgp] peer 100.0.0.5 connect-interface LoopBack0
[AR_01-bgp] peer 100.0.0.5 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[AR_01-bgp] peer 100.0.0.5 bfd enable
[AR_01-bgp] peer 2409:8055:5C00:0:100::5 as-number 9808
[AR_01-bgp] peer 2409:8055:5C00:0:100::5 connect-interface LoopBack0
[AR_01-bgp] ipv4-family unicast
[AR_01-bgp-af-ipv4]  undo synchronization
[AR_01-bgp-af-ipv4]  network 183.73.54.180 255.255.255.252
[AR_01-bgp-af-ipv4]  network 223.73.54.180 255.255.255.252
[AR_01-bgp-af-ipv4]  maximum load-balancing 8
[AR_01-bgp-af-ipv4]  peer 100.0.0.5 enable
[AR_01-bgp-af-ipv4]  peer 100.0.0.5 next-hop-local
[AR_01-bgp-af-ipv4]  peer 100.0.0.5 advertise-community
[AR_01-bgp-af-ipv4] qui
[AR_01-bgp] ipv6-family unicast
[AR_01-bgp-af-ipv6]  undo synchronization
[AR_01-bgp-af-ipv6]  maximum load-balancing 8
[AR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 enable
[AR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 next-hop-local
[AR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 advertise-community
[AR_01-bgp-af-ipv6]qui
[AR_01-bgp]
--------------------------------------
	AR_02:
[AR_02]ipv6 route-static 2001:DB8:889:1:: 112 2409:8A55:934:A7E0:5513:489C:8F5:1
[AR_02]bgp 9808
[AR_02-bgp] router-id 221.179.3.2
[AR_02-bgp] peer 100.0.0.5 as-number 9808
[AR_02-bgp] peer 100.0.0.5 connect-interface LoopBack0
[AR_02-bgp] peer 100.0.0.5 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[AR_02-bgp] peer 100.0.0.5 bfd enable
[AR_02-bgp] peer 2409:8055:5C00:0:100::5 as-number 9808
[AR_02-bgp] peer 2409:8055:5C00:0:100::5 connect-interface LoopBack0
[AR_02-bgp] ipv4-family unicast
[AR_02-bgp-af-ipv4]  undo synchronization
[AR_02-bgp-af-ipv4]  maximum load-balancing 8
[AR_02-bgp-af-ipv4]  peer 100.0.0.5 enable
[AR_02-bgp-af-ipv4]  peer 100.0.0.5 next-hop-local
[AR_02-bgp-af-ipv4]  peer 100.0.0.5 advertise-community
[AR_02-bgp-af-ipv4] qui
[AR_02-bgp] ipv6-family unicast
[AR_02-bgp-af-ipv6]  undo synchronization
[AR_02-bgp-af-ipv6]  network 2001:DB8:889:1:: 112
[AR_02-bgp-af-ipv6]  network 2409:8A55:934:A7E0:5513:489C:8F5:0 127
[AR_02-bgp-af-ipv6]  maximum load-balancing 8
[AR_02-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 enable
[AR_02-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 next-hop-local
[AR_02-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 advertise-community
[AR_02-bgp-af-ipv6]qui
[AR_02-bgp]qui
[AR_02]
--------------------------------------
	AR_03:
[AR_03]bgp 9808
[AR_03-bgp] router-id 221.179.3.3
[AR_03-bgp] peer 100.0.0.5 as-number 9808
[AR_03-bgp] peer 100.0.0.5 connect-interface LoopBack0
[AR_03-bgp] peer 100.0.0.5 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[AR_03-bgp] peer 100.0.0.5 bfd enable
[AR_03-bgp] peer 183.26.96.1 as-number 65001
[AR_03-bgp] peer 183.26.96.1 connect-interface Ethernet4/0/0
[AR_03-bgp] peer 183.26.96.1 password cipher huawei@123
[AR_03-bgp] peer 183.26.96.1 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[AR_03-bgp] peer 183.26.96.1 bfd enable
[AR_03-bgp] peer 2409:8055:5C00:0:100::5 as-number 9808
[AR_03-bgp] peer 2409:8055:5C00:0:100::5 connect-interface LoopBack0
[AR_03-bgp] peer 2409:8055:5C00:0:2800:: as-number 65001
[AR_03-bgp] peer 2409:8055:5C00:0:2800:: connect-interface Ethernet4/0/0
[AR_03-bgp] peer 2409:8055:5C00:0:2800:: password cipher huawei@123
[AR_03-bgp] ipv4-family unicast
[AR_03-bgp-af-ipv4]  undo synchronization
[AR_03-bgp-af-ipv4]  network 183.26.96.0 255.255.255.252
[AR_03-bgp-af-ipv4]  maximum load-balancing 8
[AR_03-bgp-af-ipv4]  peer 100.0.0.5 enable
[AR_03-bgp-af-ipv4]  peer 100.0.0.5 next-hop-local
[AR_03-bgp-af-ipv4]  peer 100.0.0.5 advertise-community
[AR_03-bgp-af-ipv4]  peer 183.26.96.1 enable
[AR_03-bgp-af-ipv4]  peer 183.26.96.1 default-route-advertise
[AR_03-bgp-af-ipv4] qui
[AR_03-bgp] ipv6-family unicast
[AR_03-bgp-af-ipv6]  undo synchronization
[AR_03-bgp-af-ipv6]  network 2409:8055:5C00:0:2800:: 127
[AR_03-bgp-af-ipv6]  maximum load-balancing 8
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 enable
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 next-hop-local
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 advertise-community
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800:: enable
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800:: default-route-advertise
[AR_03-bgp-af-ipv6]qui
[AR_03-bgp]qui
[AR_03]
--------------------------------------
	AR_04:
[AR_04]bgp 9808
[AR_04-bgp] router-id 221.179.3.4
[AR_04-bgp] peer 100.0.0.5 as-number 9808
[AR_04-bgp] peer 100.0.0.5 connect-interface LoopBack0
[AR_04-bgp] peer 100.0.0.5 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[AR_04-bgp] peer 100.0.0.5 bfd enable
[AR_04-bgp] peer 183.26.96.5 as-number 65001
[AR_04-bgp] peer 183.26.96.5 connect-interface Ethernet4/0/0
[AR_04-bgp] peer 183.26.96.5 password cipher huawei@123
[AR_04-bgp] peer 183.26.96.5 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[AR_04-bgp] peer 183.26.96.5 bfd enable
[AR_04-bgp] peer 2409:8055:5C00:0:100::5 as-number 9808
[AR_04-bgp] peer 2409:8055:5C00:0:100::5 connect-interface LoopBack0
[AR_04-bgp] peer 2409:8055:5C00:0:2800::2 as-number 65001
[AR_04-bgp] peer 2409:8055:5C00:0:2800::2 connect-interface Ethernet4/0/0
[AR_04-bgp] peer 2409:8055:5C00:0:2800::2 password cipher huawei@123
[AR_04-bgp] ipv4-family unicast
[AR_04-bgp-af-ipv4]  undo synchronization
[AR_04-bgp-af-ipv4]  network 183.26.96.4 255.255.255.252
[AR_04-bgp-af-ipv4]  maximum load-balancing 8
[AR_04-bgp-af-ipv4]  peer 100.0.0.5 enable
[AR_04-bgp-af-ipv4]  peer 100.0.0.5 next-hop-local
[AR_04-bgp-af-ipv4]  peer 100.0.0.5 advertise-community
[AR_04-bgp-af-ipv4]  peer 183.26.96.5 enable
[AR_04-bgp-af-ipv4]  peer 183.26.96.5 default-route-advertise
[AR_04-bgp-af-ipv4] qui
[AR_04-bgp] ipv6-family unicast
[AR_04-bgp-af-ipv6]  undo synchronization
[AR_04-bgp-af-ipv6]  network 2409:8055:5C00:0:2800::2 127
[AR_04-bgp-af-ipv6]  maximum load-balancing 8
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 enable
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 next-hop-local
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 advertise-community
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800::2 enable
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800::2 default-route-advertise
[AR_04-bgp-af-ipv6] qui
[AR_04-bgp]qui
[AR_04]
--------------------------------------
	BR_01:
[BR_01]bgp 9808
[BR_01-bgp] router-id 221.179.3.5
[BR_01-bgp] group AR_Group internal
[BR_01-bgp] peer AR_Group connect-interface LoopBack0
[BR_01-bgp] peer AR_Group bfd min-tx-interval 300 min-rx-interval 300 detect 4
[BR_01-bgp] peer AR_Group bfd enable
[BR_01-bgp] peer 100.0.0.1 as-number 9808
[BR_01-bgp] peer 100.0.0.1 group AR_Group
[BR_01-bgp] peer 100.0.0.2 as-number 9808
[BR_01-bgp] peer 100.0.0.2 group AR_Group
[BR_01-bgp] peer 100.0.0.3 as-number 9808
[BR_01-bgp] peer 100.0.0.3 group AR_Group
[BR_01-bgp] peer 100.0.0.4 as-number 9808
[BR_01-bgp] peer 100.0.0.4 group AR_Group
[BR_01-bgp] peer 2409:8055:5C00:0:100::1 as-number 9808
[BR_01-bgp] peer 2409:8055:5C00:0:100::1 group AR_Group
[BR_01-bgp] peer 2409:8055:5C00:0:100::2 as-number 9808
[BR_01-bgp] peer 2409:8055:5C00:0:100::2 group AR_Group
[BR_01-bgp] peer 2409:8055:5C00:0:100::3 as-number 9808
[BR_01-bgp] peer 2409:8055:5C00:0:100::3 group AR_Group
[BR_01-bgp] peer 2409:8055:5C00:0:100::4 as-number 9808
[BR_01-bgp] peer 2409:8055:5C00:0:100::4 group AR_Group
[BR_01-bgp] ipv4-family unicast
[BR_01-bgp-af-ipv4]  undo synchronization
[BR_01-bgp-af-ipv4]  network 8.8.8.8 255.255.255.255
[BR_01-bgp-af-ipv4]  maximum load-balancing 8
[BR_01-bgp-af-ipv4]  peer AR_Group enable
[BR_01-bgp-af-ipv4]  peer AR_Group reflect-client
[BR_01-bgp-af-ipv4]  peer AR_Group advertise-community
[BR_01-bgp-af-ipv4]  peer 100.0.0.1 enable
[BR_01-bgp-af-ipv4]  peer 100.0.0.1 group AR_Group
[BR_01-bgp-af-ipv4]  peer 100.0.0.2 enable
[BR_01-bgp-af-ipv4]  peer 100.0.0.2 group AR_Group
[BR_01-bgp-af-ipv4]  peer 100.0.0.3 enable
[BR_01-bgp-af-ipv4]  peer 100.0.0.3 group AR_Group
[BR_01-bgp-af-ipv4]  peer 100.0.0.4 enable
[BR_01-bgp-af-ipv4]  peer 100.0.0.4 group AR_Group
[BR_01-bgp-af-ipv4] qui
[BR_01-bgp] ipv6-family unicast
[BR_01-bgp-af-ipv6]  undo synchronization
[BR_01-bgp-af-ipv6]  network 8::8 128
[BR_01-bgp-af-ipv6]  maximum load-balancing 8
[BR_01-bgp-af-ipv6]  peer AR_Group enable
[BR_01-bgp-af-ipv6]  peer AR_Group reflect-client
[BR_01-bgp-af-ipv6]  peer AR_Group advertise-community
[BR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::1 enable
[BR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::1 group AR_Group
[BR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::2 enable
[BR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::2 group AR_Group
[BR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::3 enable
[BR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::3 group AR_Group
[BR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::4 enable
[BR_01-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::4 group AR_Group
[BR_01-bgp-af-ipv6]qui
[BR_01-bgp]qui
[BR_01]

4、配对AR BGP互联

	AR_03:
[AR_03]route-policy set_lp_attribute permit node 10
[AR_03-route-policy] apply local-preference 3000
[AR_03-route-policy]qui
[AR_03]bgp 9808
[AR_03-bgp] peer 100.0.0.4 as-number 9808
[AR_03-bgp] peer 100.0.0.4 connect-interface LoopBack0
[AR_03-bgp] peer 100.0.0.4 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[AR_03-bgp] peer 100.0.0.4 bfd enable
[AR_03-bgp] peer 2409:8055:5C00:0:100::4 as-number 9808
[AR_03-bgp] peer 2409:8055:5C00:0:100::4 connect-interface LoopBack0
[AR_03-bgp] ipv4-family unicast
[AR_03-bgp-af-ipv4]  peer 100.0.0.4 enable
[AR_03-bgp-af-ipv4]  peer 100.0.0.4 route-policy set_lp_attribute import
[AR_03-bgp-af-ipv4]  peer 100.0.0.4 next-hop-local
[AR_03-bgp-af-ipv4]  peer 100.0.0.4 advertise-community
[AR_03-bgp-af-ipv4] qui
[AR_03-bgp] ipv6-family unicast
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::4 enable
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::4 route-policy set_lp_attribute import
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::4 next-hop-local
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::4 advertise-community
[AR_03-bgp-af-ipv6]qui
[AR_03-bgp]qui
[AR_03]
--------------------------------------
	AR_04:
[AR_04]route-policy set_lp_attribute permit node 10
[AR_04-route-policy] apply local-preference 3000
[AR_04-route-policy]qui
[AR_04]bgp 9808
[AR_04-bgp] peer 100.0.0.3 as-number 9808
[AR_04-bgp] peer 100.0.0.3 connect-interface LoopBack0
[AR_04-bgp] peer 100.0.0.3 bfd min-tx-interval 300 min-rx-interval 300 detect 4
[AR_04-bgp] peer 100.0.0.3 bfd enable
[AR_04-bgp] peer 2409:8055:5C00:0:100::3 as-number 9808
[AR_04-bgp] peer 2409:8055:5C00:0:100::3 connect-interface LoopBack0
[AR_04-bgp] ipv4-family unicast
[AR_04-bgp-af-ipv4]  peer 100.0.0.3 enable
[AR_04-bgp-af-ipv4]  peer 100.0.0.3 route-policy set_lp_attribute import
[AR_04-bgp-af-ipv4]  peer 100.0.0.3 next-hop-local
[AR_04-bgp-af-ipv4]  peer 100.0.0.3 advertise-community
[AR_04-bgp-af-ipv4] qui
[AR_04-bgp] ipv6-family unicast
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::3 enable
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::3 route-policy set_lp_attribute import
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::3 next-hop-local
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::3 advertise-community
[AR_04-bgp-af-ipv6] qui
[AR_04-bgp]qui
[AR_04]

5、发布虚拟下一跳路由策略

	AR_03:
[AR_03]ip ip-prefix ipv4_any index 10 permit 0.0.0.0 0 less-equal 32
[AR_03]ip ipv6-prefix ipv6_any index 10 permit :: 0 less-equal 128
[AR_03]ip community-filter basic bgp_next_virtual_hop permit 192168034
[AR_03]route-policy bgp_next_virtual_hop permit node 10
[AR_03-route-policy] if-match ip-prefix ipv4_any
[AR_03-route-policy] if-match ipv6 address prefix-list ipv6_any
[AR_03-route-policy] if-match community-filter bgp_next_virtual_hop
[AR_03-route-policy] apply ip-address next-hop 192.168.0.34
[AR_03-route-policy] apply ipv6 next-hop 2409:8055:5C00:0:192:168:0:34
[AR_03-route-policy] apply local-preference 500
[AR_03-route-policy]qui
[AR_03]route-policy bgp_next_virtual_hop permit node 20
[AR_03-route-policy]qui
[AR_03]bgp 9808
[AR_03-bgp] ipv4-family unicast
[AR_03-bgp-af-ipv4]  peer 100.0.0.5 route-policy bgp_next_virtual_hop export
[AR_03-bgp-af-ipv4] qui
[AR_03-bgp] ipv6-family unicast
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 route-policy bgp_next_virtual_hop export
[AR_03-bgp-af-ipv6]qui
[AR_03-bgp]qui
[AR_03]
--------------------------------------
	AR_04:
[AR_04]ip ip-prefix ipv4_any index 10 permit 0.0.0.0 0 less-equal 32
[AR_04]ip ipv6-prefix ipv6_any index 10 permit :: 0 less-equal 128
[AR_04]ip community-filter basic bgp_next_virtual_hop permit 192168034
[AR_04]route-policy bgp_next_virtual_hop permit node 10
[AR_04-route-policy] if-match ip-prefix ipv4_any
[AR_04-route-policy] if-match ipv6 address prefix-list ipv6_any
[AR_04-route-policy] if-match community-filter bgp_next_virtual_hop
[AR_04-route-policy] apply ip-address next-hop 192.168.0.34
[AR_04-route-policy] apply ipv6 next-hop 2409:8055:5C00:0:192:168:0:34
[AR_04-route-policy] apply local-preference 500
[AR_04-route-policy]qui
[AR_04]route-policy bgp_next_virtual_hop permit node 20
[AR_04-route-policy]qui
[AR_04]bgp 9808
[AR_04-bgp] ipv4-family unicast
[AR_04-bgp-af-ipv4]  peer 100.0.0.5 route-policy bgp_next_virtual_hop export
[AR_04-bgp-af-ipv4] qui
[AR_04-bgp] ipv6-family unicast
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:100::5 route-policy bgp_next_virtual_hop export
[AR_04-bgp-af-ipv6]qui
[AR_04-bgp]qui
[AR_04]

6、业务路由策略

	AR_03:
[AR_03]ip ip-prefix accepted_routes index 10 permit 223.73.54.0 24
[AR_03]ip ipv6-prefix accepted_routes index 10 permit 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 112
[AR_03]ip ipv6-prefix accepted_routes index 20 permit 2001:DB8:888:1:: 112
[AR_03]ip ipv6-prefix accepted_routes index 30 permit 2409:8086:5A0A:10:1:12:: 112
[AR_03]ip ipv6-prefix accepted_routes index 40 permit 2409:8086:5A0A:10:1:13:: 112
[AR_03]route-policy accepted_routes permit node 10
[AR_03-route-policy] if-match ip-prefix accepted_routes
[AR_03-route-policy] if-match ipv6 address prefix-list accepted_routes
[AR_03-route-policy] apply community 192168034
[AR_03-route-policy] apply local-preference 5000
[AR_03-route-policy]qui
[AR_03]route-policy accepted_routes deny node 999
[AR_03-route-policy]qui
[AR_03]bgp 9808
[AR_03-bgp] ipv4-family unicast
[AR_03-bgp-af-ipv4]  peer 183.26.96.1 route-policy accepted_routes import
[AR_03-bgp-af-ipv4]  peer 183.26.96.1 default-route-advertise
[AR_03-bgp-af-ipv4] qui
[AR_03-bgp] ipv6-family unicast
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800:: route-policy accepted_routes import
[AR_03-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800:: default-route-advertise
[AR_03-bgp-af-ipv6]qui
[AR_03-bgp]qui
[AR_03]
--------------------------------------
	AR_04:
[AR_04]ip ip-prefix accepted_routes index 10 permit 223.73.54.0 24
[AR_04]ip ipv6-prefix accepted_routes index 10 permit 2409:8A55:936:1AE0:B04D:C0DD:94F7:0 112
[AR_04]ip ipv6-prefix accepted_routes index 20 permit 2001:DB8:888:1:: 112
[AR_04]ip ipv6-prefix accepted_routes index 30 permit 2409:8086:5A0A:10:1:12:: 112
[AR_04]ip ipv6-prefix accepted_routes index 40 permit 2409:8086:5A0A:10:1:13:: 112
[AR_04]route-policy accepted_routes permit node 10
[AR_04-route-policy] if-match ip-prefix accepted_routes
[AR_04-route-policy] if-match ipv6 address prefix-list accepted_routes
[AR_04-route-policy] apply community 192168034
[AR_04-route-policy] apply local-preference 5000
[AR_04-route-policy]qui
[AR_04]route-policy accepted_routes deny node 999
[AR_04-route-policy]qui
[AR_04]bgp 9808
[AR_04-bgp] ipv4-family unicast
[AR_04-bgp-af-ipv4]  peer 183.26.96.5 route-policy accepted_routes import
[AR_04-bgp-af-ipv4]  peer 183.26.96.5 default-route-advertise
[AR_04-bgp-af-ipv4] qui
[AR_04-bgp] ipv6-family unicast
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800::2 route-policy accepted_routes import
[AR_04-bgp-af-ipv6]  peer 2409:8055:5C00:0:2800::2 default-route-advertise
[AR_04-bgp-af-ipv6]qui
[AR_04-bgp]qui
[AR_04]

本文地址：https://www.vps345.com/9066.html

上一篇：CentOS7 yum安装报错“Could not resolve host:···

下一篇：Ubuntu上查看端口被哪个进程占用了

[2025-05-08]

CentOS9下载安装教程

[2025-05-08]

在 Windows 下使用 Linux 命令的多种方···

[2025-05-08]

SangforPWEx.exe如何关闭

[2025-05-08]

【超适合小白】苹果电脑MAC——抓包工具···

[2025-05-08]

在Ubuntu 22.04 中安装Docker的详细指南···

[2025-05-08]

CentOS9下载安装教程

[2025-05-08]

在 Windows 下使用 Linux 命令的多种方···

[2025-05-08]

SangforPWEx.exe如何关闭

[2025-05-08]

【超适合小白】苹果电脑MAC——抓包工具···

[2025-05-08]

在Ubuntu 22.04 中安装Docker的详细指南···

搜索文章

所有分类

帮助文档（3564）香港服务器（2376）美国服务器（3193）香港站群服务器（0）美国站群服务器（0）

Tags

PV计算带宽计算流量带宽服务器带宽上行带宽上行速率什么是上行带宽？ CC攻击攻击怎么办流量攻击 DDOS攻击服务器被攻击怎么办源IP 服务器 linux 运维游戏云计算网络工程师网络管理软考 2024 2024年上半年下午真题答案 ubuntu ssh RTSP xop RTP RTSPServer 推流视频进程操作系统进程控制 Ubuntu python MCP Ollama Qwen2.5-coder 离线部署 deepseek 模型联网 API CherryStudio 阿里云网络网络安全网络协议 llama 算法 opencv 自然语言处理神经网络语言模型数据库 centos oracle 关系型安全分布式 php 开发语言英语 javascript 前端 chrome edge macos windows conda harmonyos 华为 typescript 计算机网络 docker 容器开发环境 vscode 笔记 adb 数据库系统 vue.js spring boot nginx java DNS c语言人工智能深度学习计算机视觉卷积神经网络 tomcat jvm 虚拟机 mysql android 经验分享 tcp/ip ip协议 ubuntu 18.04 安装教程 Deepseek Deepseek-R1 大模型私有化部署推理模型负载均衡 debian PVE word图片自动上传 word一键转存复制word图片复制word图文复制word公式粘贴word图文粘贴word公式 jenkins gitee kafka 数据分析 https 科技 ai 个人开发学习方法学习 jellyfin nas node.js openvpn server openvpn配置教程 centos安装openvpn react.js 前端面试题持续部署 c++ 并查集 leetcode 后端机器学习智能路由器外网访问内网穿透端口映射 redis USB转串口 CH340 ollama llm gcc centos 7 部署 ssh漏洞 ssh9.9p2 CVE-2025-23419 fstab 环境变量 asm Dify mcu 单片机 Hyper-V WinRM TrustedHosts gnu pip fastapi mcp mcp-proxy mcp-inspector fastapi-mcp agent sse 高级IO epoll json 服务器安全网络安全策略防御服务器攻击安全威胁和解决方案程序员博客保护数据保护安全最佳实践 C# MQTTS 双向认证 emqx 大数据 spark hive 开源 milvus WSL2 上安装 Ubuntu EtherCAT转Modbus ECT转Modbus协议 EtherCAT转485网关 ECT转Modbus串口网关 EtherCAT转485协议 ECT转Modbus网关 pytorch transformer Alexnet oceanbase 传统数据库升级银行 qt QT 5.12.12 QT开发环境 Ubuntu18.04 Dell R750XS YOLO 嵌入式 linux驱动开发 arm开发嵌入式硬件 GaN HEMT 氮化镓单粒子烧毁辐射损伤辐照效应物联网 iot 信息与通信微信微信分享鸿蒙 Image wxopensdk 进程优先级调度队列进程切换华为云 udp unity 媒体 matplotlib fonts-noto-cjk k8s kubernetes protobuf 序列化和反序列化安装 yum docker-compose docker compose cron crontab日志数据结构 rust http 思科 mac 游戏程序 ios onlyoffice rtsp服务器 rtsp server android rtsp服务安卓rtsp服务器移动端rtsp服务大牛直播SDK AI maxkb ARG uni-app 程序员创富 nlp HarmonyOS Next yolov5 SRS 流媒体直播 pycharm ide Linux 进程信号 c# VMware安装mocOS VMware macOS系统安装宝塔面板访问不了宝塔面板网站访问不了宝塔面板怎么配置网站能访问宝塔面板配置ip访问宝塔面板配置域名访问教程宝塔面板配置教程 github audio vue音乐播放器 vue播放音频文件 Audio音频播放器自定义样式播放暂停进度条音量调节快进快退自定义audio覆盖默认样式 unix 自动化 windows 服务器安装 .netcore virtualenv 策略模式产品经理 agi microsoft vim spring C语言 C 进程地址空间 Linux PID outlook 错误代码2603 无网络连接 2603 rust腐蚀 ue5 vr ssl 本地环回 bind 前端框架指令 ip命令新增网卡新增IP 启动网卡 stm32项目 stm32 多线程互信架构像素流送api 像素流送UE4 像素流送卡顿像素流送并发支持 CPU 内存主板电源网卡 AI编程 vnc filezilla 无法连接服务器连接被服务器拒绝 vsftpd 331/530 Docker Hub docker pull 镜像源 daemon.json 集成学习集成测试 Hive环境搭建 hive3环境 Hive远程模式 HCIE 数通 kylin eureka WebUI DeepSeek V3 DeepSeek AI大模型 DevEco Studio gateway Clion Nova ResharperC++引擎 Centos7 远程开发 rabbitmq efficientVIT YOLOv8替换主干网络 TOLOv8 Agent LLM CrewAI dify spring cloud java-rabbitmq 网络药理学生信生物信息学 gromacs 分子动力学模拟 MD 动力学模拟 vmware 卡死 burp suite 抓包 numpy iftop 网络流量监控 xcode 创意社区 VMware创建虚拟机 GPU环境配置 Ubuntu22 CUDA PyTorch Anaconda安装 perf ddos MacOS录屏软件 flutter 面试性能优化 jdk intellij-idea 串口服务器课程设计 prometheus 监控k8s集群集群内prometheus 小程序微信小程序域名配置微信小程序服务器域名微信小程序合法域名小程序配置业务域名微信小程序需要域名吗微信小程序添加域名 git elasticsearch 目标检测大模型技术本地部署大模型 dubbo vue3 HTML audio 控件组件 vue3 audio音乐播放器 Audio标签自定义样式默认 vue3播放音频文件音效音乐自定义audio播放器样式播放暂停调整声音大小下载文件 bash 聚类 java-ee 运维开发云原生 compose devops ui 华为od 实时音视频实时互动 ip DeepSeek-R1 API接口链表机器人 golang powerpoint 计算机外设 bug etcd 数据安全 RBAC Flask FastAPI Waitress Gunicorn uWSGI Uvicorn websocket sublime text 编辑器 svn apache 电脑软件需求虚拟现实 JAVA Java oracle fusion oracle中间件 web安全私有化本地部署 UEFI Legacy MBR GPT U盘安装操作系统 open webui chatgpt llama3 Chatglm 开源大模型 iBMC UltraISO AI-native Docker Desktop 树深度优先图论并集查找换根法树上倍增多层架构解耦读写锁 ffmpeg 音视频多线程服务器 Linux网络编程 centos-root /dev/mapper yum clean all df -h / du -sh 程序人生 deepseek-r1 大模型本地部署 dell服务器 seatunnel 温湿度数据上传到服务器 Arduino HTTP 腾讯云 3d 数学建模计算生物学生物信息基因组 Portainer搭建 Portainer使用 Portainer使用详解 Portainer详解 Portainer portainer ansible playbook 剧本 MacMini Mac 迷你主机 mini Apple ue4 着色器虚幻 mongodb 目标跟踪 OpenVINO 推理应用 burpsuite 安全工具 mac安全工具 burp安装教程渗透工具银河麒麟服务器操作系统系统激活 webstorm 驱动开发硬件工程嵌入式实习 rag ragflow ragflow 源码启动 cuda cudnn anaconda windwos防火墙 defender防火墙 win防火墙白名单防火墙白名单效果防火墙只允许指定应用上网防火墙允许指定上网其它禁止强制清理强制删除 mac废纸篓微服务 springcloud 工业4.0 Reactor 设计模式 C++ sql KingBase 镜像下载 freebsd 博客 vue Cline 缓存 OpenManus AIGC list AI写作 gpu算力 pygame 网易邮箱大师 xml rc.local 开机自启 systemd 麒麟命名管道客户端与服务端通信 express p2p 生活虚拟显示器远程控制 grafana ESP32 微信小程序 miniapp 真机调试调试 debug 断点网络API请求调试方法 HiCar CarLife+ CarPlay QT RK3588 网络结构图 arm CLion 远程连接 IDE ubuntu20.04 ros ros1 Noetic 20.04 apt 安装智能手机 NAS Termux Samba ping++ zotero WebDAV 同步失败代理模式 firewalld python2 ubuntu24.04 远程工作 Doris搭建 docker搭建Doris Doris搭建过程 linux搭建Doris Doris搭建详细步骤 Doris部署 postman mock mock server 模拟服务器 mock服务器 Postman内置变量 Postman随机数据 ollama下载加速视频编解码远程命令执行 sshpass 操作迁移指南浪潮信息 AI服务器设置代理实用教程 Ubuntu共享文件夹共享目录 Linux共享文件夹大模型部署离线部署dify IIS服务器 IIS性能日志监控 springboot Cursor 系统开发 binder 车载系统 framework 源码环境权限 EtherNet/IP串口网关 EIP转RS485 EIP转Modbus EtherNet/IP网关协议 EIP转RS485网关 EIP串口服务器 postgresql linux内核 minicom 串口调试工具测试工具 fd 文件描述符蓝耘科技元生代平台工作流 ComfyUI 飞牛nas fnos 区块链知识库本地化部署客户端 kamailio sip VoIP .net iperf3 带宽测试 maven 安卓模拟器 sqlserver 豆瓣追剧助手迅雷 tcp visual studio code 5G 3GPP 卫星通信 alias unalias 别名 mq rocketmq rpc 银河麒麟 kylin v10 麒麟 v10 html 低代码 aws googlecloud vSphere vCenter 软件定义数据中心 sddc WSL2 Ubuntu22.04 虚拟化开发人员主页 Linux的权限 flash-attention 报错 VMware安装Ubuntu Ubuntu安装k8s gitlab selenium LDAP 僵尸进程大语言模型 LLMs shell jmeter 软件测试 NFS 监控k8s 监控kubernetes intellij idea 监控自动化运维安防软件环境配置爬虫数据集 WebVM Ubuntu DeepSeek DeepSeek Ubuntu DeepSeek 本地部署 DeepSeek 知识库 DeepSeek 私有化知识库本地部署 DeepSeek DeepSeek 私有化部署基础环境流水线脚本式流水线向日葵 Linux 维护模式 rdp 实验 Linux无人智慧超市 LInux多线程服务器 QT项目 LInux项目单片机项目 html5 firefox gpt 大数据平台 log4j edge浏览器 Ubuntu Server Ubuntu 22.04.5 1024程序员节云桌面微软 AD域控证书服务器 TrueLicense Kali Linux 黑客渗透测试信息收集系统安全 django flask web3.py linux上传下载 Chatbox 软件工程软件构建 jupyter RAGFLOW database ux docker run 数据卷挂载交互模式自动化编程 openwrt axure 富文本编辑器 WLAN 代码调试 ipdb ros2 moveit 机器人运动 ESXi rancher 嵌入式系统开发 ai小智语音助手 ai小智配网 ai小智教程智能硬件 esp32语音助手 diy语音助手 oneapi 电子信息通信工程毕业 wireshark 显示过滤器 ICMP Wireshark安装模拟实现中间件 iis linux环境变量 MQTT协议消息服务器代码视觉检测 live555 源码剖析 rtsp实现步骤流媒体开发 export import save load 迁移镜像 rime 文件系统路径解析 sqlite3 IM即时通讯 QQ 企业微信剪切板对通 HTML FORMAT threejs 3D pillow okhttp rtsp rtp 远程看看远程协助 IPMI nftables 防火墙 WSL win11 无法解析服务器的名称或地址串口驱动 CH341 uart 485 无人机开发 DigitalOcean GPU服务器购买 GPU服务器哪里有 GPU服务器 bcompare Beyond Compare 统信UOS bonding 链路聚合程序编程性能分析 Google pay Apple pay 压测 ECS camera Arduino GCC aarch64 编译安装 HPC 政务分布式系统监控运维 Prometheus Grafana windows日志虚拟局域网 selete tar 域名服务 DHCP 符号链接配置键盘深度求索私域隐藏文件隐藏目录管理器通配符 tcpdump hadoop linux安装配置系统架构 FTP 服务器 kali 共享文件夹话题通信服务通信交互 Windsurf 磁盘监控腾讯云大模型知识引擎数据挖掘网络用户购物行为分析可视化平台大数据毕业设计 cpu 实时使用安卓中兴光猫换光猫网络桥接自己换光猫实战案例 go 主从复制云原生开发 K8S k8s管理系统 file server http server web server remote-ssh ipython fpga开发鸿蒙系统灵办AI docker搭建pg docker搭建pgsql pg授权 postgresql使用 postgresql搭建 docker搭建nacos详解 docker部署nacos docker安装nacos 腾讯云搭建nacos centos7搭建nacos YOLOv8 NPU Atlas800 A300I pro asi_bench jar gradle YOLOv12 TCP WebServer frp KylinV10 麒麟操作系统 Vmware UOS 统信操作系统 mount挂载磁盘 wrong fs type LVM挂载磁盘 Centos7.9 mybatis wps web Erlang OTP gen_server 热代码交换事务语义 ubuntu24.04.1 搜索引擎 MNN Qwen webrtc HP Anyware vpn c/c++ 串口 excel cursor es6 qt6.3 g726 多进程具身智能 Isaac Sim 虚拟仿真 yolov8 游戏服务器 Minecraft llama.cpp minio pdf 办公自动化自动化生成 pdf教程宝塔面板 CentOS rnn Dell HPE 联想浪潮压力测试安全威胁分析图像处理 ecmascript KVM 分析解读 npm n8n 工作流 workflow 远程桌面图片增强增强数据 gaussdb 交叉编译 ArkTs ArkUI 服务器无法访问 ip地址无法访问无法访问宝塔面板宝塔面板打不开 IIS .net core Hosting Bundle .NET Framework vs2022 信号测试用例功能测试 ruoyi asp.net大文件上传 asp.net大文件上传源码 ASP.NET断点续传 asp.net上传文件夹 asp.net上传大文件 .net core断点续传 .net mvc断点续传 android studio kind 边缘计算内网渗透靶机渗透 AI作画服务器配置 Cookie 聊天室职场和发展 Mac内存不够用怎么办 arcgis ELF加载思科模拟器 Cisco 服务器扩容没有扩容成功 openEuler 矩阵 k8s二次开发集群管理国产数据库瀚高数据库数据迁移下载安装 muduo 宠物毕业设计免费学习宠物领养宠物平台 X11 Xming pyautogui Trae AI 原生集成开发环境 Trae AI glibc 群晖飞牛小艺 Pura X DBeaver 其他开机自启动视频平台录像视频转发性能测试视频流存储 mamba Vmamba mariadb Invalid Host allowedHosts bot Docker 华为证书 HarmonyOS认证华为证书考试 clickhouse 推荐算法社交电子 AP配网 AK配网小程序AP配网和AK配网教程 WIFI设备配网小程序UDP开代理 CosyVoice Kylin-Server 国产操作系统服务器安装自动驾驶 prompt SEO Ark-TS语言显示管理器 lightdm gdm wsl 版本云电竞云电脑 todesk 单例模式宝塔 ROS PX4 MAVROS 四旋翼无人机程序员宝塔面板无法访问 vscode 1.86 网站搭建 serv00 jetty undertow grub 版本升级扩容 lio-sam SLAM VR手套数据手套动捕手套动捕数据手套微信开放平台微信公众平台微信公众号配置 DeepSeek r1 Open WebUI 远程登录 telnet fork wait waitpid exit cd 目录切换 su sudo SSH tensorflow 弹性计算云服务器裸金属服务器弹性裸金属服务器 banner eclipse 热榜工具输入法游戏引擎 NLP模型 NLP av1 电视盒子机顶盒ROM 魔百盒刷机自学笔记小米澎湃OS Android 蓝桥杯 cmos 硬件 apt 国内源 Node-Red 编程工具流编程 neo4j 数据仓库数据库开发数据库架构跨域 rustdesk 重启排查系统重启日志原因 DeepSeek行业应用 Heroku 网站部署毕昇JDK Web服务器多线程下载工具网络编程 PYTHON 双系统 kotlin iphone xpath定位元素 keepalived 游戏机 curl wget bat hugo sonoma 自动更新 Netty 即时通信 NIO SWAT 配置文件服务管理网络共享 dash 正则表达式 vmamba nuxt3 硬件架构内核毕设 chrome devtools chromedriver HarmonyOS NEXT 原生鸿蒙 linux 命令 sed 命令半虚拟化硬件虚拟化 Hypervisor Web应用服务器 RoboVLM 通用机器人策略 VLA设计哲学 vlm fot robot 视觉语言动作模型 ArcTS 登录 ArcUI GridItem react next.js 部署next.js arkUI micropython esp32 mqtt ocr 命令行基础入门 easyui langchain 算力计算机服务器管理配置教程网站管理高效I/O sqlite 实习 pgpool SSH 服务 SSH Server OpenSSH Server deep learning openssl 密码学业界资讯模拟退火算法 c 田俊楠 VMware Tools vmware tools安装 vmwaretools安装步骤 vmwaretools安装失败 vmware tool安装步骤 vm tools安装步骤 vm tools安装后不能拖 vmware tools安装步骤 k8s部署 MySQL8.0 高可用集群（1主2从） MQTT mosquitto 消息队列自动化任务管理 r语言数据可视化 yum源切换更换国内yum源 Reactor反应堆代码托管服务 hibernate 高效远程协作 TrustViewer体验跨设备操作便利智能远程控制 HarmonyOS OpenHarmony 本地部署AI大模型统信 UOS1070e 远程过程调用 Windows环境 W5500 OLED u8g2 TCP服务器 chfs ubuntu 16.04 金仓数据库 2025 征文数据库平替用金仓漏洞 webdav 同步备份建站图形渲染库 Carla 智能驾驶 Java Applet URL操作服务器建立 Socket编程网络文件读取系统黑苹果小游戏五子棋直流充电桩充电桩 sdkman ukui 麒麟kylinos openeuler 免费域名域名解析 zabbix CentOS Stream xfce docker命令大全 ci/cd MCP server C/S unity3d DocFlow 网络穿透安全架构自动化测试 nvidia 火绒安全 VPS Nuxt.js lvm 磁盘挂载磁盘分区相机恒源云 samba css 小智致远OA OA服务器服务器磁盘扩容上传视频至服务器代码 vue3批量上传多个视频并预览如何实现将本地视频上传到网页 element plu视频上传 ant design vue vue3本地上传视频及预览移除 mysql离线安装 ubuntu22.04 mysql8.0 OD机试真题华为OD机试真题服务器能耗统计源码 CORS redhat 服务器繁忙飞书混合开发环境安装 JDK dns uniapp elk 考研在线office 京东云 matlab vasp安装智能音箱智能家居能力提升面试宝典技术 IT信息化 AutoDL webgl 信息可视化 echarts ArkTS 移动端开发 AnythingLLM AnythingLLM安装 code-server zip unzip 软链接硬链接 XCC Lenovo ebpf uprobe asp.net大文件上传下载繁忙解决办法替代网站汇总推荐 AI推理 ROS2 移动云 CDN chrome 浏览器下载 chrome 下载安装谷歌浏览器下载 GameFramework HybridCLR Unity编辑器扩展自动化工具鲲鹏端口测试 Redis Desktop MDK 嵌入式开发工具论文笔记大模型面经大模型学习 wsgiref Web 服务器网关接口 kvm qemu libvirt rclone AList fnOS 联网 easyconnect nfs 网页设计 SSL 域名 skynet 网络爬虫 MySql AISphereButler embedding 王者荣耀 cnn 开机黑屏邮件APP 免费软件交换机设备 GPU PCI-Express opengl Linux的基础指令电视剧收视率分析与可视化平台文心一言虚拟机安装浏览器自动化 can 线程池 Xinference RAGFlow java-rocketmq Jellyfin LORA 飞牛NAS 飞牛OS MacBook Pro 大模型入门大模型教程 harmonyOS面试题 safari Playwright ssh远程登录 visual studio 历史版本下载 virtualbox 黑客技术 etl Linux24.04 deepin URL 健康医疗互联网医院信号处理 api ubuntu24 vivado24 pyqt Xterminal 孤岛惊魂4 昇腾 npu open Euler dde stable diffusion RTMP 应用层 big data opensearch helm 服务器主板 AI芯片 MI300x 雨云 NPS WebRTC k8s集群资源管理 TrinityCore 魔兽世界 sysctl.conf vm.nr_hugepages adobe 大文件分片上传断点续传及进度条如何批量上传超大文件并显示进度 axios大文件切片上传详细教 node服务器合并切片 vue3大文件上传报错提示错误 vu大文件秒传跨域报错cors Python 聊天服务器套接字 Socket AI代码编辑器 IPMITOOL BMC 硬件管理 opcua opcda KEPServer安装 make命令 makefile文件 Helm k8s集群 lsb_release /etc/issue /proc/version uname -r 查看ubuntu版本大模型微调 string模拟实现深拷贝浅拷贝经典的string类问题三个swap 技能大赛 Mermaid 可视化图表 dity make eNSP 网络规划 VLAN 企业网络用户缓冲区文件分享 Kali 支付微信支付开放平台云服务 uv 雨云服务器华为认证 springsecurity6 oauth2 授权服务器 token sas dba MS Materials 可信计算技术崖山数据库 YashanDB 镜像 visualstudio 直播推流服务器部署ai模型 rsyslog 机柜 1U 2U Anolis nginx安装 linux插件下载高效日志打印串口通信日志服务器日志系统状态监控日志异常记录日志 cocoapods 代码规范 saltstack k8s资源监控 annotations自动化自动化监控监控service 监控jvm 服务器数据恢复数据恢复存储数据恢复 raid5数据恢复磁盘阵列数据恢复 searxng SenseVoice top Linux top top命令详解 top命令重点 top常用参数银河麒麟操作系统国产化 Docker引擎已经停止 Docker无法使用 WSL进度一直是0 镜像加速地址 risc-v firewall openstack Xen Zoertier 内网组网 cfssl Docker Compose 渗透 composer 三级等保服务器审计日志备份回显服务器 UDP的API使用产测工具框架 IMX6ULL 管理框架 Tabs组件 TabContent TabBar TabsController 导航页签栏滚动导航栏无桌面 Attention DIFY 云耀服务器内网环境 TRAE bootstrap nextjs reactjs EasyConnect 图形化界面 RAG 检索增强生成文档解析大模型垂直应用 Typore RustDesk自建服务器 rustdesk服务器 docker rustdesk nac 802.1 portal 流式接口 React Next.js 开源框架联想开天P90Z装win10 kernel trea idea ssrf 失效的访问控制宕机切换服务器宕机 less 模拟器教程上传视频文件到服务器 uniApp本地上传视频并预览 uniapp移动端h5网页 uniapp微信小程序上传视频 uniapp app端视频上传 uniapp uview组件库小番茄C盘清理便捷易用C盘清理工具小番茄C盘清理的优势尽显何处？教你深度体验小番茄C盘清理 C盘变红？！不知所措？ C盘瘦身后电脑会发生什么变化？大文件秒传跨域报错cors 网工 Windows 医疗APP开发 app开发 DOIT 四博智联 lb 协议 xrdp scikit-learn Unity Dedicated Server Host Client 无头主机数据管理数据治理数据编织数据虚拟化 IO 强化学习 SSL证书 yaml Ultralytics 可视化 idm 匿名管道 notepad ceph nvm 网络攻击模型 7z thingsboard 显卡驱动 fast Ubuntu 24.04.1 轻量级服务器 iDRAC R720xd 大模型应用 powerbi 网页服务器 web服务器 Nginx OpenSSH VSCode odoo 服务器动作 Server action gpt-3 树莓派 VNC db 环境迁移人工智能生成内容 XFS xfs文件系统损坏 I_O error es 金融相差8小时 UTC 时间容器技术 netty Qualcomm WoS QNN AppBuilder 序列化反序列化 jina IPv4 子网掩码公网IP 私有IP SSH 密钥生成 SSH 公钥私钥生成开源软件智能电视 Linux awk awk函数 awk结构 awk内置变量 awk参数 awk脚本 awk详解 ruby FunASR ASR 线程 ShenTong 单元测试智慧农业开源鸿蒙团队开发拓扑图状态管理的 UDP 服务器 Arduino RTOS 磁盘清理跨平台框架搭建 gitea conda配置 conda镜像源 Wi-Fi 硅基流动 ChatBox 换源 Debian springboot远程调试 java项目远程debug docker远程debug java项目远程调试 springboot远程前后端分离 P2P HDLC Linux权限权限命令特殊权限 GRUB引导 Linux技巧 vite wsl2 x64 SIGSEGV SSE xmm0 稳定性看门狗执法记录仪智能安全帽 smarteye trae RAID RAID技术磁盘 SysBench 基准测试服务器时间 ecm bpm crosstool-ng MAC SecureCRT 查看显卡进程 fuser ArtTS IO模型 NAT转发 NAT Server deekseek Ardupilot 备份SQL Server数据库数据库备份傲梅企业备份网络版音乐服务器 Navidrome 音流软负载大版本升升级Ubuntu系统常用命令文本命令目录命令 python3.11 dns是什么如何设置电脑dns dns应该如何设置 xss Office 笔灵AI AI工具 MacOS ECT转485串口服务器 ECT转Modbus485协议 ECT转Modbus串口服务器音乐库 HistoryServer Spark YARN jobhistory 环境搭建 Maven deployment daemonset statefulset cronjob AI员工 g++ g++13 AI agent iventoy VmWare OpenEuler Linux环境运维监控授时服务北斗授时 VPN wireguard IMX317 MIPI H265 VCU cmake 计算机科学与技术 uni-file-picker 拍摄从相册选择 uni.uploadFile H5上传图片微信小程序上传图片 Qwen2.5-VL vllm VS Code 达梦 DM8 Linux find grep 钉钉计算虚拟化弹性裸金属端口聚合 windows11 hexo 负载测试网卡的名称修改 eth0 ens33 System V共享内存进程通信 hosts sublime text3 服务器部署本地拉取打包 nosql 语法游戏开发 docker desktop image 磁盘镜像服务器镜像服务器实时复制实时文件备份网络建设与运维空间查错备选网站调用示例银河麒麟桌面操作系统 Kylin OS 在线预览 xlsx xls文件在浏览器直接打开解析xls表格前端实现vue3打开excel 文件地址url或接口文档流二进 win服务器架设 windows server nohup后台启动 H3C 我的世界服务器搭建 minecraft 端口查看 ss xshell termius iterm2 HTTP 服务器控制 ESP32 DeepSeek docker部署翻译组件 docker部署deepl docker搭建deepl java对接deepl 翻译组件使用查询数据库服务IP地址 SQL Server 分布式训练语音识别 sudo原理 su切换 word 服务网格 istio csrutil mac恢复模式进入方法 SIP 恢复模式 js 状态模式 rpa FTP服务器知识图谱 qt项目 qt项目实战 qt教程冯诺依曼体系极限编程个人博客国标28181 视频监控监控接入语音广播流程 SDP 企业网络规划华为eNSP 合成模型扩散模型图像生成安装MySQL 根服务器 WINCC iNode Macos DevOps 软件交付数据驱动应用场景 umeditor粘贴word ueditor粘贴word ueditor复制word ueditor上传word图片 ueditor导入word ueditor导入pdf ueditor导入ppt Docker快速入门多产物 LInux 鸿蒙开发移动开发银河麒麟高级服务器外接硬盘 Kylin react native qps 高并发捆绑链接谷歌浏览器 youtube google gmail 小智AI服务端 xiaozhi TTS 抓包工具网络文件系统 AD 域域管理 laravel 阻塞队列生产者消费者模型服务器崩坏原因 AzureDataStudio junit sequoiaDB 需求分析规格说明书 nacos perl deepseak 豆包 KIMI 腾讯元宝 CNNs 图像分类 qt5 客户端开发 prometheus数据采集 prometheus数据模型 prometheus特点内网服务器内网代理内网通信 grep 软件端口号开放端口访问列表反向代理 whistle ranger MySQL8.0 怎么卸载MySQL MySQL怎么卸载干净 MySQL卸载重新安装教程 MySQL5.7卸载 Linux卸载MySQL8.0 如何卸载MySQL教程 MySQL卸载与安装桌面环境 regedit 开机启动李心怡大模型训练/推理推理问题 mindie Python基础 Python教程 Python技巧北亚数据恢复 oracle数据恢复影刀 #影刀RPA# diskgenius docker部署Python Headless Linux 玩机技巧软件分享软件图标 wpf Radius Claude mcp服务器 client close figma zookeeper flink Mac软件物联网开发 beautifulsoup DenseNet 大屏端沙盒大大通第三代半导体碳化硅 EVE-NG 软件卸载系统清理 shell脚本免交互 expect linux免交互 ai工具增强现实沉浸式体验技术实现案例分析 AR 多路转接移动魔百盒 GoogLeNet 终端工具远程工具做raid 装系统 USB网络共享 VM搭建win2012 win2012应急响应靶机搭建攻击者获取服务器权限上传wakaung病毒应急响应并溯源挖矿病毒处置应急响应综合性靶场 h.264 MobaXterm 文件传输虚幻引擎项目部署到linux服务器项目部署过程超融合问题解决 Sealos env 变量论文阅读 deepseek r1 pppoe radius AD域华为OD 可以组成网络的服务器 cpp-httplib 浏览器开发 AI浏览器 web3 Ubuntu 24 常用命令 Ubuntu 24 Ubuntu vi 异常处理单一职责原则烟花代码烟花元旦性能调优安全代理本地知识库部署 DeepSeek R1 模型蓝牙 IMM tidb GLIBC 网络搭建神州数码神州数码云平台云平台 copilot 免密公钥私钥 navicat 搭建个人相关服务器 kerberos EMQX 通信协议华为机试 ufw Xshell Linux Vim 僵尸世界大战游戏服务器搭建 PPI String Cytoscape CytoHubba 自定义客户端 SAS GIS 遥感 WebGIS TCP协议 swoole 抗锯齿阿里云ECS ldap yashandb scapy armbian u-boot Logstash 日志采集进程程序替换 execl函数 execv函数 execvp函数 execvpe函数 putenv函数架构与原理 ftp 升级 CVE-2024-7347 多个客户端访问 IO多路复用 TCP相关API iTerm2 IDEA nohup 异步执行高德地图鸿蒙接入高德地图 HarmonyOS5.0 vscode1.86 1.86版本 ssh远程连接 gunicorn tailscale derp derper 中转 triton 模型分析 LLM Web APP Streamlit MVS 海康威视相机远程服务数码联机僵尸毁灭工程游戏联机开服 dock 加速欧标 OCPP proxy模式 lua vue-i18n 国际化多语言 vue2中英文切换详细教程如何动态加载i18n语言包把语言json放到服务器调用前端调用api获取语言配置文件嵌入式Linux IPC EMUI 回退降级 Apache Beam 批流统一案例展示数据分区容错机制 CPU 使用率系统监控工具 linux 命令代理服务器多端开发智慧分发应用生态鸿蒙OS ajax netlink libnl3 midjourney ftp服务文件上传日志分析系统取证信创信创终端中科方德 sentinel 佛山戴尔服务器维修佛山三水服务器维修 mysql安装报错 windows拒绝安装 seleium wordpress 无法访问wordpess后台打开网站页面错乱 linux宝塔面板 wordpress更换服务器底层实现 v10 元服务应用上架干货分享黑客工具密码爆破 pyicu Spring Security 技术共享我的世界我的世界联机工具分享对比 meld DiffMerge 一切皆文件 glm4 retry 重试机制加解密 Yakit yaklang 线性代数电商平台 C++软件实战问题排查经验分享 0xfeeefeee 0xcdcdcdcd 动态库加载失败程序启动失败程序运行权限标准用户权限与管理员权限 ISO镜像作为本地源项目部署 ollama api ollama外网访问 AI Agent 字节智能运维服务器正确解析请求体 linuxdeployqt 打包部署程序 appimagetool css3 webview initramfs Linux内核 Grub Unity插件风扇控制软件 WireGuard 异地组网蓝桥杯C++组 mm-wiki搭建 linux搭建mm-wiki mm-wiki搭建与使用 mm-wiki使用 mm-wiki详解 UDP 动静态库大模型推理内存管理实时内核接口优化 Claude Desktop Claude MCP Windows Cli MCP 显卡驱动持久化 GPU持久化显示器行情服务器股票交易速度慢切换股票量化接口股票API接口 solidworks安装终端电路仿真 multisim 硬件工程师硬件工程师学习电路图电路分析仪器仪表 GeneCards OMIM TTD 分子对接 autodock mgltools PDB PubChem resolv.conf HAProxy ABAP 进程间通信解决方案 Echarts图表折线图柱状图异步动态数据可视化效果存储维护 NetApp存储 EMC存储 lighttpd安装 Ubuntu配置 Windows安装服务器优化网络原理 chromium dpi 管道玩游戏弹性服务器 ShapeFile GeoJSON SVN Server tortoise svn VGG网络卷积层池化层 macOS yum换源智能体开发 archlinux kde plasma LVM lvresize 磁盘扩容 pvcreate SystemV 服务器ssl异常解决配置原理分布式账本智能合约信任链共识算法考试 ardunio BLE 安全漏洞信息安全 llamafactory 微调 Pyppeteer autodl 快捷键旋转屏幕自动操作电脑桌面出现linux图标电脑桌面linux图标删除不了电脑桌面Liunx图标删不掉 linux图标删不掉脚本 IP配置 netplan 粘包问题西门子PLC 通讯 fiddler 用户管理全文检索图搜索算法零售搜狗输入法中文输入法 autoware 框架充电桩平台充电桩开源平台 zerotier arkTs java-zookeeper 锁屏不生效 NFC 近场通讯智能门锁数字证书签署证书输入系统桌面快捷方式 openjdk AimRT 录音麦克风权限判断检测录音功能录音文件mp3播放小程序实现录音及播放功能 RecorderManager 解决录音报错播放没声音问题带外管理流量运营新盘添加 partedUtil GRE 星河版券商股票交易接口api 类型特点 RDP Bug解决 Qt platform OpenCV 子系统 7-zip PyQt PySide6 哈希算法 IPv6 IPv6测试 IPv6测速 IPv6检测 IPv6查询 pyside6 界面 servlet 机械臂程序化交易量化交易高频交易 Ubuntu 22.04 算家云算力租赁 IPv4/IPv6双栈双栈技术网路规划设计 ensp综合实验 IPv4过渡IPv6 IPv4与IPv6 支持向量机文件存储服务器组件 macbook 动态规划 postgres Dify重启后重新初始化打不开xxx软件无法检查其是否包含恶意软件免费 GPU训练 c/s 跨域请求 ubuntu安装 linux入门小白 massa sui aptos sei localhost 金仓数据库概述金仓数据库的产品优化提案 element-ui 上传视频并预览视频 vue上传本地视频及进度条功能 vue2选择视频上传到服务器 upload上传视频组件插件批量上传视频限制单个上传视频 Webserver 异步区块链项目飞腾处理器 kubeless post.io 企业邮箱搭建邮箱三次握手海康 rtc termux pthread Python 视频爬取教程 Python 视频爬取 Python 视频教程设备树 hdc 鸿蒙NEXT 物理地址页表虚拟地址 logstash 商用密码产品体系设计规范软件开发源代码管理 #STC8 #STM32

最新资讯
