openvpn2.0.9搭建和windows客户端拨号连接vpn,并用xshell连接机房只有内网的服务器

如果对运维课程感兴趣，可以在b站上、csdn或微信视频号 上搜索我的账号： 运维实战课程，可以关注我，学习更多免费的运维实战技术视频

1.openvpnserver服务器的安装、配置和服务启动：

vpnserver服务器：（双网卡eth0（外网）和eth1（内网））

[root@localhost ~]# ifconfig eth0 |head -3   外网（nat模式）

eth0      Link encap:Ethernet  HWaddr 00:0C:29:E1:54:C6

          inet addr:192.168.43.128  Bcast:192.168.43.255  Mask:255.255.255.0

          inet6 addr: fe80::20c:29ff:fee1:54c6/64 Scope:Link

[root@localhost ~]# ifconfig eth1 |head -3   内网(vmnet2)

eth1      Link encap:Ethernet  HWaddr 00:0C:29:E1:54:D0

          inet addr:172.16.1.28  Bcast:172.16.1.255  Mask:255.255.255.0

          inet6 addr: fe80::20c:29ff:fee1:54d0/64 Scope:Link

[root@localhost ~]# route -n

Kernel IP routing table

Destination     Gateway         Genmask         Flags Metric Ref    Use Iface

172.16.1.0      0.0.0.0         255.255.255.0   U     0      0        0 eth1

192.168.43.0    0.0.0.0         255.255.255.0   U     0      0        0 eth0

169.254.0.0     0.0.0.0         255.255.0.0     U     1002   0        0 eth0

169.254.0.0     0.0.0.0         255.255.0.0     U     1003   0        0 eth1

0.0.0.0         192.168.43.2    0.0.0.0         UG    0      0        0 eth0

正常eth0外网卡：要配置网关，dns等。

内网卡eth1:不配网关。              双网卡时候，网关只配置一个即可。

[root@localhost ~]# ping 172.16.1.17

PING 172.16.1.17 (172.16.1.17) 56(84) bytes of data.

64 bytes from 172.16.1.17: icmp_seq=1 ttl=64 time=1.90 ms

[root@localhost ~]# cat /etc/redhat-release

CentOS release 6.5 (Final)

1)配置vpn服务器时间同步，如果不配，vpn可能不成功。

[root@localhost ~]# /usr/sbin/ntpdate pool.ntp.org

 2 Jun 14:00:50 ntpdate[1729]: step time server 85.199.214.100 offset 1404709.077974 sec

[root@localhost ~]# echo '*/5 * * * * /usr/sbin/ntpdate pool.ntp.org >/dev/null 2>&1' >> /var/spool/cron/root

[root@localhost ~]# crontab -l

*/5 * * * * /usr/sbin/ntpdate pool.ntp.org >/dev/null 2>&1

[root@localhost ~]# mkdir /data/application/openvpn -p

[root@localhost ~]# cd /data/application/openvpn/

[root@localhost openvpn]# rz

上传压缩模块和openvpn软件

[root@localhost openvpn]# ls

lzo-2.03.tar.gz  openvpn-2.0.9.tar.gz

2)安装openvpn之前，先安装lzo压缩模块：

[root@localhost openvpn]# yum -y install gcc gcc-c++

[root@localhost openvpn]# tar -zxf lzo-2.03.tar.gz

[root@localhost openvpn]# ls

lzo-2.03  lzo-2.03.tar.gz  openvpn-2.0.9.tar.gz

[root@localhost openvpn]# cd lzo-2.03

[root@localhost lzo-2.03]# ls

aclocal.m4  AUTHORS   B     ChangeLog   configure     COPYING  examples  INSTALL  Makefile.am  minilzo  README  tests   util

asm         autoconf  BUGS  config.hin  configure.ac  doc      include   lzotest  Makefile.in  NEWS     src     THANKS

[root@localhost lzo-2.03]# ./configure

[root@localhost lzo-2.03]# make

[root@localhost lzo-2.03]# make install

[root@localhost lzo-2.03]# cd ..

[root@localhost openvpn]# ls

lzo-2.03  lzo-2.03.tar.gz  openvpn-2.0.9.tar.gz

3)安装openvpn依赖包openssl* pam-devel

[root@localhost openvpn]# yum -y install openssl*  否则报错：configure: error: OpenSSL Crypto headers not found

[root@localhost openvpn]# rpm -qa openssl*

openssl-static-1.0.1e-57.el6.x86_64

openssl098e-0.9.8e-20.el6.centos.1.x86_64

openssl-1.0.1e-57.el6.x86_64

openssl-devel-1.0.1e-57.el6.x86_64

openssl-perl-1.0.1e-57.el6.x86_64

[root@localhost openvpn]# yum -y install pam-devel    否则报错：configure: error: libpam required but missing

4)安装openvpn：

[root@localhost openvpn]# ls

lzo-2.03  lzo-2.03.tar.gz  openvpn-2.0.9.tar.gz

[root@localhost openvpn]# tar -zxf openvpn-2.0.9.tar.gz

[root@localhost openvpn]# ls

lzo-2.03  lzo-2.03.tar.gz  openvpn-2.0.9  openvpn-2.0.9.tar.gz

[root@localhost openvpn]# cd openvpn-2.0.9

[root@localhost openvpn-2.0.9]# ls

acinclude.m4       COPYRIGHT.GPL     fragment.h         Makefile.in      mtu.h             otime.h        README               socks.h

aclocal.m4         cryptoapi.c       gentoo             makefile.w32     mudp.c            packet_id.c    reliable.c           ssl.c

AUTHORS            cryptoapi.h       gremlin.c          makefile.w32-vc  mudp.h            packet_id.h    reliable.h           ssl.h

base64.c           crypto.c          gremlin.h          manage.c         multi.c           perf.c         route.c              status.c

base64.h           crypto.h          helper.c           manage.h         multi.h           perf.h         route.h              status.h

basic.h            debug             helper.h           management       NEWS              ping.c         sample-config-files  suse

buffer.c           depcomp           init.c             mbuf.c           ntlm.c            ping.h         sample-keys          syshead.h

buffer.h           doclean           init.h             mbuf.h           ntlm.h            ping-inline.h  sample-scripts       tap-win32

ChangeLog          easy-rsa          INSTALL            memcmp.c         occ.c             plugin         schedule.c           t_cltsrv.sh

circ_list.h        errlevel.h        install-sh         memdbg.h         occ.h             plugin.c       schedule.h           thread.c

common.h           error.c           install-win32      misc.c           occ-inline.h      plugin.h       service-win32        thread.h

config.guess       error.h           INSTALL-win32.txt  misc.h           openvpn.8         pool.c         session_id.c         t_lpback.sh

config.h.in        event.c           integer.h          missing          openvpn.c         pool.h         session_id.h         tun.c

config.sub         event.h           interval.c         mroute.c         openvpn.h         PORTS          shaper.c             tun.h

configure          fdmisc.c          interval.h         mroute.h         openvpn-plugin.h  proto.c        shaper.h             win32.c

configure.ac       fdmisc.h          list.c             mss.c            openvpn.spec      proto.h        sig.c                win32.h

config-win32.h     forward.c         list.h             mss.h            openvpn.spec.in   proxy.c        sig.h

config-win32.h.in  forward.h         lzo.c              mtcp.c           options.c         proxy.h        socket.c

contrib            forward-inline.h  lzo.h              mtcp.h           options.h         push.c         socket.h

COPYING            fragment.c        Makefile.am        mtu.c            otime.c           push.h         socks.c

[root@localhost openvpn-2.0.9]# ./configure --with-lzo-headers=/usr/local/include/ --with-lzo-lib=/usr/local/lib

#注意：配置时候需加上压缩包的路径：lzo压缩包，默认编译时候就到了/usr/local下面了。

[root@localhost openvpn-2.0.9]# make

[root@localhost openvpn-2.0.9]# make install

[root@localhost openvpn-2.0.9]# cd

[root@localhost ~]# which openvpn

/usr/local/sbin/openvpn

[root@localhost ~]# ls /usr/local/sbin/openvpn

/usr/local/sbin/openvpn    #执行的脚本命令

5)openvpn server服务上建立CA证书：

进入软件安装目录下面的：/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/

[root@localhost ~]# cd /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/

[root@localhost 2.0]# ls

build-ca     build-key         build-key-server  clean-all      Makefile           pkitool      sign-req

build-dh     build-key-pass    build-req         inherit-inter  openssl-0.9.6.cnf  README       vars

build-inter  build-key-pkcs12  build-req-pass    list-crl       openssl.cnf        revoke-full  whichopensslcnf

[root@localhost 2.0]# cp vars vars.bak

[root@localhost 2.0]# vim vars

…….#最下面5行修改成如下：

export KEY_COUNTRY="CN"

export KEY_PROVINCE="BJ"

export KEY_CITY="Beijing"

export KEY_ORG="oldboy"

export KEY_EMAIL="1441107787@qq.com"

export KEY_OU="oldboy"

[root@localhost 2.0]# tail -6 vars

export KEY_COUNTRY="CN"

export KEY_PROVINCE="BJ"

export KEY_CITY="Beijing"

export KEY_ORG="oldboy"

export KEY_EMAIL="1441107787@qq.com"

export KEY_OU="oldboy"

[root@localhost 2.0]# source vars       #刷新，使得配置生效

NOTE: If you run ./clean-all, I will be doing a rm -rf on /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys

[root@localhost 2.0]# pwd

/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0

[root@localhost 2.0]# ls   #目前还没有keys目录

build-ca     build-key         build-key-server  clean-all      Makefile           pkitool      sign-req  whichopensslcnf

build-dh     build-key-pass    build-req         inherit-inter  openssl-0.9.6.cnf  README       vars

build-inter  build-key-pkcs12  build-req-pass    list-crl       openssl.cnf        revoke-full  vars.bak

[root@localhost 2.0]# ./clean-all   #清空所有的秘钥和证书，重新来，因为是新的环境可以这么操作

[root@localhost 2.0]# ls

build-ca     build-key         build-key-server  clean-all      list-crl           openssl.cnf  revoke-full  vars.bak

build-dh     build-key-pass    build-req         inherit-inter  Makefile           pkitool      sign-req     whichopensslcnf

build-inter  build-key-pkcs12  build-req-pass    keys           openssl-0.9.6.cnf  README       vars

[root@localhost 2.0]# ls keys/

index.txt  serial

[root@localhost 2.0]# ./build-ca

Generating a 1024 bit RSA private key

........................................++++++

.............................................++++++

writing new private key to 'ca.key'

-----

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [CN]:

State or Province Name (full name) [BJ]:

Locality Name (eg, city) [Beijing]:

Organization Name (eg, company) [oldboy]:

Organizational Unit Name (eg, section) [oldboy]:

Common Name (eg, your name or your server's hostname) [oldboy CA]:

Email Address [1441107787@qq.com]:

[root@localhost 2.0]# ls keys/

ca.crt  ca.key  index.txt  serial

6)生成服务器端证书和秘钥key文件：

[root@localhost 2.0]# pwd

/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0

[root@localhost 2.0]# ls

build-ca     build-key         build-key-server  clean-all      list-crl           openssl.cnf  revoke-full  vars.bak

build-dh     build-key-pass    build-req         inherit-inter  Makefile           pkitool      sign-req     whichopensslcnf

build-inter  build-key-pkcs12  build-req-pass    keys           openssl-0.9.6.cnf  README       vars

[root@localhost 2.0]# ./build-key-server server #服务端的秘钥文件给个名字叫server，不是必须要是这个名字，也可其他名字，为了规范，叫server。

Generating a 1024 bit RSA private key

...........++++++

................++++++

writing new private key to 'server.key'

-----

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [CN]:

State or Province Name (full name) [BJ]:

Locality Name (eg, city) [Beijing]:

Organization Name (eg, company) [oldboy]:

Organizational Unit Name (eg, section) [oldboy]:

Common Name (eg, your name or your server's hostname) [server]:

Email Address [1441107787@qq.com]:

Please enter the following 'extra' attributes

to be sent with your certificate request

A challenge password []:123456     #发送证书请求时会要求的一个密码

An optional company name []:oldboy #可选的公司名

Using configuration from /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/openssl.cnf

Check that the request matches the signature

Signature ok

The Subject's Distinguished Name is as follows

countryName           :PRINTABLE:'CN'

stateOrProvinceName   :PRINTABLE:'BJ'

localityName          :PRINTABLE:'Beijing'

organizationName      :PRINTABLE:'oldboy'

organizationalUnitName:PRINTABLE:'oldboy'

commonName            :PRINTABLE:'server'

emailAddress          :IA5STRING:'1441107787@qq.com'

Certificate is to be certified until May 30 06:54:05 2028 GMT (3650 days)

Sign the certificate? [y/n]:y

1 out of 1 certificate requests certified, commit? [y/n]y

Write out database with 1 new entries

Data Base Updated

[root@localhost 2.0]# ls keys/

01.pem  ca.crt  ca.key  index.txt  index.txt.attr  index.txt.old  serial  serial.old  server.crt  server.csr  server.key

7)生成客户端证书和key文件：

[root@localhost 2.0]# pwd

/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0

[root@localhost 2.0]# ls

build-ca     build-key         build-key-server  clean-all      list-crl           openssl.cnf  revoke-full  vars.bak

build-dh     build-key-pass    build-req         inherit-inter  Makefile           pkitool      sign-req     whichopensslcnf

build-inter  build-key-pkcs12  build-req-pass    keys           openssl-0.9.6.cnf  README       vars

[root@localhost 2.0]# ./build-key test

Generating a 1024 bit RSA private key

.....................++++++

.............++++++

writing new private key to 'test.key'

-----

You are about to be asked to enter information that will be incorporated

into your certificate request.

What you are about to enter is what is called a Distinguished Name or a DN.

There are quite a few fields but you can leave some blank

For some fields there will be a default value,

If you enter '.', the field will be left blank.

-----

Country Name (2 letter code) [CN]:

State or Province Name (full name) [BJ]:

Locality Name (eg, city) [Beijing]:

Organization Name (eg, company) [oldboy]:

Organizational Unit Name (eg, section) [oldboy]:

Common Name (eg, your name or your server's hostname) [test]:

Email Address [1441107787@qq.com]:

Please enter the following 'extra' attributes

to be sent with your certificate request

A challenge password []:123456

An optional company name []:oldboy

Using configuration from /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/openssl.cnf

Check that the request matches the signature

Signature ok

The Subject's Distinguished Name is as follows

countryName           :PRINTABLE:'CN'

stateOrProvinceName   :PRINTABLE:'BJ'

localityName          :PRINTABLE:'Beijing'

organizationName      :PRINTABLE:'oldboy'

organizationalUnitName:PRINTABLE:'oldboy'

commonName            :PRINTABLE:'test'

emailAddress          :IA5STRING:'1441107787@qq.com'

Certificate is to be certified until May 30 07:04:31 2028 GMT (3650 days)

Sign the certificate? [y/n]:y

1 out of 1 certificate requests certified, commit? [y/n]y

Write out database with 1 new entries

Data Base Updated

[root@localhost 2.0]# ls keys

01.pem  ca.crt  index.txt       index.txt.attr.old  serial      server.crt  server.key  test.csr

02.pem  ca.key  index.txt.attr  index.txt.old       serial.old  server.csr  test.crt    test.key

8)生成传输进行秘钥交换时用到的交互秘钥协议文件：（该步骤不能省略，否则出错）

[root@localhost 2.0]# pwd

/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0

[root@localhost 2.0]# ls

build-ca     build-key         build-key-server  clean-all      list-crl           openssl.cnf  revoke-full  vars.bak

build-dh     build-key-pass    build-req         inherit-inter  Makefile           pkitool      sign-req     whichopensslcnf

build-inter  build-key-pkcs12  build-req-pass    keys           openssl-0.9.6.cnf  README       vars

[root@localhost 2.0]# ./build-dh

[root@localhost 2.0]# ls keys/

01.pem  ca.crt  dh1024.pem  index.txt.attr      index.txt.old  serial.old  server.csr  test.crt  test.key

02.pem  ca.key  index.txt   index.txt.attr.old  serial         server.crt  server.key  test.csr

9)生成一个防止恶意攻击（如Ddos、Udp port flooding）的文件：ta.key，效果不太好说。

[root@localhost 2.0]# pwd

/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0

[root@localhost 2.0]# openvpn --genkey --secret keys/ta.key

[root@localhost 2.0]# ls keys/

01.pem  ca.crt  dh1024.pem  index.txt.attr      index.txt.old  serial.old  server.csr  ta.key    test.csr

02.pem  ca.key  index.txt   index.txt.attr.old  serial         server.crt  server.key  test.crt  test.key

[root@localhost 2.0]# cd

openvpn服务端几个重要命令解释：脚本路径：/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/

vars脚本：  用来创建环境变量，设置所需要的的变量的脚本。

clean-all脚本： 创建生成ca证书及秘钥文件所需要的文件及目录

build-ca脚本： 生成ca证书（交互）

build-dh脚本： 生成Diffie-Hellman文件（交互）

build-key-server脚本： 生成服务器端秘钥（交互）

build-key脚本： 生成客户端秘钥（交互）

build-key-pass脚本：生成客户端带密码的秘钥（交互）

pkitool脚本： 直接使用vars的环境变量设置，直接生成证书（非交互）

10)vpn配置文件整理：

[root@localhost ~]# mkdir /etc/openvpn

[root@localhost ~]# cp -a /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys/ /etc/openvpn/

[root@localhost ~]# cp -a /data/application/openvpn/openvpn-2.0.9/sample-config-files/server.conf /etc/openvpn/

[root@localhost ~]# cp -a /data/application/openvpn/openvpn-2.0.9/sample-config-files/client.conf /etc/openvpn/

[root@localhost ~]# ls /etc/openvpn/

client.conf  keys  server.conf

[root@localhost ~]# ls /etc/openvpn/keys/

01.pem  ca.crt  dh1024.pem  index.txt.attr      index.txt.old  serial.old  server.csr  ta.key    test.csr

02.pem  ca.key  index.txt   index.txt.attr.old  serial         server.crt  server.key  test.crt  test.key

[root@localhost ~]# cd /etc/openvpn/

[root@localhost openvpn]# ls

client.conf  keys  server.conf

[root@localhost openvpn]# cp server.conf server.conf.bak

[root@localhost openvpn]# grep -vE ";|#|^$" server.conf

port 1194

proto udp

dev tun

ca ca.crt

cert server.crt

dh dh1024.pem

server 10.8.0.0 255.255.255.0

ifconfig-pool-persist ipp.txt

keepalive 10 120

comp-lzo

persist-key

persist-tun

status openvpn-status.log

verb 3

[root@localhost openvpn]# grep -vE ";|#|^$" server.conf > tmp.log

[root@localhost openvpn]# cat tmp.log > server.conf

[root@localhost openvpn]# vim server.conf   #编辑修改，增删后最终结果如下：

local 192.168.43.128

port 52115

proto tcp

dev tun

ca /etc/openvpn/keys/ca.crt

cert /etc/openvpn/keys/server.crt

key /etc/openvpn/keys/server.key

dh /etc/openvpn/keys/dh1024.pem

server 10.8.0.0 255.255.255.0          #vpn server动态分配给vpn client的地址池

push "route 172.16.1.0 255.255.255.0"  #多个内网段就都添加进去（包括其他内网服务器内网段），每个网段一行

ifconfig-pool-persist ipp.txt

keepalive 10 120

comp-lzo

persist-key

persist-tun

status openvpn-status.log

verb 3

client-to-client

duplicate-cn

log /var/log/openvpn.log

[root@localhost openvpn]# cd

解释：

local  192.168.43.128 (vpn外网IP )     #openvpn监听的ip地址，若是*，所有网卡的ip都监听

port  52115 (默认1194)                 #openvpn监听的端口

proto  tcp(默认udp)                    #指定监听的协议，推荐tcp

dev   tun                               #采用的路由模式

ca    /etc/openvpn/keys/ca.crt          #ca证书，可以相对路径（和server.conf在同一个目录），也可绝对路径

cert  /etc/openvpn/keys/server.crt      #服务端的证书，可以相对路径，也可绝对路径

key  /etc/openvpn/keys/server.key       #服务端的秘钥文件，可以相对路径，也可绝对路径

dh   /etc/openvpn/keys/dh1024.pem        #秘钥交换文件

server 10.8.0.0 255.255.255.0            #是客户端拨号后，vpn server动态分配给vpn client的地址池，一般不需更改，不要和任何地址段冲突或重复

push "route 172.16.1.0 255.255.255.0"   #vpn服务端推送到client端的路由，在vpn的客户端上面配置这么一个路由，即vpnserver端的内网网段，多个内网段时，就添加多行，即使vpnserver只有一个内网，但如果有其他内网服务器网段也都添加进去，这样其他服务器才能通过vpn连接

ifconfig-pool-persist ipp.txt

keepalive 10 120                #每10秒ping一次，若是120秒未收到包，即认定客户端断线

comp-lzo                        #开启压缩功能

persist-key                     #当vpn超时后，当重新启动vpn后，保持上一次使用的私钥，而不重新读取私钥

persist-tun                     #通过keepalive检测vpn超时后，当重新启动vpn后，保持tun或者tap设备自动连接状态

status openvpn-status.log       #openvpn日志状态信息

verb 3                          #指定日志文件冗余

client-to-client                #允许拨号的多个vpn client互相通信

duplicate-cn                    #允许多个客户端使用同一个账号连接

log /var/log/openvpn.log        #日志文件

11)调试服务器vpn服务启动环境：

[root@localhost ~]# iptables -I INPUT -p tcp --dport 52115 -j ACCEPT

[root@localhost ~]# /etc/init.d/iptables save

[root@localhost ~]# /etc/init.d/iptables restart

[root@localhost ~]# iptables -nL

Chain INPUT (policy ACCEPT)

target     prot opt source               destination

ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0           tcp dpt:52115

Chain FORWARD (policy ACCEPT)

target     prot opt source               destination

Chain OUTPUT (policy ACCEPT)

target     prot opt source               destination

[root@localhost ~]# setenforce 0  测试是开着也不影响，尽量关掉吧

[root@localhost ~]# vim /etc/sysctl.conf        #开启路由转发

net.ipv4.ip_forward = 1

[root@localhost ~]# sysctl -p

12)启动openvpn服务并检查：

启动方法1：

[root@localhost ~]# /usr/local/sbin/openvpn --config /etc/openvpn/server.conf &   #启动openvpn

[1] 24419

[root@localhost ~]# netstat -anput |grep 52115

tcp        0      0 192.168.43.128:52115        0.0.0.0:*                   LISTEN      24419/openvpn

[root@localhost ~]# ps -ef |grep openvpn

root     24419 23849  0 17:07 pts/1    00:00:00 /usr/local/sbin/openvpn --config /etc/openvpn/server.conf

root     24431 23849  0 17:07 pts/1    00:00:00 grep openvpn

[root@localhost ~]# ifconfig     openvpn启动后，会多一个虚拟网卡tun0

eth0      Link encap:Ethernet  HWaddr 00:0C:29:E1:54:C6

          inet addr:192.168.43.128  Bcast:192.168.43.255  Mask:255.255.255.0

          inet6 addr: fe80::20c:29ff:fee1:54c6/64 Scope:Link

          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1

          RX packets:78038 errors:0 dropped:0 overruns:0 frame:0

          TX packets:30843 errors:0 dropped:0 overruns:0 carrier:0

          collisions:0 txqueuelen:1000

          RX bytes:97192097 (92.6 MiB)  TX bytes:3093244 (2.9 MiB)

eth1      Link encap:Ethernet  HWaddr 00:0C:29:E1:54:D0

          inet addr:172.16.1.28  Bcast:172.16.1.255  Mask:255.255.255.0

          inet6 addr: fe80::20c:29ff:fee1:54d0/64 Scope:Link

          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1

          RX packets:4 errors:0 dropped:0 overruns:0 frame:0

          TX packets:14 errors:0 dropped:0 overruns:0 carrier:0

          collisions:0 txqueuelen:1000

          RX bytes:316 (316.0 b)  TX bytes:916 (916.0 b)

lo        Link encap:Local Loopback

          inet addr:127.0.0.1  Mask:255.0.0.0

          inet6 addr: ::1/128 Scope:Host

          UP LOOPBACK RUNNING  MTU:16436  Metric:1

          RX packets:0 errors:0 dropped:0 overruns:0 frame:0

          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0

          collisions:0 txqueuelen:0

          RX bytes:0 (0.0 b)  TX bytes:0 (0.0 b)

tun0      Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00

          inet addr:10.8.0.1  P-t-P:10.8.0.2  Mask:255.255.255.255

          UP POINTOPOINT RUNNING NOARP MULTICAST  MTU:1500  Metric:1

          RX packets:0 errors:0 dropped:0 overruns:0 frame:0

          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0

          collisions:0 txqueuelen:100

          RX bytes:0 (0.0 b)  TX bytes:0 (0.0 b)

[root@localhost ~]# ps -ef |grep openvpn

root     24419 23849  0 17:07 pts/1    00:00:00 /usr/local/sbin/openvpn --config /etc/openvpn/server.conf

root     24448 23849  0 17:16 pts/1    00:00:00 grep openvpn

[root@localhost ~]# kill -9 24419             #停止openvpn，或者pkill openvpn

[root@localhost ~]# ps -ef |grep openvpn

root     24455 23849  0 17:17 pts/1    00:00:00 grep openvpn

启动方法2：(常规方式启动)

[root@localhost ~]# cp /data/application/openvpn/openvpn-2.0.9/sample-scripts/openvpn.init /etc/init.d/openvpn

[root@localhost ~]# chmod 700 /etc/init.d/openvpn

[root@localhost ~]# chkconfig --add openvpn

[root@localhost ~]# chkconfig --list openvpn

openvpn         0:off 1:off 2:off 3:on 4:on 5:on 6:off

[root@localhost ~]# vim /etc/init.d/openvpn

        # Start every .conf in $work and run .sh if exists

        errors=0

        successes=0

        for c in `/bin/ls server.conf 2>/dev/null`; do #之前默认是*，修改成server，若/etc/openvpn/下只有一个server.conf，此处不改也行

            bn=${c%%.conf}

            if [ -f "$bn.sh" ]; then

                . $bn.sh

            fi

            rm -f $piddir/$bn.pid

            $openvpn --daemon --writepid $piddir/$bn.pid --config $c --cd $work

…..

[root@localhost ~]# /etc/init.d/openvpn start

Starting openvpn:                                          [  OK  ]

[root@localhost ~]# netstat -anput |grep 52115

tcp        0      0 192.168.43.128:52115        0.0.0.0:*                   LISTEN      24529/openvpn

[root@localhost ~]# ps -ef |grep openvpn

root     24529     1  0 17:22 ?        00:00:00 /usr/local/sbin/openvpn --daemon --writepid /var/run/openvpn/server.pid --config server.conf --cd /etc/openvpn

root     24535 23849  0 17:23 pts/1    00:00:00 grep openvpn

[root@localhost ~]# /etc/init.d/openvpn stop

Shutting down openvpn:                                     [  OK  ]

[root@localhost ~]# netstat -anput |grep 52115

无

[root@localhost ~]# ps -ef |grep openvpn

root     24553 23849  0 17:24 pts/1    00:00:00 grep openvpn

[root@localhost ~]# /etc/init.d/openvpn start

Starting openvpn:                                          [  OK  ]

[root@localhost ~]# netstat -anput |grep 52115

tcp        0      0 192.168.43.128:52115        0.0.0.0:*                   LISTEN      24569/openvpn

2.windows安装openvpn客户端并进行远程拨号：（此处安装版本是：openvpn-install-2.4.1-I601.exe也可其他版本）

安装openvpn客户端：openvpn-install-2.4.1-I601略（一直下一步即可）

安装完如下：

配置openvpn 客户端并远程拨号到vpnserver端：

登录openvpn服务端下载客户端相关需要的证书和文件：

[root@localhost ~]# cd /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys/

[root@localhost keys]# ls

01.pem  ca.crt  dh1024.pem  index.txt.attr      index.txt.old  serial.old  server.csr  ta.key    test.csr

02.pem  ca.key  index.txt   index.txt.attr.old  serial         server.crt  server.key  test.crt  test.key

[root@localhost keys]# sz -y ca.crt test.crt test.key   下载到桌面

[root@localhost keys]# sz /etc/openvpn/client.conf  下载到桌面

在openvpn客户端的安装目录的config下面建立一个文件夹：test，如下：（该几个文件只要放在config目录下即可（可递归）），如下图：

根据client.conf（没用，作为对比用）文件，建立一个连接文件文本，以ovpn结尾的文件，内容如下：

客户端开始远程拨号：

双击OpenVPN GUI图标运行软件——右下角vpn图标右击——选择需要连接的vpn名称test（配置了连接多个vpn server时，每个连接的名字就是ovpv文件对应的名字，当配置只连接一个vpn server时候，就默认只有connect，此处是配置了连接多个vpn server时候）——点击connet

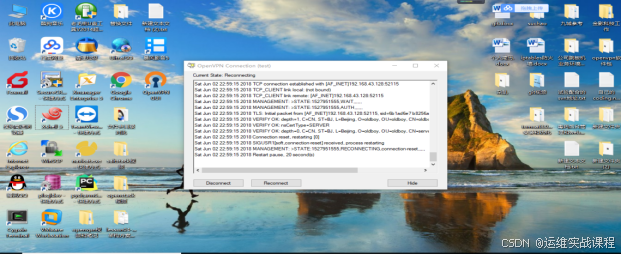

点击connect，如下：

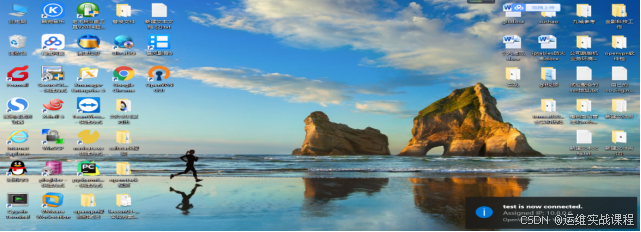

连接成功后，如下图：

使用xshell连接内网服务器：172.16.1.17  内网(vmnet2)

如果断开vpn，则连接不了。

3.在vpnserver服务器上查看某用户是否拨号到该vpn，查看用户使用vpn情况：（判断离职人员是否使用vpn）

[root@localhost ~]# cat /etc/openvpn/openvpn-status.log

OpenVPN CLIENT LIST

Updated,Sat Jun  2 22:02:07 2018

Common Name,Real Address,Bytes Received,Bytes Sent,Connected Since

test,192.168.43.1:63352,8215,4730,Sat Jun  2 21:58:43 2018

ROUTING TABLE

Virtual Address,Common Name,Real Address,Last Ref

10.8.0.6,test,192.168.43.1:63352,Sat Jun  2 21:58:44 2018   #查看vpn给客户端分的IP地址,客户端名字,客户端本地IP

GLOBAL STATS

Max bcast/mcast queue length,0

END

4.内网服务器的基本信息：172.16.1.17  内网(vmnet2)

5.确保客户端远程拨号能成功的前提方法选择： （选择其一即可）

方法1：内网服务器：172.16.1.17 配置内网服务器的网关： 地址为openvpn server的内网地址172.16.1.28，如图：

方法2：内网服务器：172.16.1.17不用 配置内网服务器的网关，而在vpnserver上配置源地址转发规则：

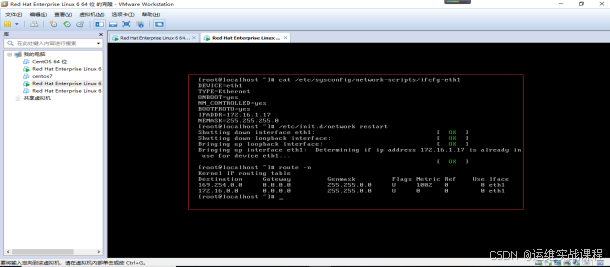

内网服务器如下：

openvpnserver服务器上配置nat转发规则：

[root@localhost ~]# /etc/init.d/iptables start

[root@localhost ~]# iptables -I INPUT -p tcp --dport 52115 -j ACCEPT   1)端口允许

[root@localhost ~]# iptables -nL

Chain INPUT (policy ACCEPT)

target     prot opt source               destination

ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0           tcp dpt:52115

Chain FORWARD (policy ACCEPT)     2)FORWARD 要允许

target     prot opt source               destination

Chain OUTPUT (policy ACCEPT)

target     prot opt source               destination

[root@localhost ~]# iptables -t nat -I POSTROUTING -s 10.8.0.0/24 -j SNAT --to-source 172.16.1.28

#即：源地址转换，源地址是vpn server动态分配给vpn client的地址池的IP转换为vpnserver的内网IP

或：iptables -t nat -I POSTROUTING -s 10.8.0.0/24 -j MASQUERADE  #若后面的地址不固定，可用该条

[root@localhost ~]# iptables -t nat -nL

Chain PREROUTING (policy ACCEPT)

target     prot opt source               destination

Chain POSTROUTING (policy ACCEPT)

target     prot opt source               destination

SNAT       all  --  10.8.0.0/24          0.0.0.0/0           to:172.16.1.28

Chain OUTPUT (policy ACCEPT)

target     prot opt source               destination

[root@localhost ~]# /etc/init.d/iptables save

iptables: Saving firewall rules to /etc/sysconfig/iptables:[  OK  ]

6.openvpn吊销用户证书，禁止该用户拨号到vpnserver

在openvpn server上：

[root@localhost ~]# cd /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/

[root@localhost 2.0]# ls

build-ca     build-key         build-key-server  clean-all      list-crl           openssl.cnf  revoke-full  vars.bak

build-dh     build-key-pass    build-req         inherit-inter  Makefile           pkitool      sign-req     whichopensslcnf

build-inter  build-key-pkcs12  build-req-pass    keys           openssl-0.9.6.cnf  README       vars

[root@localhost 2.0]# ls keys/

01.pem  ca.crt  dh1024.pem  index.txt.attr      index.txt.old  serial.old  server.csr  ta.key    test.csr

02.pem  ca.key  index.txt   index.txt.attr.old  serial         server.crt  server.key  test.crt  test.key

[root@localhost 2.0]# source vars

NOTE: If you run ./clean-all, I will be doing a rm -rf on /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys

[root@localhost 2.0]# ./revoke-full test   #吊销某用户openvpn凭证，防止用户登录vpn

Using configuration from /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/openssl.cnf

error on line 282 of config file '/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/openssl.cnf'

139869544200008:error:0E065068:configuration file routines:STR_COPY:variable has no value:conf_def.c:618:line 282

Using configuration from /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/openssl.cnf

error on line 282 of config file '/data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/openssl.cnf'  #吊销凭证失败

140526850815816:error:0E065068:configuration file routines:STR_COPY:variable has no value:conf_def.c:618:line 282

cat: crl.pem: No such file or directory

test.crt: C = CN, ST = BJ, L = Beijing, O = oldboy, OU = oldboy, CN = test, emailAddress = 1441107787@qq.com

error 3 at 0 depth lookup:unable to get certificate CRL

[root@localhost 2.0]# ls

build-ca     build-key         build-key-server  clean-all      list-crl           openssl.cnf  revoke-full  vars.bak

build-dh     build-key-pass    build-req         inherit-inter  Makefile           pkitool      sign-req     whichopensslcnf

build-inter  build-key-pkcs12  build-req-pass    keys           openssl-0.9.6.cnf  README       vars

[root@localhost 2.0]# vim openssl.cnf

……..#最下面的几行注释掉

[ pkcs11_section ]

#engine_id = pkcs11

#dynamic_path = /usr/lib/engines/engine_pkcs11.so

#MODULE_PATH = $ENV::PKCS11_MODULE_PATH

#PIN = $ENV::PKCS11_PIN

#init = 0

[root@localhost 2.0]# source vars

NOTE: If you run ./clean-all, I will be doing a rm -rf on /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys

[root@localhost 2.0]# ./revoke-full test  #再次执行吊销某用户命令，一定要保证openvpn服务是运行状态，命令才能成功

Using configuration from /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/openssl.cnf

Revoking Certificate 02.

Data Base Updated

Using configuration from /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/openssl.cnf

test.crt: C = CN, ST = BJ, L = Beijing, O = oldboy, OU = oldboy, CN = test, emailAddress = 1441107787@qq.com

error 8 at 0 depth lookup:CRL signature failure

140013267683144:error:0D0C50A1:asn1 encoding routines:ASN1_item_verify:unknown message digest algorithm:a_verify.c:217:

[root@localhost 2.0]# ls

build-ca     build-key         build-key-server  clean-all      list-crl           openssl.cnf  revoke-full  vars.bak

build-dh     build-key-pass    build-req         inherit-inter  Makefile           pkitool      sign-req     whichopensslcnf

build-inter  build-key-pkcs12  build-req-pass    keys           openssl-0.9.6.cnf  README       vars

[root@localhost 2.0]# ls keys/  #吊销用户凭证后，会在keys目录下生成一个crl.pem文件，里面就是注销掉的证书，并没完全注销掉，可恢复

01.pem  ca.crt  crl.pem     index.txt       index.txt.attr.old  revoke-test.pem  serial.old  server.csr  ta.key    test.csr

02.pem  ca.key  dh1024.pem  index.txt.attr  index.txt.old       serial           server.crt  server.key  test.crt  test.key

[root@localhost 2.0]# cat keys/crl.pem

-----BEGIN X509 CRL-----

MIIBYDCByjANBgkqhkiG9w0BAQQFADCBhDELMAkGA1UEBhMCQ04xCzAJBgNVBAgT

AkJKMRAwDgYDVQQHEwdCZWlqaW5nMQ8wDQYDVQQKEwZvbGRib3kxDzANBgNVBAsT

Bm9sZGJveTESMBAGA1UEAxMJb2xkYm95IENBMSAwHgYJKoZIhvcNAQkBFhExNDQx

MTA3Nzg3QHFxLmNvbRcNMTgwNjAyMTQ0MjAzWhcNMTgwNzAyMTQ0MjAzWjAUMBIC

AQIXDTE4MDYwMjE0NDIwM1owDQYJKoZIhvcNAQEEBQADgYEAjossR3MAZAStqlk2

71IG/9NMb/42o6KDLsmlxwWKWmrbRqR1DhkEgnxAo1KgsDERluPOrg7n3Dx648GX

pPNGazMz1GTIvAVfziYydHwc0Ics2lERhvOJ2cDGIzfdSSnWJL0qRxDiH4Ss0mm+

xg3PwUOc/lNCKd2qkhHdDX1yhyE=

-----END X509 CRL-----

[root@localhost 2.0]# cat keys/index.txt    #再次确认该用户吊销，里面是R的状态表示该用户吊销

V 280530065405Z 01 unknown /C=CN/ST=BJ/L=Beijing/O=oldboy/OU=oldboy/CN=server/emailAddress=1441107787@qq.com

R 280530070431Z 180602144203Z 02 unknown /C=CN/ST=BJ/L=Beijing/O=oldboy/OU=oldboy/CN=test/emailAddress=1441107787@qq.com

为了彻底吊销该用户凭证，需要在openvpn的配置文件server.conf中添加：

[root@localhost 2.0]# echo "crl-verify /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys/crl.pem" >> /etc/openvpn/server.conf

[root@localhost 2.0]# tail -2 /etc/openvpn/server.conf

log /var/log/openvpn.log

crl-verify /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys/crl.pem

[root@localhost 2.0]# /etc/init.d/openvpn stop

[root@localhost 2.0]# ps -ef |grep openvpn

root     25725  1171  0 22:54 pts/0    00:00:00 grep openvpn

[root@localhost 2.0]# /etc/init.d/openvpn start

[root@localhost 2.0]# ps -ef |grep openvpn

root     25741     1  0 22:54 ?        00:00:00 /usr/local/sbin/openvpn --daemon --writepid /var/run/openvpn/server.pid --config server.conf --cd /etc/openvpn

root     25744  1171  0 22:54 pts/0    00:00:00 grep openvpn

此时windows客户端不能用test用户连接openvpn了：

点击connect后，无法连接，如下：

xshell也连接不上内网服务器：172.16.1.17

7.吊销用户的再次重新启用，恢复用户拨号到vpnserver

[root@localhost ~]# vim /etc/openvpn/server.conf

……..#最后添加的这行注释

#crl-verify /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys/crl.pem

[root@localhost ~]# tail -3 /etc/openvpn/server.conf

duplicate-cn

log /var/log/openvpn.log

#crl-verify /data/application/openvpn/openvpn-2.0.9/easy-rsa/2.0/keys/crl.pem

[root@localhost ~]# /etc/init.d/openvpn stop

[root@localhost ~]# /etc/init.d/openvpn start

[root@localhost ~]# netstat -anptu |grep 52115

tcp        0      0 192.168.43.128:52115        0.0.0.0:*                   LISTEN      25815/openvpn

windows客户端重新连接openvpn：

点击connect，如下：

用xshell连接内网服务器：172.16.1.17 ：能连接到内网服务器

如果对运维课程感兴趣，可以在b站上、csdn或微信视频号 上搜索我的账号： 运维实战课程，可以关注我，学习更多免费的运维实战技术视频
